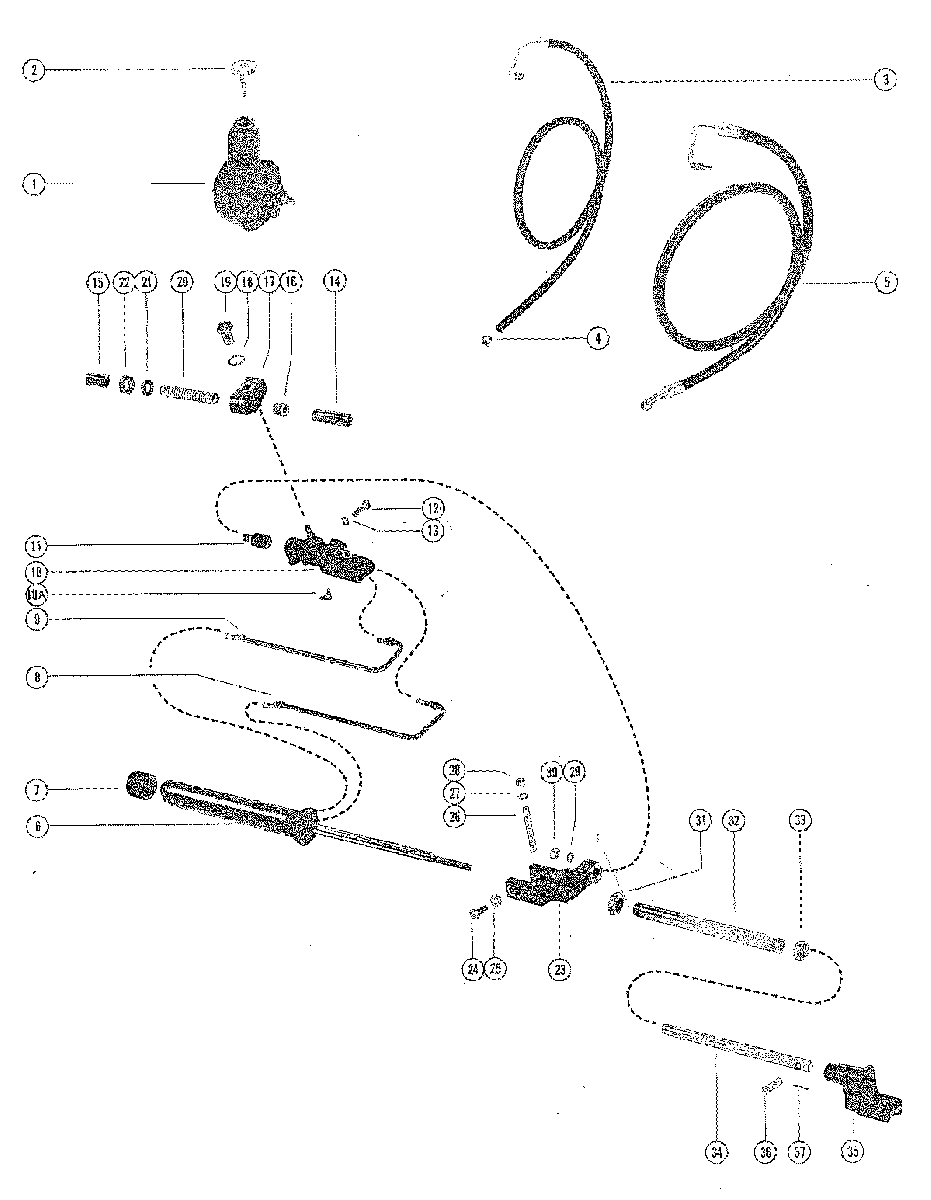

POWER STEERING COMPONENTS(WITH HOSES) для Mercruiser - 225-S (4 BBL.)FORD 302 V-8 1973-1974 3385721 THRU 4166999

№

Артикул

Название
1

90507A3 HYDRAULIC PUMP ASSEMBLY, POWER STEERING

HYDRAULIC PUMP ASSEMBLY, POWER STEERING
2

19-39924 CAP, FILLER - HYDRAULIC PUMP

CAP, FILLER - HYDRAULIC PUMP
3

32-9884339 HOSE, RETURN - POWER STEERING (72")
SERIAL 00000000-03386120

HOSE, RETURN - POWER STEERING (72")
SERIAL 00000000-03386120
3

32-9884339 HOSE, RETURN - POWER STEERING (46")
SERIAL 03523080-09999999

HOSE, RETURN - POWER STEERING (46")
SERIAL 03523080-09999999
3

65231 HOSE, RETURN - POWER STEERING (26")
SERIAL 03523080-09999999

HOSE, RETURN - POWER STEERING (26")
SERIAL 03523080-09999999
4

54-815504206 CLAMP, HOSE TO HYDRAULIC PUMP

CLAMP, HOSE TO HYDRAULIC PUMP
5

32-55116 HOSE, PRESSURE - POWER STEERING (72")

HOSE, PRESSURE - POWER STEERING (72")
6

57969A12 CYLINDER, BOOSTER - POWER STEERING

CYLINDER, BOOSTER - POWER STEERING
7

26059 CAP, RUBBER - BOOSTER CYLINDER

CAP, RUBBER - BOOSTER CYLINDER
8

32-57633 TUBE, EXTENDING - POWER STEERING STARBOARD MOUNTING

TUBE, EXTENDING - POWER STEERING STARBOARD MOUNTING
9

32-57634 TUBE, RETRACTING - POWER STEERING STARBOARD MOUNTING

TUBE, RETRACTING - POWER STEERING STARBOARD MOUNTING
8

32-57632 TUBE, EXTENDING - POWER STEERING PORT MOUNTING

TUBE, EXTENDING - POWER STEERING PORT MOUNTING
9

32-57631 TUBE, RETRACTING - POWER STEERING PORT MOUNTING

TUBE, RETRACTING - POWER STEERING PORT MOUNTING
10

816458A1 VALVE, POWER STEERING

VALVE, POWER STEERING
10A

22-67305 FITTING, GREASE - POWER VALVE

FITTING, GREASE - POWER VALVE
11

16-55109T STUD, ADAPTOR - POWER STEERING VALVE

STUD, ADAPTOR - POWER STEERING VALVE
12

10-37612 SCREW, CLAMPING (1 1/4")

SCREW, CLAMPING (1 1/4")
13

13-35048 LOCKWASHER, CLAMPING SCREW

LOCKWASHER, CLAMPING SCREW
14

23-60652 SLEEVE, ADJUSTING - CABLE GUIDE TUBE

SLEEVE, ADJUSTING - CABLE GUIDE TUBE
15

64414 GUIDE, CABLE GUIDE TUBE
SERIAL 00000000-03386120

GUIDE, CABLE GUIDE TUBE
SERIAL 00000000-03386120
15

64414 GUIDE, CABLE GUIDE TUBE
SERIAL 03523080-09999999

GUIDE, CABLE GUIDE TUBE
SERIAL 03523080-09999999
16

23-60773 SLEEVE, CABLE GUIDE TUBE

SLEEVE, CABLE GUIDE TUBE
17

55110T ADAPTOR, CABLE GUIDE TUBE (DUAL)

ADAPTOR, CABLE GUIDE TUBE (DUAL)
18

13-20897 LOCKWASHER, DUAL ADAPTOR NUT

LOCKWASHER, DUAL ADAPTOR NUT
19

11-55111 NUT, DUAL ADAPTOR TO POWER STEERING VALVE

NUT, DUAL ADAPTOR TO POWER STEERING VALVE
20

32-55112 TUBE, CABLE GUIDE

TUBE, CABLE GUIDE
21

12-37985 WASHER, CABLE GUIDE TUBE

WASHER, CABLE GUIDE TUBE
22

11-8M0041651 NUT, CABLE GUIDE TUBE

NUT, CABLE GUIDE TUBE
23

57286 BRACKET, MOUNTING - TRANSOM PLATE

BRACKET, MOUNTING - TRANSOM PLATE
24

10-31832 SCREW, MOUNTING BRACKET TO TRANSOM PLATE (1")

SCREW, MOUNTING BRACKET TO TRANSOM PLATE (1")
25

13-31848 LOCKWASHER, MOUNTING BRACKET SCREW

LOCKWASHER, MOUNTING BRACKET SCREW
26

10-57968 SCREW, ADJUSTING - MOUNTING BRACKET (3")

SCREW, ADJUSTING - MOUNTING BRACKET (3")
27

13-35048 LOCKWASHER, ADJUSTING SCREW

LOCKWASHER, ADJUSTING SCREW
28

11-46335 NUT, ADJUSTING SCREW

NUT, ADJUSTING SCREW
29

12-20959 WASHER, VALVE ADAPTOR STUD

WASHER, VALVE ADAPTOR STUD
30

11-898832 NUT, VALVE ADAPTOR STUD

NUT, VALVE ADAPTOR STUD
31

11-32882 NUT, MOUNTING TUBE

NUT, MOUNTING TUBE
32

57971 TUBE, MOUNTING - BOOSTER ROD EXTENSION

TUBE, MOUNTING - BOOSTER ROD EXTENSION
33

11-55983 NUT, JAM - MOUNTING TUBE

NUT, JAM - MOUNTING TUBE
34

57970 EXTENSION, CYLINDER BOOSTER ROD

EXTENSION, CYLINDER BOOSTER ROD
35

87854T ADAPTOR, ROD END (STARBOARD MOUNTING)

ADAPTOR, ROD END (STARBOARD MOUNTING)
35

66627 ADAPTOR, ROD END (PORT MOUNTING)

ADAPTOR, ROD END (PORT MOUNTING)
36

17-52798 PIN, CLEVIS - STEERING CABLE AND CLEVIS ATTACHING

PIN, CLEVIS - STEERING CABLE AND CLEVIS ATTACHING
37

18-46950 COTTER PIN, CLEVIS PIN RETAINING

COTTER PIN, CLEVIS PIN RETAINING
