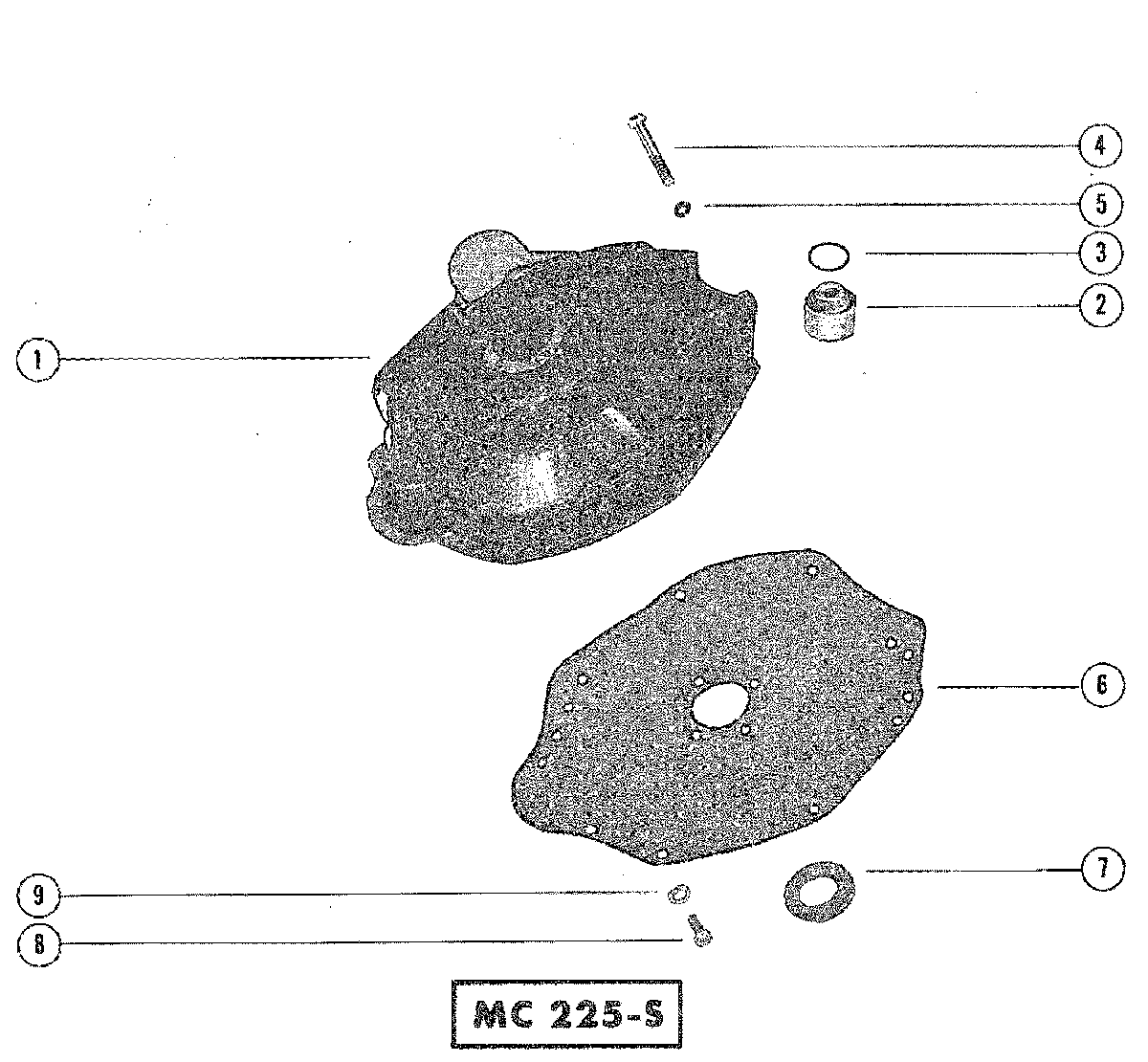

FLYWHEEL HOUSING (MC 225-S) для Mercruiser - 225-S (4 BBL.)FORD 302 V-8 1973-1974 3385721 THRU 4166999

  • №
    Артикул
    Название
  • 1
    59823A1 FLYWHEEL HOUSING ASSEMBLY
    FLYWHEEL HOUSING ASSEMBLY
  • 2
    8M0103028 MOUNT, RUBBER - FLYWHEEL HOUSING
    MOUNT, RUBBER - FLYWHEEL HOUSING
  • 3
    23-99322 SPACER, RUBBER MOUNT - FLYWHEEL HOUSING
    SPACER, RUBBER MOUNT - FLYWHEEL HOUSING
  • 4
    10-47462 SCREW, FLYWHEEL HOUSING ATTACHING (1 1/4")
    SCREW, FLYWHEEL HOUSING ATTACHING (1 1/4")
  • 4
    10-54847 SCREW, FLYWHEEL HOUSING ATTACHING (2")
    SCREW, FLYWHEEL HOUSING ATTACHING (2")
  • 5
    13-32993 LOCKWASHER, FLYWHEEL HOUSING SCREW (7/16")
    LOCKWASHER, FLYWHEEL HOUSING SCREW (7/16")
  • 5
    13-30381 LOCKWASHER, FLYWHEEL HOUSING SCREW - SPECIAL (7/16")
    LOCKWASHER, FLYWHEEL HOUSING SCREW - SPECIAL (7/16")
  • 6
    68651 PLATE, COVER - REAR
    PLATE, COVER - REAR
  • 7
    27-56152 SEAL, REAR COVER PLATE
    SEAL, REAR COVER PLATE
  • 8
    10-25299 SCREW, FLYWHEEL HOUSING ATTACHING (3/4")
    SCREW, FLYWHEEL HOUSING ATTACHING (3/4")
  • 9
    13-39107 LOCKWASHER, FLYWHEEL HOUSING SCREW (5/16")
    LOCKWASHER, FLYWHEEL HOUSING SCREW (5/16")
