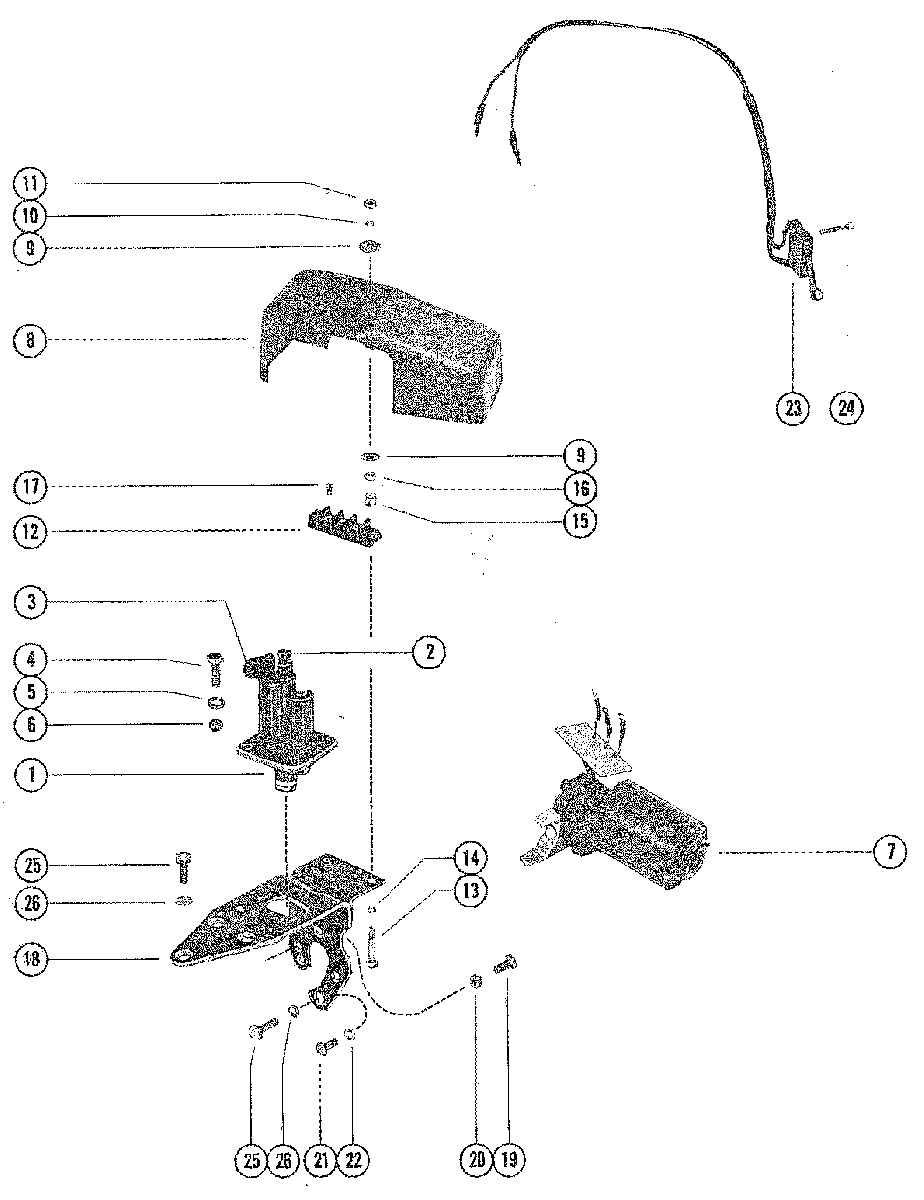

REVERSE LOCK VALVE AND SHIFT ACTUATOR (STERN DRIVE) для Mercruiser - 225-S (4 BBL.)FORD 302 V-8 1973-1974 3385721 THRU 4166999

  • №
    Артикул
    Название
  • 1
    54951A2 REVERSE LOCK VALVE ASSEMBLY
    REVERSE LOCK VALVE ASSEMBLY
  • 2
    22-48166 FITTING, STRAIGHT - REVERSE LOCK VALVE
    FITTING, STRAIGHT - REVERSE LOCK VALVE
  • 3
    22-52666 ELBOW, REVERSE LOCK VALVE
    ELBOW, REVERSE LOCK VALVE
  • 4
    10-22485 SCREW, REVERSE LOCK VALVE TO CONTROL VALVE (3/4")
    SCREW, REVERSE LOCK VALVE TO CONTROL VALVE (3/4")
  • 5
    12-20583 WASHER, REVERSE LOCK VALVE SCREW
    WASHER, REVERSE LOCK VALVE SCREW
  • 6
    11-20184 NUT, REVERSE LOCK VALVE SCREW
    NUT, REVERSE LOCK VALVE SCREW
  • 7
    69392A4 SHIFT ACTUATOR ASSEMBLY (SEE PAGE 57 FOR BREAKDOWN)
    SHIFT ACTUATOR ASSEMBLY (SEE PAGE 57 FOR BREAKDOWN)
  • 8
    63038 COVER, SHIFT ACTUATOR
    COVER, SHIFT ACTUATOR
  • 9
    12-22887 WASHER, TERMINAL BLOCK AND COVER SCREW
    WASHER, TERMINAL BLOCK AND COVER SCREW
  • 10
    13-26996 LOCKWASHER, TERMINAL BLOCK AD COVER SCREW
    LOCKWASHER, TERMINAL BLOCK AD COVER SCREW
  • 11
    11-68219 NUT, TERMINAL BLOCK AND COVER SCREW
    NUT, TERMINAL BLOCK AND COVER SCREW
  • 12
    86-43454 TERMINAL BLOCK, MOUNTING BRACKET
    TERMINAL BLOCK, MOUNTING BRACKET
  • 13
    10-73656 SCREW, TERMINAL BLOCK AND COVER TO BRACKET (1 3/8")
    SCREW, TERMINAL BLOCK AND COVER TO BRACKET (1 3/8")
  • 14
    13-26996 LOCKWASHER, TERMINAL BLOCK AND COVER SCREW
    LOCKWASHER, TERMINAL BLOCK AND COVER SCREW
  • 15
    23-61526 SPACER, TERMINAL BLOCK AND COVER SCREW
    SPACER, TERMINAL BLOCK AND COVER SCREW
  • 16
    11-24656 NUT, TERMINAL BLOCK AND COVER SCREW
    NUT, TERMINAL BLOCK AND COVER SCREW
  • 17
    10-36046 SCREW, HARNESS TO TERMINAL BLOCK (1/4")
    SCREW, HARNESS TO TERMINAL BLOCK (1/4")
  • 18
    85821A1 BRACKET ASSEMBLY, MOUNTING - SHIFT ACTUATOR
    BRACKET ASSEMBLY, MOUNTING - SHIFT ACTUATOR
  • 19
    10-69028 SCREW, STOP (3/4")
    SCREW, STOP (3/4")
  • 20
    11-20184 NUT, STOP SCREW
    NUT, STOP SCREW
  • 21
    10-34290 SCREW, SHIFT ACTUATOR TO MOUNTING BRACKET (5/8")
    SCREW, SHIFT ACTUATOR TO MOUNTING BRACKET (5/8")
  • 22
    13-26992 LOCKWASHER, SHIFT ACTUATOR SCREW
    LOCKWASHER, SHIFT ACTUATOR SCREW
  • 23
    39670A10 SWITCH ASSEMBLY, CUT OUT
    SWITCH ASSEMBLY, CUT OUT
  • 24
    10-30902 SCREW, SWITCH TO CONTROL VALVE CAP (3/4")
    SCREW, SWITCH TO CONTROL VALVE CAP (3/4")
  • 25
    10-25299 SCREW, MOUNTING BRACKET TO CONTROL VALVE (3/4")
    SCREW, MOUNTING BRACKET TO CONTROL VALVE (3/4")
  • 26
    13-39107 LOCKWASHER, CONTROL VALVE BRACKET SCREW
    LOCKWASHER, CONTROL VALVE BRACKET SCREW
