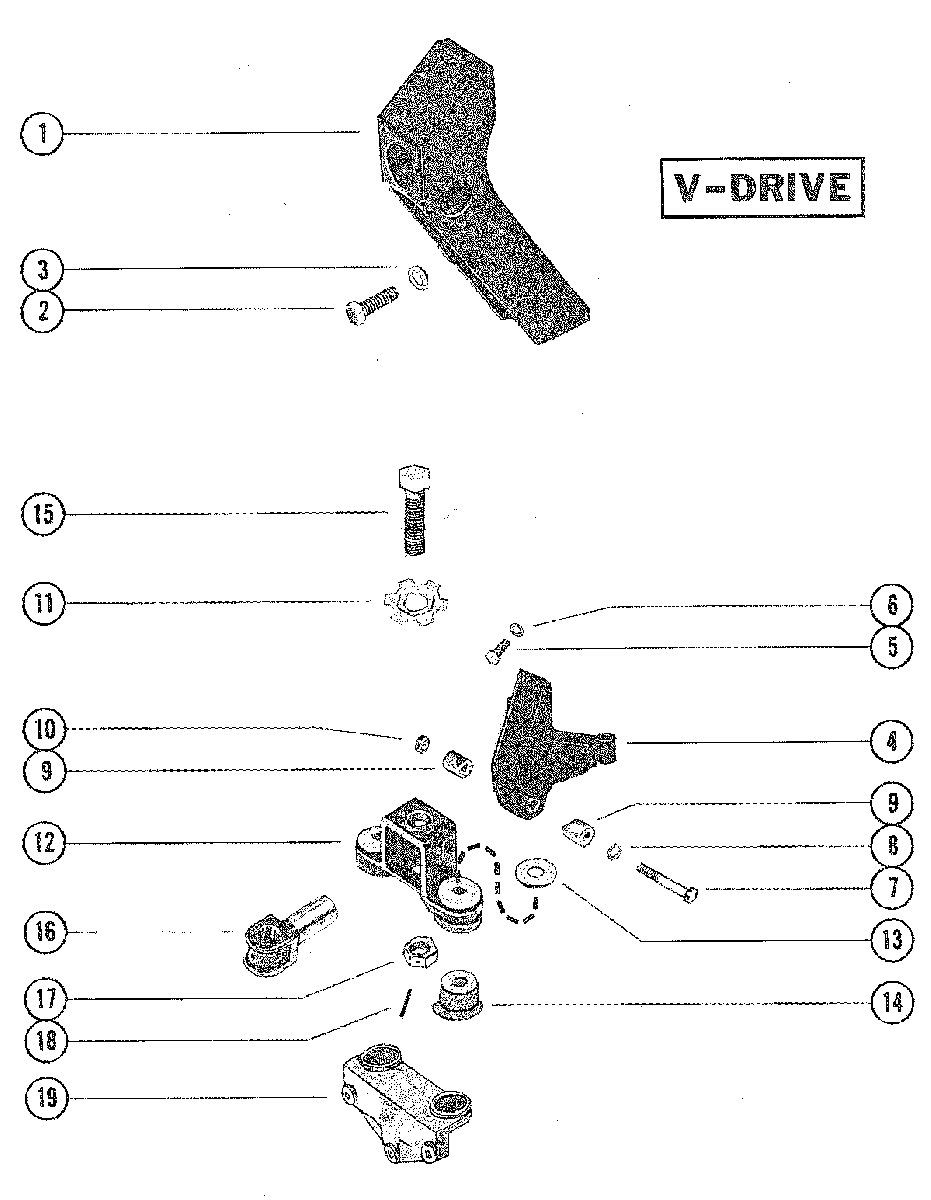

TRANSMISSION AND ENGINE MOUNTING (V-DRIVE) для Mercruiser - 225-S (4 BBL.)FORD 302 V-8 1973-1974 3385721 THRU 4166999
-
№АртикулНазвание
-
162285 BRACKET, MOUNTING (REAR)BRACKET, MOUNTING (REAR)
-
210-47462 SCREW, MOUNTING BRACKET TO TRANSMISSION (1 1/4")SCREW, MOUNTING BRACKET TO TRANSMISSION (1 1/4")
-
313-32993 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
461815 BRACKET, MOUNTING (FRONT)BRACKET, MOUNTING (FRONT)
-
510-47724 SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (3")SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (3")
-
613-32993 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
710-47654 SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
-
813-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREWLOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
-
954-47528 CLAMP, ADJUSTING TRUNNION SCREWCLAMP, ADJUSTING TRUNNION SCREW
-
1011-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREWNUT, CLAMP ADJUSTING TRUNNION SCREW
-
1114-48467 TAB WASHER, ADJUSTING TRUNNION SCREWTAB WASHER, ADJUSTING TRUNNION SCREW
-
1252139A4 BRACKET ASSEMBLY, MOUNTING - FRONT AND REARBRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
-
1312-48611 WASHER, MOUNTING BRACKETWASHER, MOUNTING BRACKET
-
1447656 MOUNT, MOUNTING BRACKETMOUNT, MOUNTING BRACKET
-
1510-52156 SCREW, ADJUSTING TRUNNION (4 1/2")SCREW, ADJUSTING TRUNNION (4 1/2")
-
1647518 TRUNNION, ADJUSTING - MOUNTING BRACKETTRUNNION, ADJUSTING - MOUNTING BRACKET
-
1711-47525 NUT, JAM - ADJUSTING TRUNNION SCREWNUT, JAM - ADJUSTING TRUNNION SCREW
-
1817-22116 PIN, ROLL - JAM NUTPIN, ROLL - JAM NUT
-
1962255 BRACKET, MOUNTING - ENGINEBRACKET, MOUNTING - ENGINE
-
1927-65577 GASKET, CARBURETORGASKET, CARBURETOR
-
1916-29208 STUD, CARBURETOR MOUNTING (2 1/8")STUD, CARBURETOR MOUNTING (2 1/8")
-
1916-30669 STUD, CARBURETOR MOUNTING (3 1/4")STUD, CARBURETOR MOUNTING (3 1/4")
-
1955241T GAUGE, OIL LEVEL (DIPSTICK)GAUGE, OIL LEVEL (DIPSTICK)
-
1960212A1 EXHAUST ELBOW RISEREXHAUST ELBOW RISER
-
1916-49545 STUD, EXHAUST ELBOW TO RISER (1 3/4")STUD, EXHAUST ELBOW TO RISER (1 3/4")
-
1922-328022 PLUG, EXHAUST ELBOW RISERPLUG, EXHAUST ELBOW RISER
-
1922-36305T ELBOW, EXHAUST RISERELBOW, EXHAUST RISER
-
1916-60607 STUD, MANIFOLD TO RISER (2 1/4")STUD, MANIFOLD TO RISER (2 1/4")
-
1911-49838 NUT, RISER TO EXHAUST ELBOW STUDNUT, RISER TO EXHAUST ELBOW STUD
-
1913-35048 LOCKWASHER, RISER TO EXHAUST ELBOW STUDLOCKWASHER, RISER TO EXHAUST ELBOW STUD
-
1927-997772 GASKET, ELBOW TO RISERGASKET, ELBOW TO RISER
