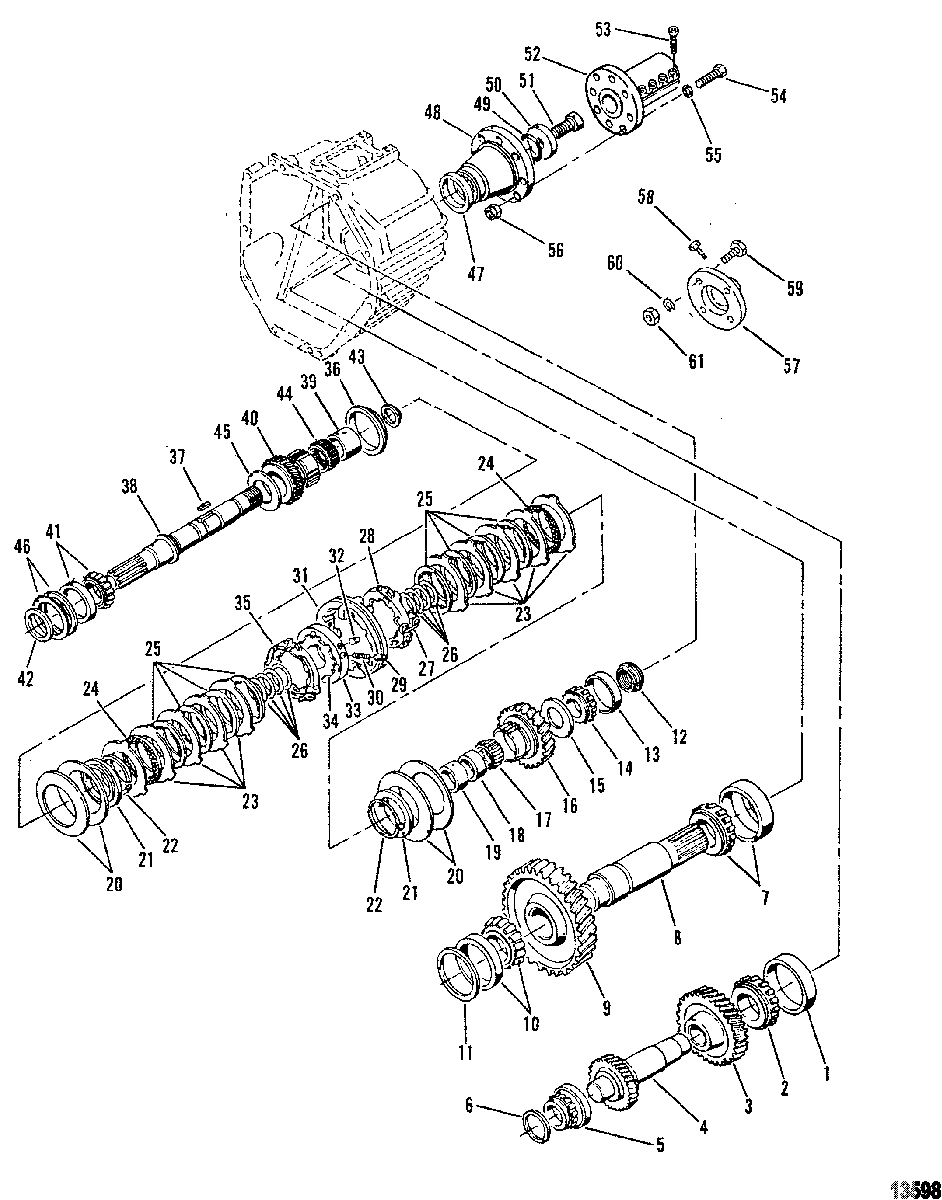

Transmission(Inline) (Internal Component) Continued для Mercruiser - 530 D-TA (BRAVO & MIE) VM 183 I/L5 1989 0B993002 THRU 0D725151

  • №
    Артикул
    Название
  • -
    801763547 TRANSMISSION (1.5:1 Ratio)
    TRANSMISSION (1.5:1 Ratio)
  • -
    801763548 TRANSMISSION (2.0:1 Ratio)
    TRANSMISSION (2.0:1 Ratio)
  • -
    801763549 TRANSMISSION (3.0:1 Ratio)
    TRANSMISSION (3.0:1 Ratio)
  • 28
    801761985 DISC CARRIER
    DISC CARRIER
  • 29
    17-801328202 PIN, Retaining
    PIN, Retaining
  • 30
    17-801328202 PIN, Retaining
    PIN, Retaining
  • 31
    801328205 SLEEVE
    SLEEVE
  • 32
    17-801328203 PIN
    PIN
  • 33
    801761980 SLEEVE
    SLEEVE
  • 34
    30-809986298 BALL
    BALL
  • 35
    801761979 DISC CARRIER
    DISC CARRIER
  • 36
    801761939 RING (1.5:1 And 2.0:1 Ratio)
    RING (1.5:1 And 2.0:1 Ratio)
  • 36
    801761940 RING (3.0:1 Ratio)
    RING (3.0:1 Ratio)
  • 37
    28-801328180 KEY
    KEY
  • 38
    801761947 DRIVESHAFT
    DRIVESHAFT
  • 39
    23-801761981 SPACER SOCKET
    SPACER SOCKET
  • 40
    43-801761971 GEAR (1.5:1 Ratio)
    GEAR (1.5:1 Ratio)
  • 40
    43-801761972 GEAR (2.0:1 Ratio)
    GEAR (2.0:1 Ratio)
  • 40
    43-801761973 GEAR (3.0:1 Ratio)
    GEAR (3.0:1 Ratio)
  • 41
    31-809985082 BEARING, Roller
    BEARING, Roller
  • 42
    25-801761946 O-RING
    O-RING
  • 43
    23-801761991 SPACER
    SPACER
  • 44
    31-801761944 BEARING, Roller
    BEARING, Roller
  • 45
    12-801761987 THRUST WASHER
    THRUST WASHER
  • 46
    15-801328222 SHIM (.10MM)
    SHIM (.10MM)
  • 46
    15-801328223 SHIM (.15MM)
    SHIM (.15MM)
  • 46
    15-801328224 SHIM (.30MM)
    SHIM (.30MM)
  • 46
    15-801328225 SHIM (.50MM)
    SHIM (.50MM)
  • 46
    15-801328226 SHIM (1.00MM)
    SHIM (1.00MM)
  • 47
    25-801761948 O-RING
    O-RING
  • 48
    801761936 FLANGE
    FLANGE
  • 49
    25-801761949 O-RING
    O-RING
  • 50
    12-801761950 WASHER
    WASHER
  • 51
    801991398 SCREW
    SCREW
  • 52
    19559A1 FLANGE (30MM) Use With Metric Shaft
    FLANGE (30MM) Use With Metric Shaft
  • 52
    19560A1 FLANGE (30MM) Use With Metric Shaft
    FLANGE (30MM) Use With Metric Shaft
  • 52
    19561A1 FLANGE (40MM) Use With Metric Shaft
    FLANGE (40MM) Use With Metric Shaft
  • 52
    19562A1 FLANGE (45MM) Use With Metric Shaft
    FLANGE (45MM) Use With Metric Shaft
  • 53
    10-4007640 SCREW, Use With Metric Shaft
    SCREW, Use With Metric Shaft
  • 54
    10-40001260 SCREW, (M12 x 45), Use With Metric Shaft
    SCREW, (M12 x 45), Use With Metric Shaft
  • 55
    13-400249 LOCKWASHER, Use With Metric Shaft
    LOCKWASHER, Use With Metric Shaft
  • 56
    11-402016 NUT, Use With Metric Shaft
    NUT, Use With Metric Shaft
  • 57
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00) (1.00") Use With English Shaft
    FLANGE ASSEMBLY, (5.00 x 1.00) (1.00") Use With English Shaft
  • 57
    79476A2 FLANGE ASSEMBLY, (5.00 x 1.125) (1.125") Use With English Shaft
    FLANGE ASSEMBLY, (5.00 x 1.125) (1.125") Use With English Shaft
  • 57
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25) (1.250") Use With English Shaft
    FLANGE ASSEMBLY, (5.00 x 1.25) (1.250") Use With English Shaft
  • 57
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375) (1.375") Use With English Shaft
    FLANGE ASSEMBLY, (5.00 x 1.375) (1.375") Use With English Shaft
  • 57
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50) (1.50") Use With English Shaft
    FLANGE ASSEMBLY, (5.00 x 1.50) (1.50") Use With English Shaft
  • 57
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75) (1.750") Use With English Shaft
    FLANGE ASSEMBLY, (5.00 x 1.75) (1.750") Use With English Shaft
  • 57
    79476A7 FLANGE ASSEMBLY, (5.00 x 2.00) (2.00") Use With English Shaft
    FLANGE ASSEMBLY, (5.00 x 2.00) (2.00") Use With English Shaft
  • 58
    10-60171 SCREW, (.375-16 x 1.250), Use With English Shaft
    SCREW, (.375-16 x 1.250), Use With English Shaft
  • 58
    10-60169 SCREW, (.375-16 x .750), Use With English Shaft
    SCREW, (.375-16 x .750), Use With English Shaft
  • 59
    10-805159 SCREW, (.437-20 x 1.500), Use With English Shaft
    SCREW, (.437-20 x 1.500), Use With English Shaft
  • 60
    13-32993 LOCKWASHER, (.437), Use With English Shaft
    LOCKWASHER, (.437), Use With English Shaft
  • 61
    11-22024 NUT, (.437-14), Use With English Shaft
    NUT, (.437-14), Use With English Shaft
