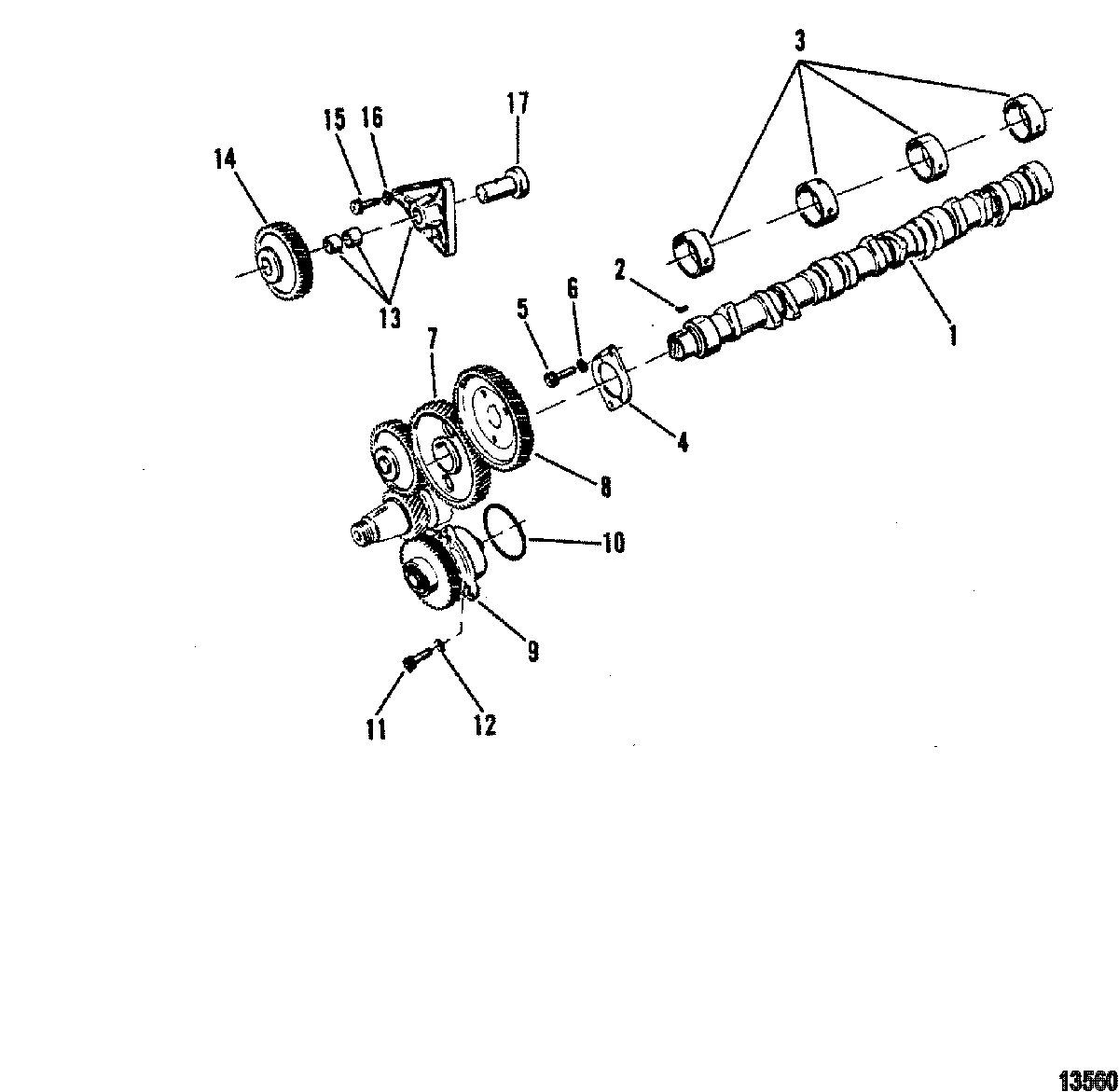

Camshaft для Mercruiser - 530 D-TA (BRAVO & MIE) VM 183 I/L5 1989 0B993002 THRU 0D725151

  • №
    Артикул
    Название
  • 1
    480-801763696 CAMSHAFT
    CAMSHAFT
  • 1
    487-816798 CAMSHAFT
    CAMSHAFT
  • 2
    28-801331735 KEY
    KEY
  • 3
    23-855461 BUSHING, Standard
    BUSHING, Standard
  • 3
    23-855461 BUSHING, Standard
    BUSHING, Standard
  • 3
    23-855461 BUSHING (.25 MM)
    BUSHING (.25 MM)
  • 4
    801331733 PLATE, Cam Guide
    PLATE, Cam Guide
  • 5
    10-896332013 SCREW, (M8 x 18)
    SCREW, (M8 x 18)
  • 6
    12-879194141 LOCKWASHER
    LOCKWASHER
  • 7
    43-854085 GEAR, Camshaft
    GEAR, Camshaft
  • 8
    43-811414 GEAR
    SN# 00993834 & Below
    GEAR
    SN# 00993834 & Below
  • 8
    43-816193 GEAR, Injector Pump
    SN# 00993835 & Up
    GEAR, Injector Pump
    SN# 00993835 & Up
  • 9
    801333406 PUMP, Oil, Early Models
    (Use With O-Ring P/N 801333412)
    PUMP, Oil, Early Models
    (Use With O-Ring P/N 801333412)
  • 9
    854087 PUMP, Oil, Later Models
    (Do Not Use O-Ring) (See Parts Bulletin No. 2001-7)
    PUMP, Oil, Later Models
    (Do Not Use O-Ring) (See Parts Bulletin No. 2001-7)
  • 10
    25-801333412 O-RING
    (Use With Oil Pump P/N 801333406)
    O-RING
    (Use With Oil Pump P/N 801333406)
  • 11
    10-896332013 SCREW, (M8 x 18)
    SCREW, (M8 x 18)
  • 12
    13-811460 LOCKWASHER
    LOCKWASHER
  • 13
    43-801333400 BASE PLATE
    BASE PLATE
  • 14
    43-888750 GEAR
    GEAR
  • 15
    10-896332013 SCREW, (M8 x 18)
    SCREW, (M8 x 18)
  • 16
    12-809931660 WASHER
    WASHER
  • 17
    801333402 AXLE, Rear
    AXLE, Rear
  • -
    27-898300008 GASKET SET
    (Quantities: (5 CYL) - 1; (6 CYL) - 0)
    GASKET SET
    (Quantities: (5 CYL) - 1; (6 CYL) - 0)
  • -
    27-822570A1 GASKET SET, Overhaul
    (Quantities: (5 CYL) - 0; (6 CYL) - 1)
    GASKET SET, Overhaul
    (Quantities: (5 CYL) - 0; (6 CYL) - 1)
