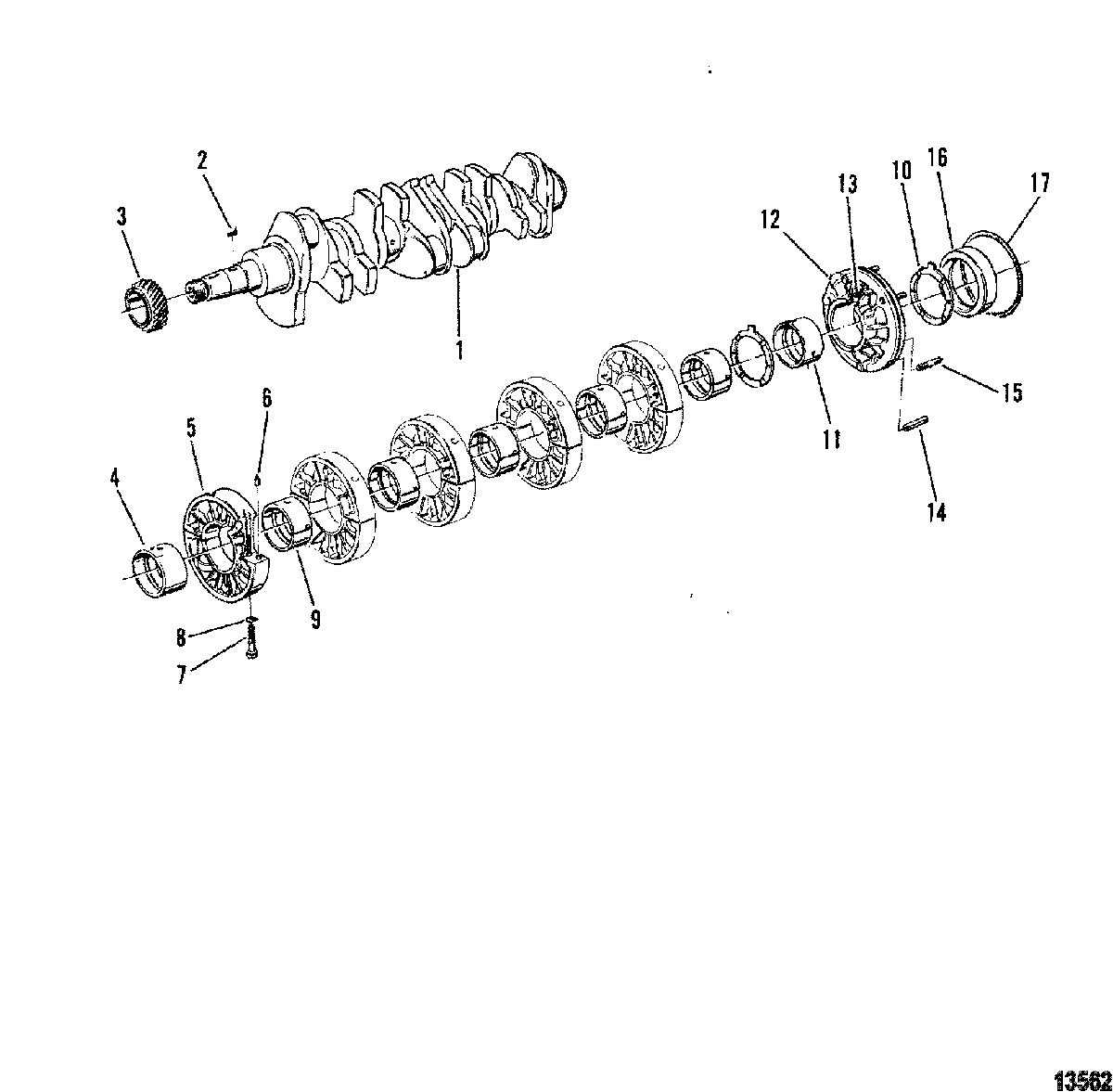

Crankshaft для Mercruiser - 530 D-TA (BRAVO & MIE) VM 183 I/L5 1989 0B993002 THRU 0D725151

  • №
    Артикул
    Название
  • 1
    479-801763695 CRANKSHAFT
    (Quantities: (5 CYL) - 1; (6 CYL) - 0)
    CRANKSHAFT
    (Quantities: (5 CYL) - 1; (6 CYL) - 0)
  • 1
    479-8M0054986 CRANKSHAFT
    (Quantities: (5 CYL) - 0; (6 CYL) - 1)
    CRANKSHAFT
    (Quantities: (5 CYL) - 0; (6 CYL) - 1)
  • 2
    28-801331642 KEY
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
    KEY
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
  • 3
    43-883960A1 GEAR, Crankshaft
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
    GEAR, Crankshaft
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
  • 4
    23-811376 BUSHING, Standard
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
    BUSHING, Standard
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
  • 4
    23-811377 BUSHING (.25MM)
    BUSHING (.25MM)
  • 4
    23-811378 BUSHING (.50MM)
    BUSHING (.50MM)
  • 5
    811379 FLANGE, Front
    (Quantities: (5 CYL) - 4; (6 CYL) - 5)
    FLANGE, Front
    (Quantities: (5 CYL) - 4; (6 CYL) - 5)
  • 5
    811379 FLANGE, Front
    (Quantities: (5 CYL) - 4; (6 CYL) - 5)
    FLANGE, Front
    (Quantities: (5 CYL) - 4; (6 CYL) - 5)
  • 6
    17-801331647 PIN
    (Quantities: (5 CYL) - 8; (6 CYL) - 10)
    PIN
    (Quantities: (5 CYL) - 8; (6 CYL) - 10)
  • 6
    17-801331647 PIN
    (Quantities: (5 CYL) - 8; (6 CYL) - 10)
    PIN
    (Quantities: (5 CYL) - 8; (6 CYL) - 10)
  • 7
    10-801331209 SCREW
    (Quantities: (5 CYL) - 8; (6 CYL) - 10)
    SCREW
    (Quantities: (5 CYL) - 8; (6 CYL) - 10)
  • 7
    10-801331209 SCREW
    (Quantities: (5 CYL) - 8; (6 CYL) - 10)
    SCREW
    (Quantities: (5 CYL) - 8; (6 CYL) - 10)
  • 8
    13-809932110 LOCKWASHER
    (Quantities: (5 CYL) - 8; (6 CYL) - 10)
    LOCKWASHER
    (Quantities: (5 CYL) - 8; (6 CYL) - 10)
  • 8
    13-809932110 LOCKWASHER
    (Quantities: (5 CYL) - 8; (6 CYL) - 10)
    LOCKWASHER
    (Quantities: (5 CYL) - 8; (6 CYL) - 10)
  • 9
    23-896314 BEARING, Standard
    (Quantities: (5 CYL) - 4; (6 CYL) - 5)
    BEARING, Standard
    (Quantities: (5 CYL) - 4; (6 CYL) - 5)
  • 9
    23-896314 BEARING, Standard
    (Quantities: (5 CYL) - 4; (6 CYL) - 5)
    BEARING, Standard
    (Quantities: (5 CYL) - 4; (6 CYL) - 5)
  • 9
    23-896332011 BEARING, (25 mm)
    BEARING, (25 mm)
  • 9
    23-801331633 BEARING, (50 mm)
    BEARING, (50 mm)
  • 10
    12-801331639 THRUST WASHER, Standard
    (Quantities: (5 CYL) - 2; (6 CYL) - 2)
    THRUST WASHER, Standard
    (Quantities: (5 CYL) - 2; (6 CYL) - 2)
  • 10
    12-801331640 THRUST WASHER, (.10MM)
    THRUST WASHER, (.10MM)
  • 10
    12-801331641 THRUST WASHER, (.20MM)
    THRUST WASHER, (.20MM)
  • 11
    23-801331635 BEARING, Standard
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
    BEARING, Standard
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
  • 11
    23-801331636 BEARING (.25MM)
    BEARING (.25MM)
  • 11
    23-801331637 BEARING (.50MM)
    BEARING (.50MM)
  • 12
    811380 FLANGE, Rear
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
    FLANGE, Rear
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
  • 13
    854093 NOZZLE
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    NOZZLE
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 13
    854093 NOZZLE
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    NOZZLE
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 14
    17-809941485 PIN
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
    PIN
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
  • 15
    16-898101517 STUD
    (Quantities: (5 CYL) - 6; (6 CYL) - 6)
    STUD
    (Quantities: (5 CYL) - 6; (6 CYL) - 6)
  • 16
    26-811385 SEAL
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
    SEAL
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
  • 17
    25-884028001 O-RING
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
    O-RING
    (Quantities: (5 CYL) - 1; (6 CYL) - 1)
  • 18
    27-898300008 GASKET SET
    (Quantities: (5 CYL) - 1; (6 CYL) - 0)
    GASKET SET
    (Quantities: (5 CYL) - 1; (6 CYL) - 0)
  • 19
    27-822570A1 GASKET SET, Overhaul
    (Quantities: (5 CYL) - 0; (6 CYL) - 1)
    GASKET SET, Overhaul
    (Quantities: (5 CYL) - 0; (6 CYL) - 1)
