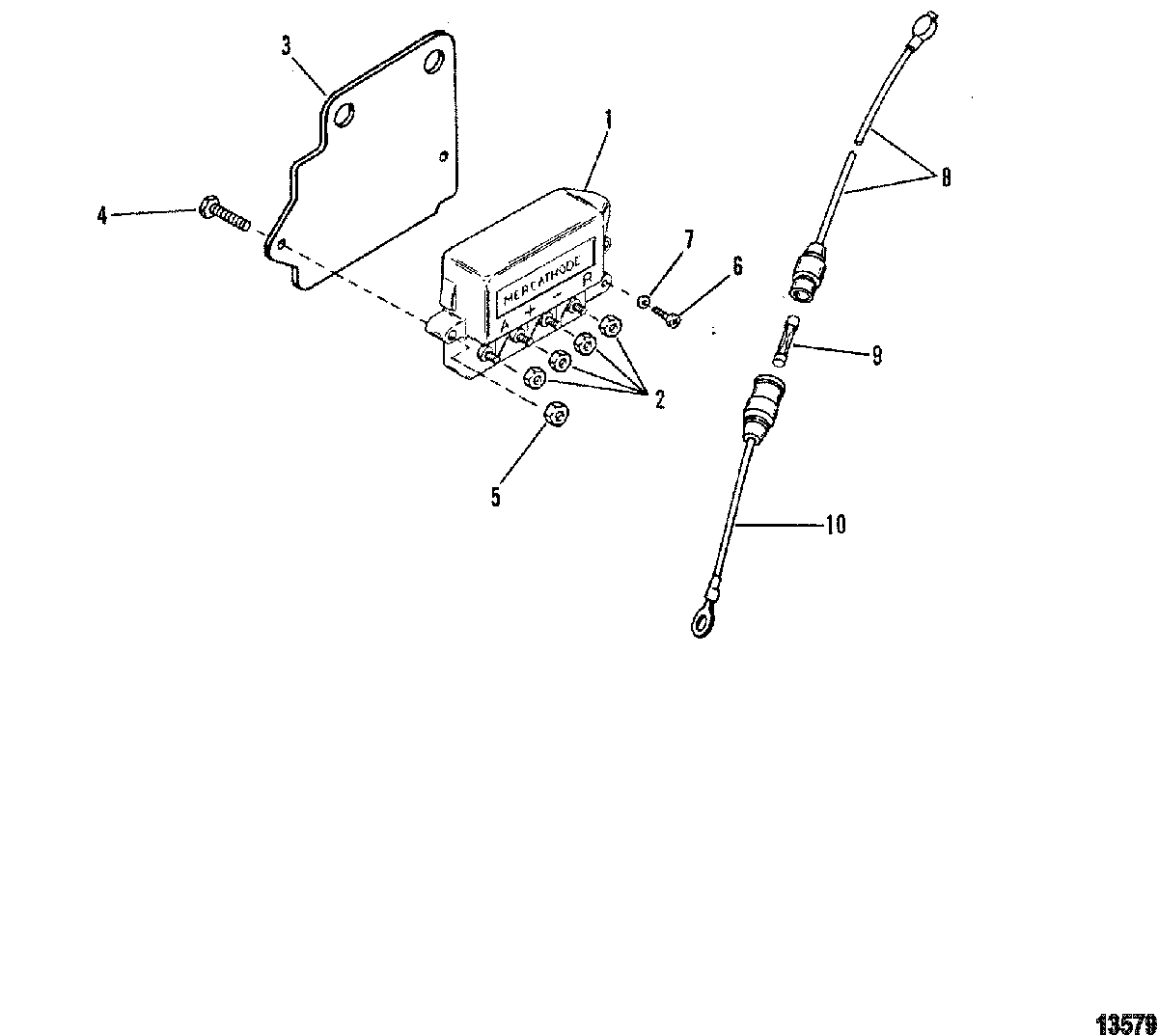

Mercathode(Stern Drive) для Mercruiser - 530 D-TA (BRAVO & MIE) VM 183 I/L5 1989 0B993002 THRU 0D725151

  • №
    Артикул
    Название
  • 1
    42600A09 CONTROLLER ASSEMBLY
    CONTROLLER ASSEMBLY
  • 2
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 3
    18893T BRACKET
    BRACKET
  • 4
    10-4000117 SCREW, (M5 x 20), Controller
    SCREW, (M5 x 20), Controller
  • 5
    11-400211 NUT, (M5), Controller Screw
    NUT, (M5), Controller Screw
  • 6
    10-62568 SCREW, (#10-16 x .375), Controller Ground
    SCREW, (#10-16 x .375), Controller Ground
  • 7
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, Ground Screw
    WASHER, (.192 x .375 x .0312) Stainless Steel, Ground Screw
  • 8
    84-95084A13 CABLE ASSEMBLY, (64.00 Inches), Fuse (Long Red)
    CABLE ASSEMBLY, (64.00 Inches), Fuse (Long Red)
  • 9
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 10
    84-95084A2 CABLE ASSEMBLY, Fuse (Short Red)
    CABLE ASSEMBLY, Fuse (Short Red)
