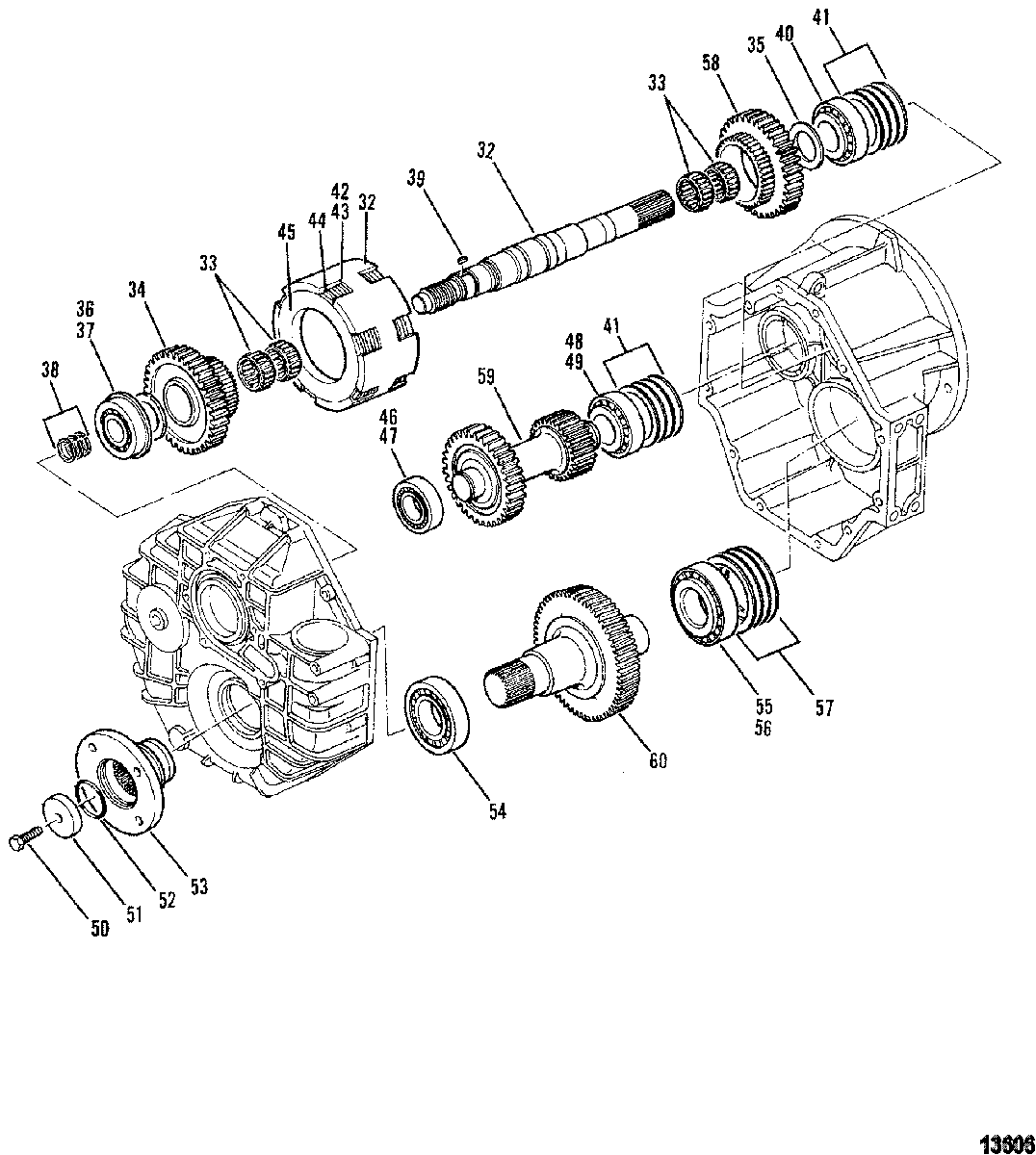

Transmission Assembly(Hydraulic Transmission) Continued для Mercruiser - 530 D-TA (BRAVO & MIE) VM 183 I/L5 1989 0B993002 THRU 0D725151

  • №
    Артикул
    Название
  • -
    863744T2 TRANSMISSION, (1.5:1 Ratio) (1.5:1 Ratio)
    TRANSMISSION, (1.5:1 Ratio) (1.5:1 Ratio)
  • -
    18901A TRANSMISSION ASSEMBLY (2.0:1 Ratio)
    TRANSMISSION ASSEMBLY (2.0:1 Ratio)
  • -
    863744T4 TRANSMISSION, (2.5:1 Ratio) (2.5:1 Ratio)
    TRANSMISSION, (2.5:1 Ratio) (2.5:1 Ratio)
  • 1
    813306 SHAFT, Input
    SHAFT, Input
  • 2
    31-813307 BEARING, Roller
    BEARING, Roller
  • 3
    43-813308 GEAR
    GEAR
  • 4
    43-813308 GEAR
    GEAR
  • 5
    12-813309 WASHER, Inner
    WASHER, Inner
  • 6
    31-852066 BEARING, Tapered Roller, Outer
    BEARING, Tapered Roller, Outer
  • 7
    53-813312 RING
    RING
  • 8
    28-813313 KEY
    KEY
  • 9
    30-813314 BEARING
    BEARING
  • 10
    15-813315 SHIM, (.10 mm)
    SHIM, (.10 mm)
  • 11
    15-813316 SHIM, (.15 mm)
    SHIM, (.15 mm)
  • 12
    15-813317 SHIM, (.20 mm)
    SHIM, (.20 mm)
  • 13
    15-813318 SHIM, (.50 mm)
    SHIM, (.50 mm)
  • 14
    813319 DISC
    DISC
  • 15
    813320 DISC
    DISC
  • 16
    53-813321 RING
    RING
  • 17
    813322 PRESSURE DISC
    PRESSURE DISC
  • 18
    31-813323 BEARING, Tapered Roller, Inner
    BEARING, Tapered Roller, Inner
  • 19
    31-813324 BEARING, Tapered Roller, Outer
    BEARING, Tapered Roller, Outer
  • 20
    31-813325 BEARING, Tapered Roller, Inner
    BEARING, Tapered Roller, Inner
  • 21
    31-813326 BEARING, Tapered Roller, Outer
    BEARING, Tapered Roller, Outer
  • 22
    10-813327 SCREW
    SCREW
  • 23
    23-813328 SPACER
    SPACER
  • 24
    25-813329 O-RING
    O-RING
  • 25
    813330 FLANGE, Output
    FLANGE, Output
  • 26
    31-813331 BEARING, Tapered Roller
    BEARING, Tapered Roller
  • 27
    31-813332 BEARING, Tapered Roller, Inner
    BEARING, Tapered Roller, Inner
  • 228
    31-813333 BEARING, Tapered Roller, Outer
    BEARING, Tapered Roller, Outer
  • 29
    15-813334 SHIM, (.10 mm)
    SHIM, (.10 mm)
  • 30
    15-813335 SHIM, (.15 mm)
    SHIM, (.15 mm)
  • 31
    15-813336 SHIM, (.30 mm)
    SHIM, (.30 mm)
  • 32
    15-813337 SHIM, (.50 mm)
    SHIM, (.50 mm)
  • 33
    43-813338 GEAR (1.5:1 Ratio)
    GEAR (1.5:1 Ratio)
  • 34
    813339 SHAFT, Intermediate (1.5:1 Ratio)
    SHAFT, Intermediate (1.5:1 Ratio)
  • 35
    813340 SHAFT, Output (1.5:1 Ratio)
    SHAFT, Output (1.5:1 Ratio)
  • 36
    43-813341 GEAR (2.0:1 Ratio)
    GEAR (2.0:1 Ratio)
  • 37
    813342 SHAFT, Intermediate (2.0:1 Ratio)
    SHAFT, Intermediate (2.0:1 Ratio)
  • 38
    813342 SHAFT, Intermediate (2.0:1 Ratio)
    SHAFT, Intermediate (2.0:1 Ratio)
  • 39
    43-813344 GEAR (2.5:1 Ratio)
    GEAR (2.5:1 Ratio)
  • 40
    813345 SHAFT, Intermediate (2.5:1 Ratio)
    SHAFT, Intermediate (2.5:1 Ratio)
  • 41
    813346 SHAFT, Output (2.5:1 Ratio)
    SHAFT, Output (2.5:1 Ratio)
