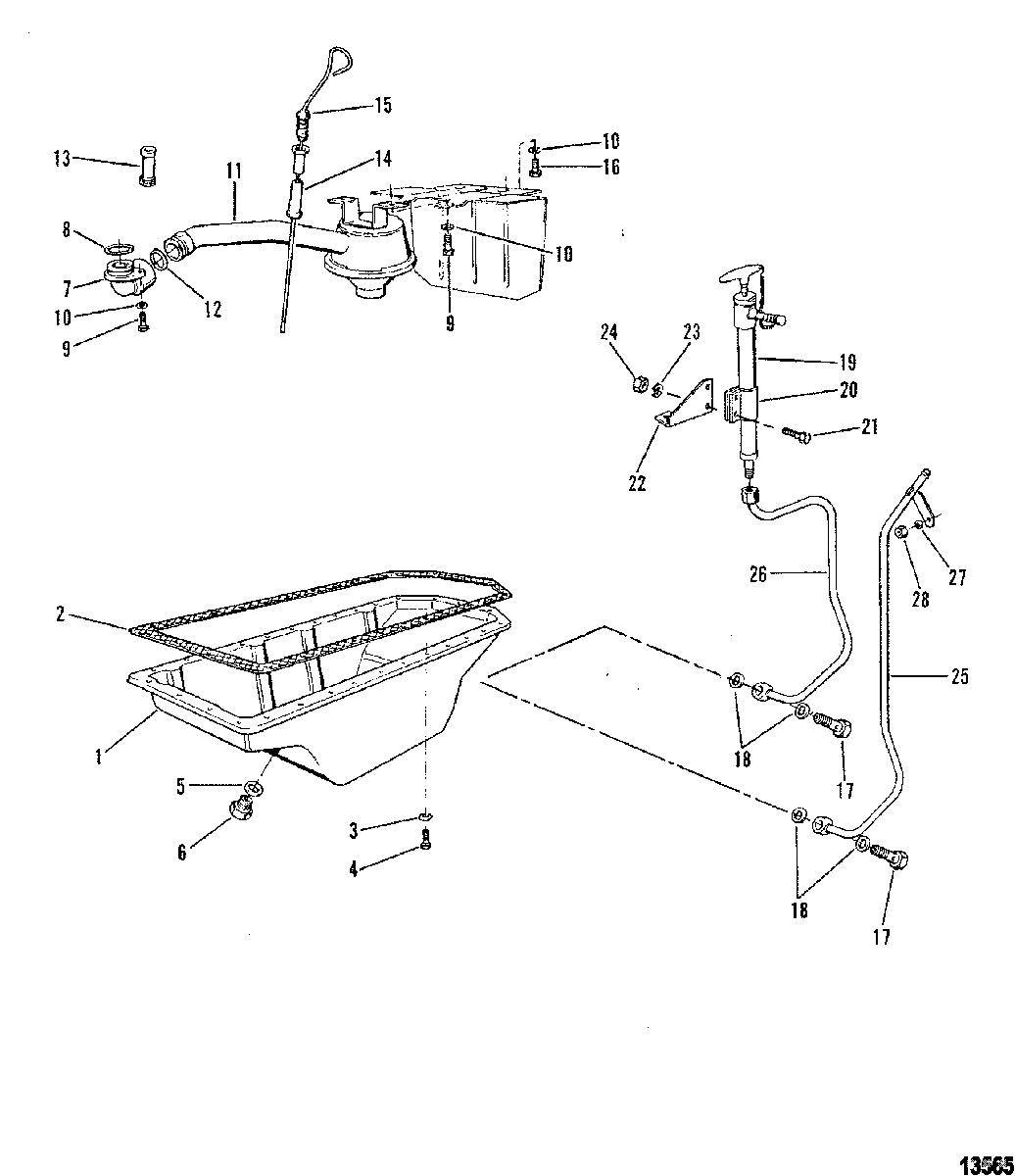

Oil Pan для Mercruiser - 530 D-TA (BRAVO & MIE) VM 183 I/L5 1989 0B993002 THRU 0D725151

  • №
    Артикул
    Название
  • 1
    801763762 PAN, Oil
    (Quantities (5 CYL) - 1; (6 CYL) - 0)
    PAN, Oil
    (Quantities (5 CYL) - 1; (6 CYL) - 0)
  • 1
    801763597 PAN, Oil
    (Quantities (5 CYL) - 0; (6 CYL) - 1)
    PAN, Oil
    (Quantities (5 CYL) - 0; (6 CYL) - 1)
  • 2
    27-801763694 GASKET
    (Quantities (5 CYL) - 1; (6 CYL) - 0)
    GASKET
    (Quantities (5 CYL) - 1; (6 CYL) - 0)
  • 2
    27-801331613 GASKET, Oil Pan
    (Quantities (5 CYL) - 0; (6 CYL) - 1)
    GASKET, Oil Pan
    (Quantities (5 CYL) - 0; (6 CYL) - 1)
  • 3
    12-809931044 WASHER
    (Quantities (5 CYL) - 0; (6 CYL) - 1)
    WASHER
    (Quantities (5 CYL) - 0; (6 CYL) - 1)
  • 3
    12-809931044 WASHER
    (Quantities (5 CYL) - 24; (6 CYL) - 29)
    WASHER
    (Quantities (5 CYL) - 24; (6 CYL) - 29)
  • 4
    10-809913410 SCREW
    (Quantities (5 CYL) - 24; (6 CYL) - 29)
    SCREW
    (Quantities (5 CYL) - 24; (6 CYL) - 29)
  • 4
    10-809913466 SCREW, (M6 x 16)
    (Quantities (5 CYL) - 0; (6 CYL) - 29)
    SCREW, (M6 x 16)
    (Quantities (5 CYL) - 0; (6 CYL) - 29)
  • 5
    12-809963354 WASHER
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    WASHER
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 6
    10-879194148 SCREW, (M22 x 1.5)
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    SCREW, (M22 x 1.5)
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 7
    801333414 ELBOW, Oil Suction
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    ELBOW, Oil Suction
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 8
    25-801333415 O-RING
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    O-RING
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 9
    10-809913450 SCREW
    (Quantities (5 CYL) - 3; (6 CYL) - 3)
    SCREW
    (Quantities (5 CYL) - 3; (6 CYL) - 3)
  • 10
    12-8M0129782 LOCKWASHER
    (Quantities (5 CYL) - 5; (6 CYL) - 5)
    LOCKWASHER
    (Quantities (5 CYL) - 5; (6 CYL) - 5)
  • 11
    801763697 SUCTION TUBE
    (Quantities (5 CYL) - 1; (6 CYL) - 0)
    SUCTION TUBE
    (Quantities (5 CYL) - 1; (6 CYL) - 0)
  • 11
    801763601 TUBE, Oil Suction
    (Quantities (5 CYL) - 0; (6 CYL) - 1)
    TUBE, Oil Suction
    (Quantities (5 CYL) - 0; (6 CYL) - 1)
  • 12
    25-801333416 O-RING
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    O-RING
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 13
    854041 RELIEF VALVE
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    RELIEF VALVE
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 14
    801333425 DIPSTICK TUBE
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    DIPSTICK TUBE
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 15
    801763600 DIPSTICK
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    DIPSTICK
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 15
    801763600 DIPSTICK
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    DIPSTICK
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 16
    10-809913466 SCREW, (M6 x 16)
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    SCREW, (M6 x 16)
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 17
    10-879194176 BOLT, Banjo, Old Design
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    BOLT, Banjo, Old Design
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 18
    12-889153 WASHER, Old Design
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    WASHER, Old Design
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 19
    801761921 PUMP, Oil Suction
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    PUMP, Oil Suction
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 20
    54-801763973 CLAMP, Old Design
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    CLAMP, Old Design
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 21
    10-809913477 SCREW, Old Design
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    SCREW, Old Design
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 22
    801763923 BRACKET, Old Design
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    BRACKET, Old Design
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 23
    12-8M0129782 LOCKWASHER, Old Design
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    LOCKWASHER, Old Design
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 24
    11-879194234 NUT, Old Design
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    NUT, Old Design
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 25
    32-801763840 TUBE, Oil Drain
    (Quantities (5 CYL) - 1; (6 CYL) - 0)
    TUBE, Oil Drain
    (Quantities (5 CYL) - 1; (6 CYL) - 0)
  • 25
    32-801763831 TUBE, Oil Drain
    (Quantities (5 CYL) - 0; (6 CYL) - 1)
    TUBE, Oil Drain
    (Quantities (5 CYL) - 0; (6 CYL) - 1)
  • 26
    32-801763924 PIPE, Oil Drain
    (Quantities (5 CYL) - 1; (6 CYL) - 0)
    PIPE, Oil Drain
    (Quantities (5 CYL) - 1; (6 CYL) - 0)
  • 26
    32-801763960 PIPE, Oil Drain
    (Quantitives (5 CYL) - 0; (6 CYL) - 1)
    PIPE, Oil Drain
    (Quantitives (5 CYL) - 0; (6 CYL) - 1)
  • 27
    12-809931036 WASHER
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    WASHER
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 28
    11-809922410 NUT
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    NUT
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 29
    32-805720 TUBE, Oil, New Design
    TUBE, Oil, New Design
  • 30
    32-805177 TUBE, Oil, New Design
    TUBE, Oil, New Design
  • 31
    54-55098 J CLIP, New Design
    J CLIP, New Design
  • 32
    54-92850 CLAMP, Clip, New Design
    CLAMP, Clip, New Design
  • 33
    10-879194176 BOLT, Banjo
    BOLT, Banjo
  • 34
    12-889153 WASHER
    WASHER
  • 35
    27-898300008 GASKET SET
    (Quantities: (5 CYL) - 1; (6 CYL) - 0)
    GASKET SET
    (Quantities: (5 CYL) - 1; (6 CYL) - 0)
  • 36
    27-822570A1 GASKET SET, Overhaul
    (Quantities: (5 CYL) - 0; (6 CYL) - 1)
    GASKET SET, Overhaul
    (Quantities: (5 CYL) - 0; (6 CYL) - 1)
