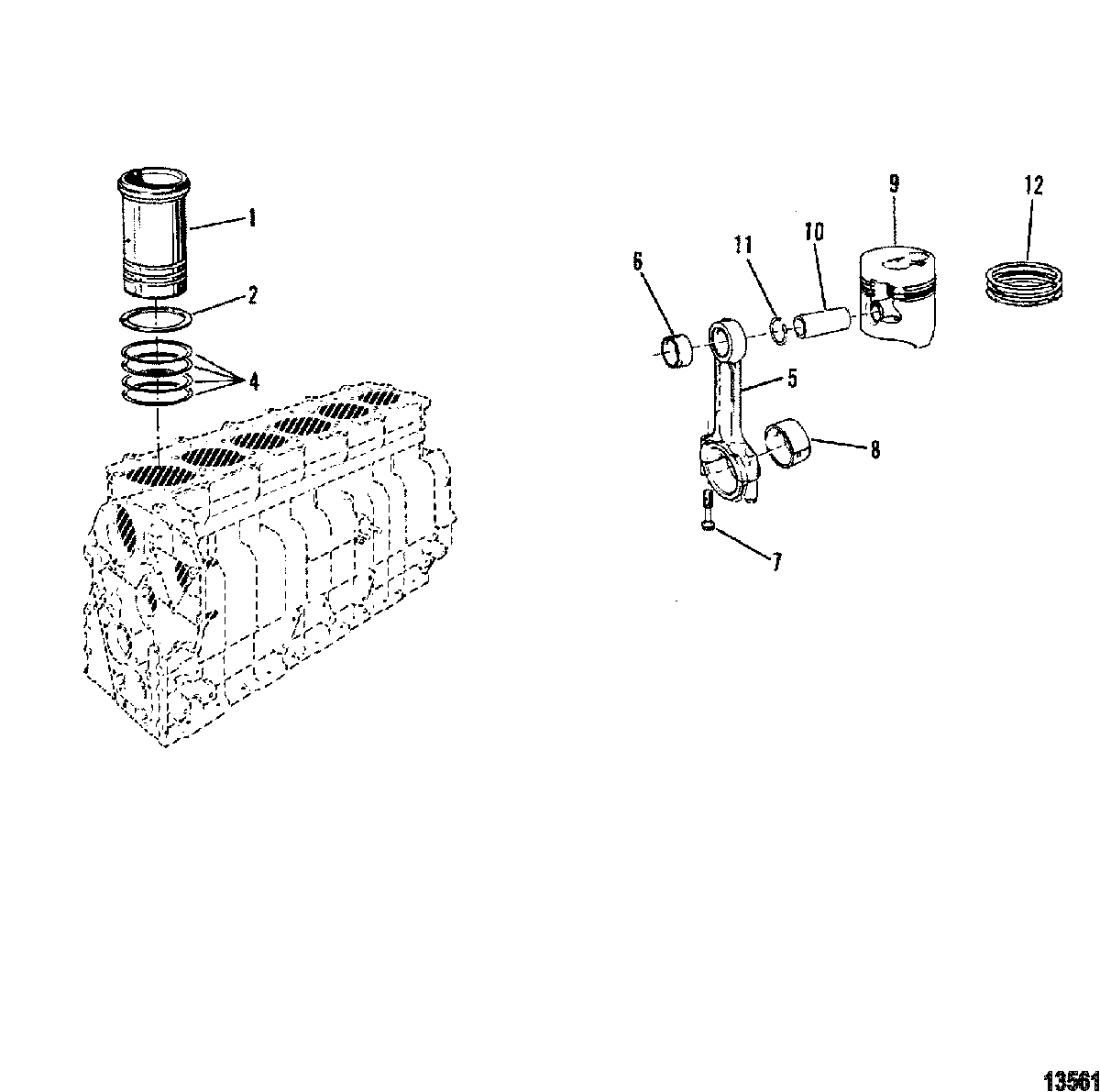

Connecting Rod And Piston для Mercruiser - 530 D-TA (BRAVO & MIE) VM 183 I/L5 1989 0B993002 THRU 0D725151

  • №
    Артикул
    Название
  • 1
    51-895203 LINER, Cylinder (92.00 MM/92.01 MM)
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    LINER, Cylinder (92.00 MM/92.01 MM)
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 1
    51-895203 LINER, Cylinder (92.00 MM/92.01 MM)
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    LINER, Cylinder (92.00 MM/92.01 MM)
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 1
    51-801331626 LINER, Cylinder (92.01 MM/92.02 MM)
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    LINER, Cylinder (92.01 MM/92.02 MM)
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 1
    51-801331626 LINER, Cylinder (92.01 MM/92.02 MM)
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    LINER, Cylinder (92.01 MM/92.02 MM)
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 2
    15-801331607 SHIM, (15 mm)
    SHIM, (15 mm)
  • 2
    15-801331608 SHIM, (20 mm)
    SHIM, (20 mm)
  • 2
    15-801763362 SHIM, (23 mm)
    SHIM, (23 mm)
  • 4
    25-811893A1 O-RING
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    O-RING
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 4
    25-811893A1 O-RING
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    O-RING
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 5
    600-8M0069646 CONNECTING ROD ASSEMBLY
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    CONNECTING ROD ASSEMBLY
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 5
    600-8M0069646 CONNECTING ROD ASSEMBLY
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    CONNECTING ROD ASSEMBLY
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 6
    23-801331712 BUSHING
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    BUSHING
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 6
    23-801331712 BUSHING
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    BUSHING
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 7
    10-801331713 BOLT
    (Quantities: (5 CYL) - 10; (6 CYL) - 12)
    BOLT
    (Quantities: (5 CYL) - 10; (6 CYL) - 12)
  • 7
    10-801331713 BOLT
    (Quantities: (5 CYL) - 10; (6 CYL) - 12)
    BOLT
    (Quantities: (5 CYL) - 10; (6 CYL) - 12)
  • 8
    31-8M0054658 BEARING, Standard
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    BEARING, Standard
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 8
    31-8M0054658 BEARING, Standard
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    BEARING, Standard
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 8
    8M0077370 BEARING, (25 mm)
    BEARING, (25 mm)
  • 8
    801331717 BEARING, (50 mm)
    BEARING, (50 mm)
  • 9
    786-802545 PISTON
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    PISTON
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 9
    786-802545 PISTON
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    PISTON
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 10
    41-801763393 PIN, Piston
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    PIN, Piston
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 10
    41-801763393 PIN, Piston
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    PIN, Piston
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 11
    40-801331725 RING
    (Quantities: (5 CYL) - 10; (6 CYL) - 12)
    RING
    (Quantities: (5 CYL) - 10; (6 CYL) - 12)
  • 11
    40-801331725 RING
    (Quantities: (5 CYL) - 10; (6 CYL) - 12)
    RING
    (Quantities: (5 CYL) - 10; (6 CYL) - 12)
  • 12
    39-879172205 RING, Piston
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    RING, Piston
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 12
    39-879172205 RING, Piston
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
    RING, Piston
    (Quantities: (5 CYL) - 5; (6 CYL) - 6)
  • 13
    27-898300008 GASKET SET
    (Quantities: (5 CYL) - 1; (6 CYL) - 0)
    GASKET SET
    (Quantities: (5 CYL) - 1; (6 CYL) - 0)
  • 14
    27-822570A1 GASKET SET, Overhaul
    (Quantities: (5 CYL) - 0; (6 CYL) - 1)
    GASKET SET, Overhaul
    (Quantities: (5 CYL) - 0; (6 CYL) - 1)
