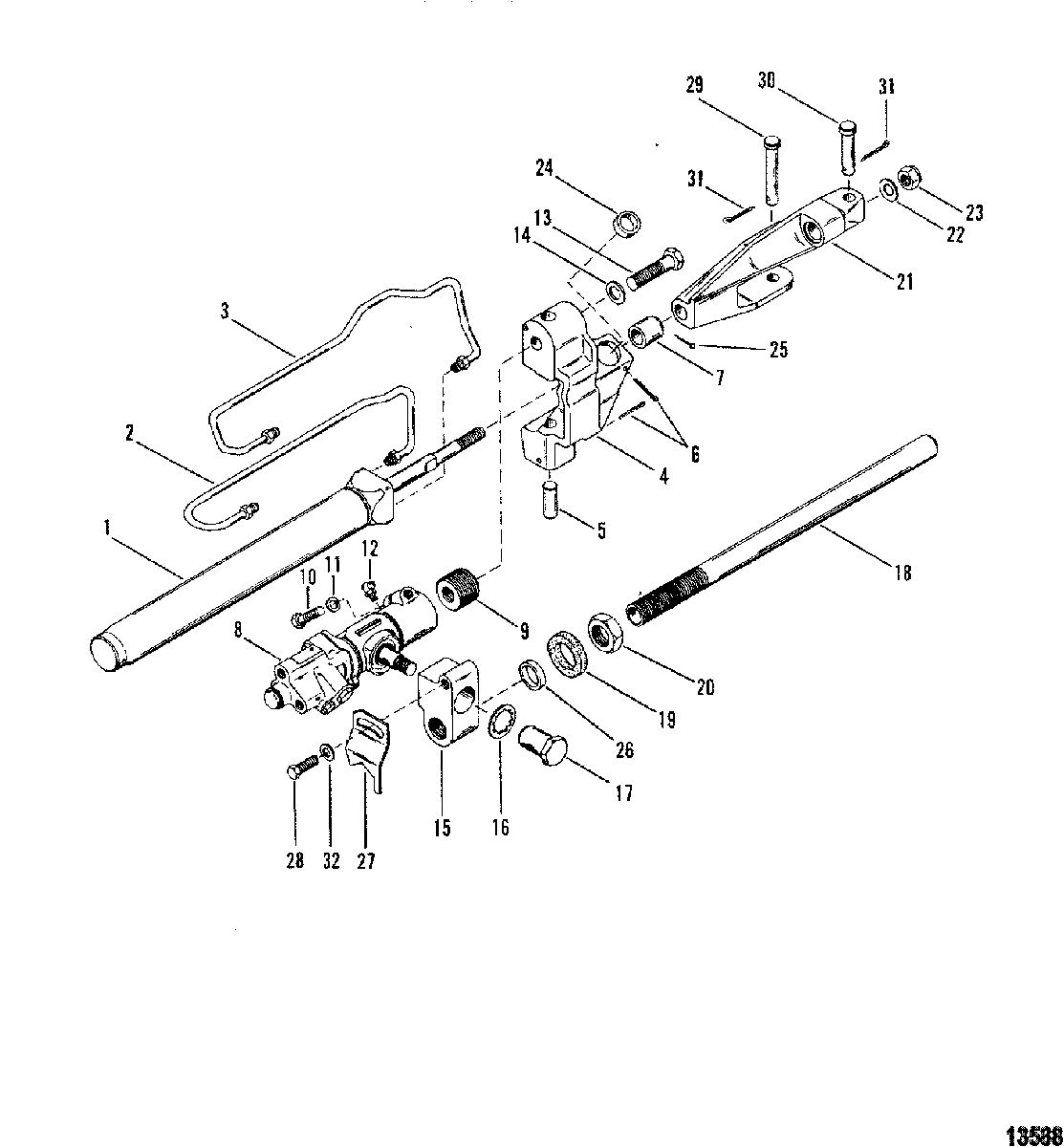

Power Steering Cylinder(5 CYL Stern Drive) для Mercruiser - 530 D-TA (BRAVO & MIE) VM 183 I/L5 1989 0B993002 THRU 0D725151

  • №
    Артикул
    Название
  • -
    8M0063381 CYLINDER ASSEMBLY, Power Steering
    CYLINDER ASSEMBLY, Power Steering
  • 1
    57969A12 CYLINDER ASSEMBLY, Booster, Booster (25-58224A1 Repair Kit)
    CYLINDER ASSEMBLY, Booster, Booster (25-58224A1 Repair Kit)
  • 2
    32-92054 TUBE
    TUBE
  • 3
    32-92055 TUBE
    TUBE
  • 4
    94953A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 5
    17-88283 PIN, Retaining, Booster Cylinder
    PIN, Retaining, Booster Cylinder
  • 6
    18-36377 COTTER PIN, Retaining Pin
    COTTER PIN, Retaining Pin
  • 7
    23-88282 SLEEVE, Adaptor Bracket
    SLEEVE, Adaptor Bracket
  • 8
    816458A1 VALVE ASSEMBLY, Power Steering (25-58226A1 Repair Kit)
    VALVE ASSEMBLY, Power Steering (25-58226A1 Repair Kit)
  • 9
    88280 ADAPTOR, Booster Valve
    ADAPTOR, Booster Valve
  • 10
    10-68101 SCREW, (.375-16 x 1.375), Clamping
    SCREW, (.375-16 x 1.375), Clamping
  • 11
    13-35048 LOCKWASHER, (.375), Clamping Screw
    LOCKWASHER, (.375), Clamping Screw
  • 12
    22-67305 FITTING, Grease
    FITTING, Grease
  • 13
    10-88281 SCREW, (.500-20 x 1.750), Adaptor
    SCREW, (.500-20 x 1.750), Adaptor
  • 14
    12-20959 WASHER, Adaptor Screw
    WASHER, Adaptor Screw
  • 15
    88285 ADAPTOR, Steering Tube
    ADAPTOR, Steering Tube
  • 16
    13-76629 LOCKWASHER, Internal Tooth (.750), Steering Tube Adaptor
    LOCKWASHER, Internal Tooth (.750), Steering Tube Adaptor
  • 17
    11-55111 NUT, Steering Tube Adaptor
    NUT, Steering Tube Adaptor
  • 18
    96511 TUBE ASSEMBLY, Steering, Steering
    TUBE ASSEMBLY, Steering, Steering
  • 19
    88287 GUIDE, Steering Tube
    GUIDE, Steering Tube
  • 20
    11-32882 NUT, (.875-14), Steering
    NUT, (.875-14), Steering
  • 21
    95848A1 CLEVIS ASSEMBLY, Rod End
    CLEVIS ASSEMBLY, Rod End
  • 22
    12-20553 WASHER, Rod End
    WASHER, Rod End
  • 23
    11-53300 NUT, (.375-24), Rod End
    NUT, (.375-24), Rod End
  • 24
    23-95803 BUSHING, Pivot
    BUSHING, Pivot
  • 25
    18-34212 COTTER PIN, Sleeve
    COTTER PIN, Sleeve
  • 26
    23-88286 BUSHING, Steering Tube
    BUSHING, Steering Tube
  • 27
    92766 LOCK, Coupler Nut
    LOCK, Coupler Nut
  • 28
    10-41209 SCREW, Coupler Nut Lock
    SCREW, Coupler Nut Lock
  • 29
    17-89229 PIN, Clevis
    PIN, Clevis
  • 30
    17-52798 PIN, Clevis
    PIN, Clevis
  • 31
    18-46950 COTTER PIN, Clevis Pin
    COTTER PIN, Clevis Pin
  • 32
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, Coupler Nut Lock Screw
    WASHER, (.2656 x .625 x .0625) Stainless Steel, Coupler Nut Lock Screw
