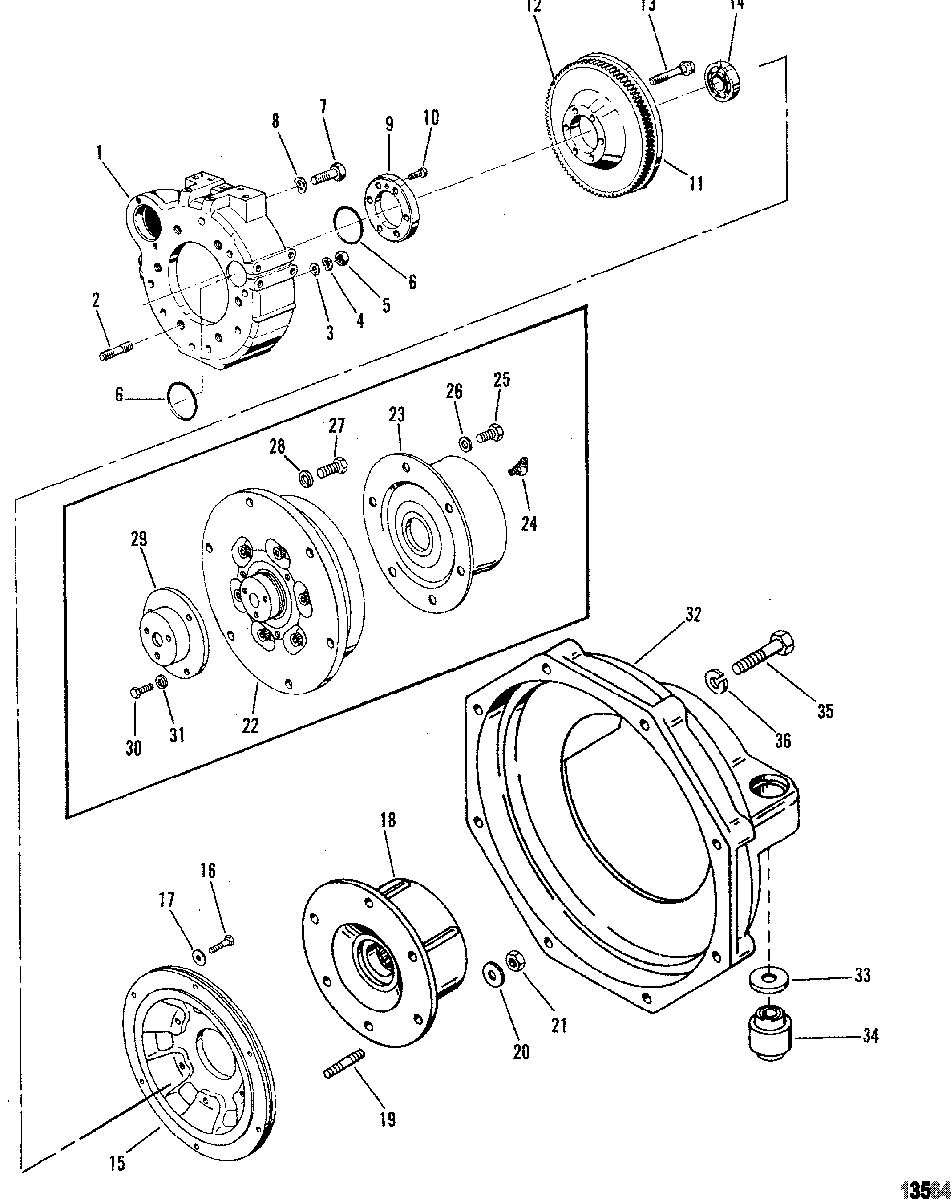

Flywheel Housing(Sterndrive) для Mercruiser - 530 D-TA (BRAVO & MIE) VM 183 I/L5 1989 0B993002 THRU 0D725151

  • №
    Артикул
    Название
  • 1
    801331695 HOUSING, Flywheel
    HOUSING, Flywheel
  • 2
    16-8M0048120 STUD
    STUD
  • 3
    12-4002217 WASHER
    WASHER
  • 4
    13-811460 LOCKWASHER
    LOCKWASHER
  • 5
    11-400213 NUT
    NUT
  • 6
    25-801331619 O-RING
    O-RING
  • 7
    10-809913837 SCREW
    SCREW
  • 8
    13-809932112 LOCKWASHER
    LOCKWASHER
  • 9
    855452 SPACER, Flywheel
    SPACER, Flywheel
  • 10
    10-801331698 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 11
    265-801331699 FLYWHEEL
    FLYWHEEL
  • 12
    43-801331701 RING GEAR
    RING GEAR
  • 13
    10-879711 BOLT
    BOLT
  • 14
    30-801331702 BEARING, Ball, Single State Coupling
    BEARING, Ball, Single State Coupling
  • 15
    18743T ADAPTOR, Single State Coupling
    ADAPTOR, Single State Coupling
  • 16
    10-40001134 SCREW, (M8 x 25), Single State Coupling
    SCREW, (M8 x 25), Single State Coupling
  • 17
    13-400247 LOCKWASHER, (M8), Single State Coupling
    LOCKWASHER, (M8), Single State Coupling
  • 18
    97432A2 COUPLING ASSEMBLY, Single State Coupling
    COUPLING ASSEMBLY, Single State Coupling
  • 19
    16-76175 STUD, Single State Coupling
    STUD, Single State Coupling
  • 20
    12-34714 WASHER, Single State Coupling
    WASHER, Single State Coupling
  • 21
    11-25269 NUT, (.375-24), Single State Coupling
    NUT, (.375-24), Single State Coupling
  • 22
    18311A9 COUPLING ASSEMBLY, Dual Stage Coupling
    COUPLING ASSEMBLY, Dual Stage Coupling
  • 23
    805684A2 COUPLING, Dual Stage Coupling
    COUPLING, Dual Stage Coupling
  • 24
    22-49099 FITTING, Dual Stage Coupling
    FITTING, Dual Stage Coupling
  • 25
    10-40001189 SCREW, (M10 x 20), Dual Stage Coupling
    SCREW, (M10 x 20), Dual Stage Coupling
  • 26
    13-400248 LOCKWASHER, (M10), Dual Stage Coupling
    LOCKWASHER, (M10), Dual Stage Coupling
  • 27
    10-40001134 SCREW, (M8 x 25), Dual Stage Coupling
    SCREW, (M8 x 25), Dual Stage Coupling
  • 28
    13-400247 LOCKWASHER, (M8), Dual Stage Coupling
    LOCKWASHER, (M8), Dual Stage Coupling
  • 29
    805731 COUPLER, Dual Stage Coupling
    COUPLER, Dual Stage Coupling
  • 30
    10-4000175 SCREW, (M6 x 20), Dual Stage Coupling
    SCREW, (M6 x 20), Dual Stage Coupling
  • 31
    13-400246 LOCKWASHER, Dual Stage Coupling
    LOCKWASHER, Dual Stage Coupling
  • 32
    898272024 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 33
    23-99322 SPACER
    SPACER
  • 34
    865330A02 MOUNT
    MOUNT
  • 35
    10-40001206 SCREW, (M10 x 50)
    SCREW, (M10 x 50)
  • 36
    13-879194382 LOCKWASHER
    LOCKWASHER
  • 37
    27-898300008 GASKET SET
    (Quantities: (5 CYL) - 1; (6 CYL) - 0)
    GASKET SET
    (Quantities: (5 CYL) - 1; (6 CYL) - 0)
  • 38
    27-822570A1 GASKET SET, Overhaul
    (Quantities: (5 CYL) - 0; (6 CYL) - 1)
    GASKET SET, Overhaul
    (Quantities: (5 CYL) - 0; (6 CYL) - 1)
