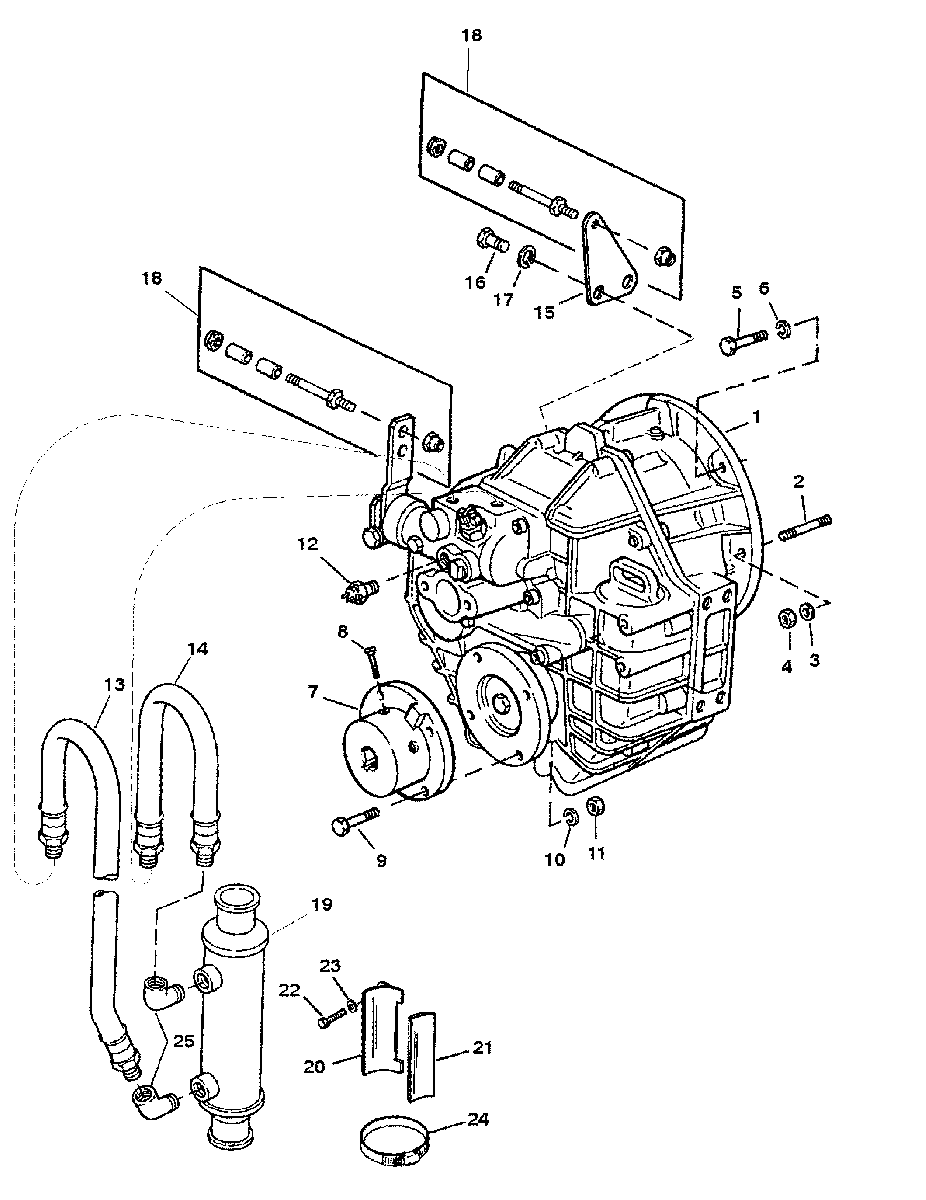

TRANSMISSION AND RELATED PARTS (HURTH 630) для Mercruiser - 7.4L MIE (LH) GEN. VI GM 454 V-8 1996-1997 0F820142 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    863744T2 TRANSMISSION
    (1.5:1 RATIO) IN-LINE TRANSMISSION
    TRANSMISSION
    (1.5:1 RATIO) IN-LINE TRANSMISSION
  • 1
    863744T3 TRANSMISSION
    (2.0:1 RATIO) IN-LINE TRANSMISSION
    TRANSMISSION
    (2.0:1 RATIO) IN-LINE TRANSMISSION
  • 1
    863744T4 TRANSMISSION
    (2.5:1 RATIO) IN-LINE TRANSMISSION
    TRANSMISSION
    (2.5:1 RATIO) IN-LINE TRANSMISSION
  • 1
    863745T2 TRANSMISSION
    (1.5:1 RATIO) V-DRIVE TRANSMISSION
    TRANSMISSION
    (1.5:1 RATIO) V-DRIVE TRANSMISSION
  • 1
    863745T3 TRANSMISSION
    (2.0:1 RATIO) V-DRIVE TRANSMISSION
    TRANSMISSION
    (2.0:1 RATIO) V-DRIVE TRANSMISSION
  • 1
    863745T4 TRANSMISSION
    (2.5:1 RATIO) V-DRIVE TRANSMISSION
    TRANSMISSION
    (2.5:1 RATIO) V-DRIVE TRANSMISSION
  • 2
    16-805259 STUD
    STUD
  • 3
    12-22248 WASHER
    WASHER
  • 4
    11-34933 NUT (7/16-20)
    NUT (7/16-20)
  • 5
    10-47462 SCREW (7/16-14 X 1-1/4 IN.)
    SCREW (7/16-14 X 1-1/4 IN.)
  • 6
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 7
    79476A1 FLANGE ASSEMBLY
    (1 IN.)
    FLANGE ASSEMBLY
    (1 IN.)
  • 7
    79476A2 FLANGE ASSEMBLY
    (1-1/8 IN.)
    FLANGE ASSEMBLY
    (1-1/8 IN.)
  • 7
    79476A3 FLANGE ASSEMBLY
    (1-1/4 IN.)
    FLANGE ASSEMBLY
    (1-1/4 IN.)
  • 7
    79476A4 FLANGE ASSEMBLY
    (1-3/8 IN.)
    FLANGE ASSEMBLY
    (1-3/8 IN.)
  • 7
    79476A5 FLANGE ASSEMBLY
    (1-1/2 IN.)
    FLANGE ASSEMBLY
    (1-1/2 IN.)
  • 7
    79476A6 FLANGE ASSEMBLY
    (1-3/4 IN.)
    FLANGE ASSEMBLY
    (1-3/4 IN.)
  • 7
    79476A7 FLANGE ASSEMBLY
    (2 IN.)
    FLANGE ASSEMBLY
    (2 IN.)
  • 8
    10-60171 SCREW-FLANGE (3/8-16 X 1-1/4 IN.)
    SCREW-FLANGE (3/8-16 X 1-1/4 IN.)
  • 8
    10-60169 SCREW-FLANGE (3/8-16 X 3/4 IN.)
    SCREW-FLANGE (3/8-16 X 3/4 IN.)
  • 9
    10-805159 SCREW-FLANGE (7/16-20 X 1-1/2 IN.)
    SCREW-FLANGE (7/16-20 X 1-1/2 IN.)
  • 10
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 11
    11-22024 NUT (7/16-20)
    NUT (7/16-20)
  • 12
    87-88031 SWITCH-TEMPERATURE
    SWITCH-TEMPERATURE
  • 13
    32-8054781 HOSE-OIL
    HOSE-OIL
  • 14
    32-8054782 HOSE-OIL
    HOSE-OIL
  • 15
    806238 BRACKET-SHIFT LINKAGE
    BRACKET-SHIFT LINKAGE
  • 16
    10-40001124 SCREW (M8 X 14)
    SCREW (M8 X 14)
  • 17
    13-400247 LOCKWASHER (M8)
    LOCKWASHER (M8)
  • 18
    16-97477A3 STUD KIT
    STUD KIT
  • 19
    63832A1 COOLER-OIL
    COOLER-OIL
  • 20
    805546A2 BRACKET-COOLER
    BRACKET-COOLER
  • 21
    772233 PAD
    PAD
  • 22
    10-809919969 SCREW (M8 X 20)
    SCREW (M8 X 20)
  • 23
    12-26825 WASHER (5/16 IN.)
    WASHER (5/16 IN.)
  • 24
    54-815504232 CLAMP
    CLAMP
  • 25
    22-47629 ELBOW (90 DEG.)
    ELBOW (90 DEG.)
