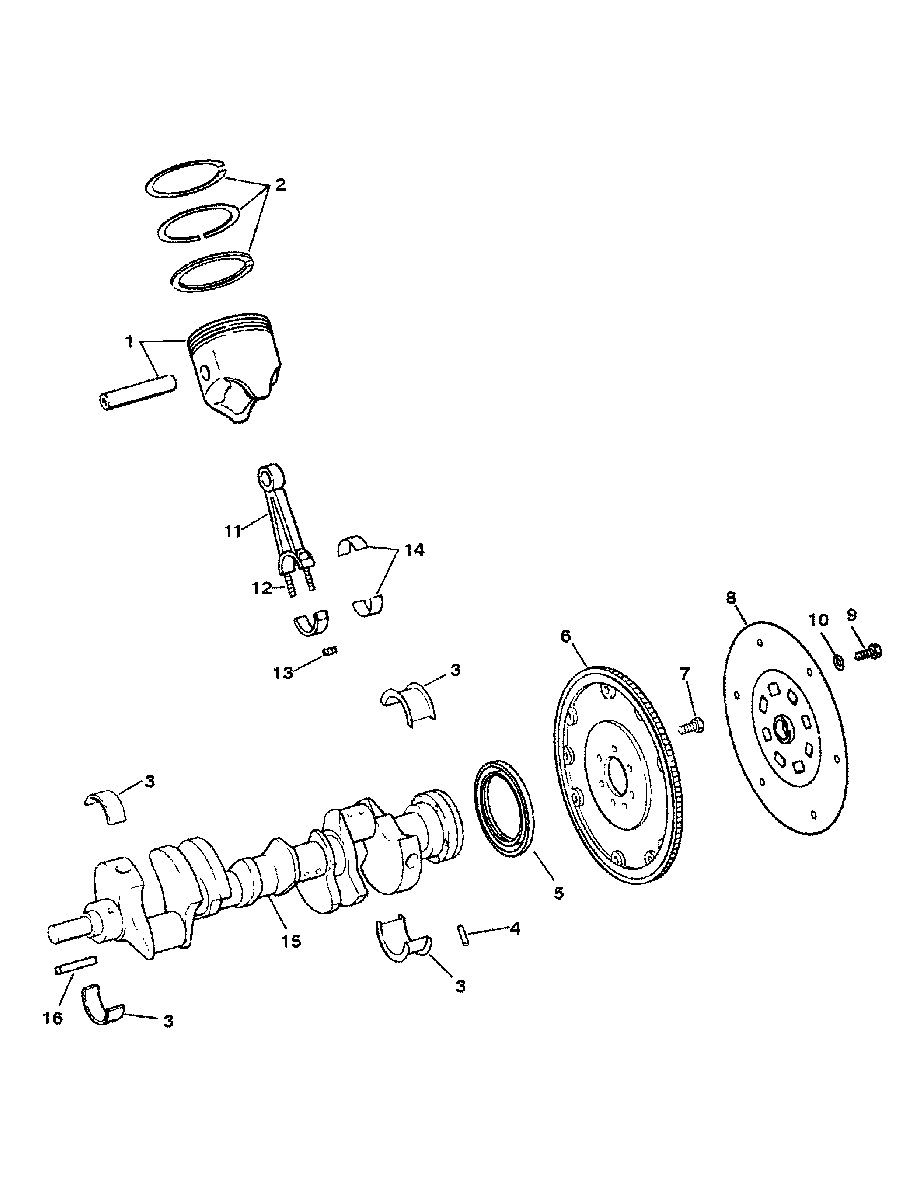

CRANKSHAFT, PISTONS AND CONN. RODS для Mercruiser - 7.4L MIE (LH) GEN. VI GM 454 V-8 1996-1997 0F820142 THRU 0K999999

№

Артикул

Название
1

737-881714T PISTON ASSEMBLY
(STANDARD)

PISTON ASSEMBLY
(STANDARD)
1

737-850449001 PISTON ASSEMBLY
(.030 O.S.)

PISTON ASSEMBLY
(.030 O.S.)
2

39-827651T RING-PISTON
(STANDARD)

RING-PISTON
(STANDARD)
2

39-850447 RING-PISTON
(.030 O.S.)

RING-PISTON
(.030 O.S.)
3

23-818473001 BEARING SET
(STANDARD)

BEARING SET
(STANDARD)
3

23-818474 BEARING SET
(.001 U.S.)

BEARING SET
(.001 U.S.)
3

23-818475 BEARING SET
(.002 U.S.)

BEARING SET
(.002 U.S.)
3

23-818476001 BEARING SET
(.010 U.S.)

BEARING SET
(.010 U.S.)
3

23-818477 BEARING SET
(.020 U.S.)

BEARING SET
(.020 U.S.)
4

17-43504 PIN-DOWEL (1/4 IN. DIA.)

PIN-DOWEL (1/4 IN. DIA.)
5

26-811554 SEAL-OIL

SEAL-OIL
6

200-8M0084512 FLYWHEEL

FLYWHEEL
7

10-845757 SCREW (7/16-20 X 1 IN.)

SCREW (7/16-20 X 1 IN.)
8

860125T DRIVE PLATE

DRIVE PLATE
9

10-35091 SCREW (3/8-16 X 1 IN.)

SCREW (3/8-16 X 1 IN.)
10

13-35048 LOCKWASHER (3/8 IN.)

LOCKWASHER (3/8 IN.)
11

614-8M0030663 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY
12

10-52192 BOLT-CONNECTING ROD CAP

BOLT-CONNECTING ROD CAP
13

11-37493 NUT-CONNECTING ROD CAP BOLT

NUT-CONNECTING ROD CAP BOLT
14

23-85726001 BEARING UNIT
(STANDARD)

BEARING UNIT
(STANDARD)
14

23-85727 BEARING UNIT
(PAIR - .001 U.S.)

BEARING UNIT
(PAIR - .001 U.S.)
14

23-85728 BEARING UNIT
(PAIR - .002 U.S.)

BEARING UNIT
(PAIR - .002 U.S.)
14

23-85691 BEARING UNIT
(PAIR - .010 U.S.)

BEARING UNIT
(PAIR - .010 U.S.)
14

23-85729 BEARING UNIT
(PAIR - .020 U.S.)

BEARING UNIT
(PAIR - .020 U.S.)
15

429-811551 CRANKSHAFT

CRANKSHAFT
16

28-845607 KEY-CRANKSHAFT

KEY-CRANKSHAFT
-

27-850470A96 GASKET SET

GASKET SET
