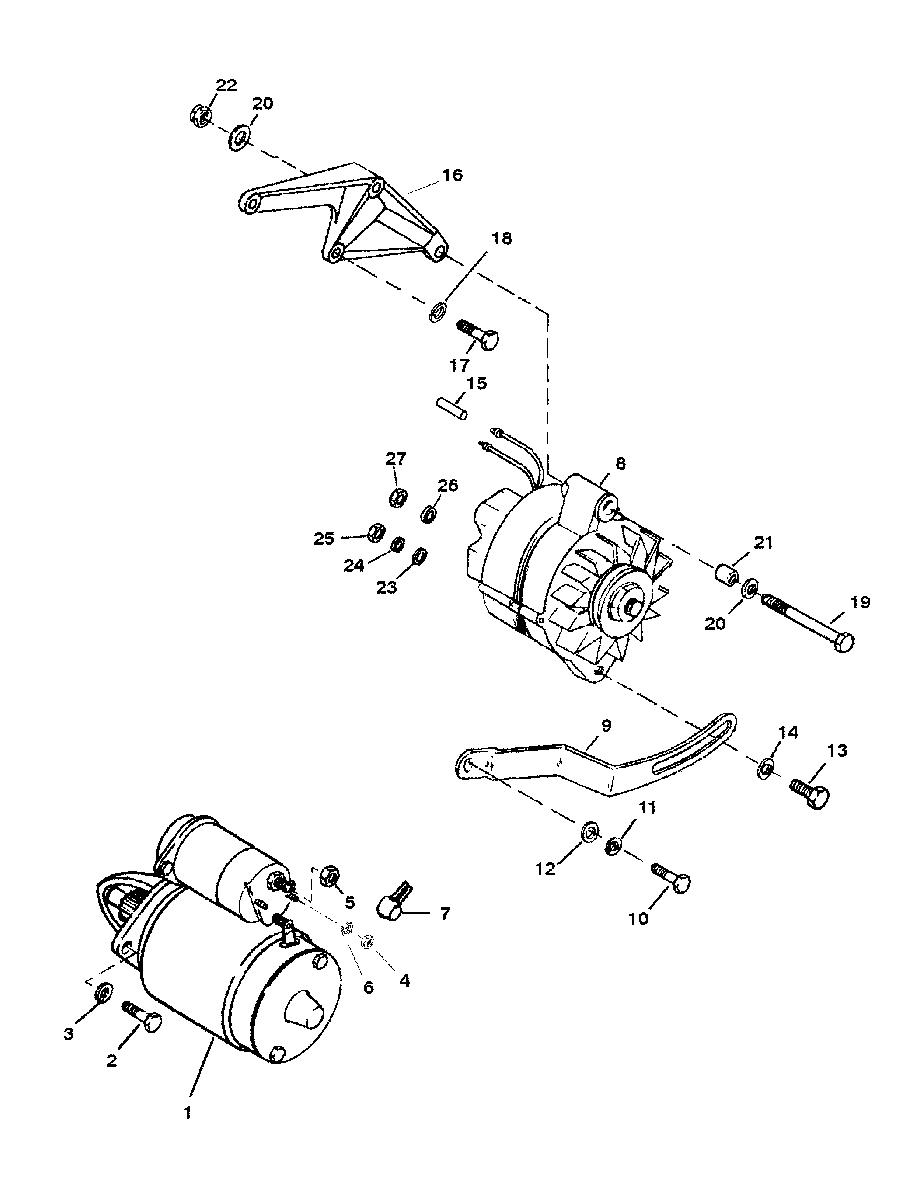

STARTER MOTOR AND ALTERNATOR для Mercruiser - 7.4L MIE (LH) GEN. VI GM 454 V-8 1996-1997 0F820142 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    50-808011A05 STARTER MOTOR
    STARTER MOTOR
  • 2
    10-47462 SCREW (7/16-14 X 1-1/4 IN.)
    SCREW (7/16-14 X 1-1/4 IN.)
  • 3
    13-32993 LOCKWASHER (7/16)
    LOCKWASHER (7/16)
  • 4
    11-400211 NUT (M5 X 0.8)
    NUT (M5 X 0.8)
  • 5
    11-15874 NUT (M10 X 1.5)
    NUT (M10 X 1.5)
  • 6
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 7
    85-79695T BOOT-INSULATOR
    BOOT-INSULATOR
  • 8
    817119A4 ALTERNATOR ASSEMBLY
    ALTERNATOR ASSEMBLY
  • 9
    85013T BRACE-ALTERNATOR ADJUSTING
    BRACE-ALTERNATOR ADJUSTING
  • 10
    10-47462 SCREW (7/16-14 X 1-1/4 IN.)
    SCREW (7/16-14 X 1-1/4 IN.)
  • 11
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 12
    12-31263 WASHER
    WASHER
  • 13
    10-29198 SCREW & LOCKWASHER (5/16-18 X 7/8 IN.)
    SCREW & LOCKWASHER (5/16-18 X 7/8 IN.)
  • 14
    12-26168 WASHER
    WASHER
  • 15
    32-7381567 TUBING-ALTERNATOR LEAD
    TUBING-ALTERNATOR LEAD
  • 16
    47487T BRACKET-ALTERNATOR
    BRACKET-ALTERNATOR
  • 17
    10-47461 SCREW (7/16-14 X 1 IN.)
    SCREW (7/16-14 X 1 IN.)
  • 17
    10-57357 SCREW (7/16-14 X 2-1/4 IN.)
    SCREW (7/16-14 X 2-1/4 IN.)
  • 18
    13-32993 LOCKWASHER
    LOCKWASHER
  • 19
    10-48308 SCREW (3/8-24 X 3-3/4 IN.)
    SCREW (3/8-24 X 3-3/4 IN.)
  • 20
    12-20553 WASHER
    WASHER
  • 21
    23-33186 BUSHING
    BUSHING
  • 22
    11-23161 NUT (3/8-24)
    NUT (3/8-24)
  • 23
    12-96457 WASHER-PHENOLIC
    WASHER-PHENOLIC
  • 24
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 25
    11-79989 NUT (#10-24)
    NUT (#10-24)
  • 26
    13-26992 LOCKWASHER (1/4 IN.)
    LOCKWASHER (1/4 IN.)
  • 27
    11-94330 NUT (1/4-20)
    NUT (1/4-20)
