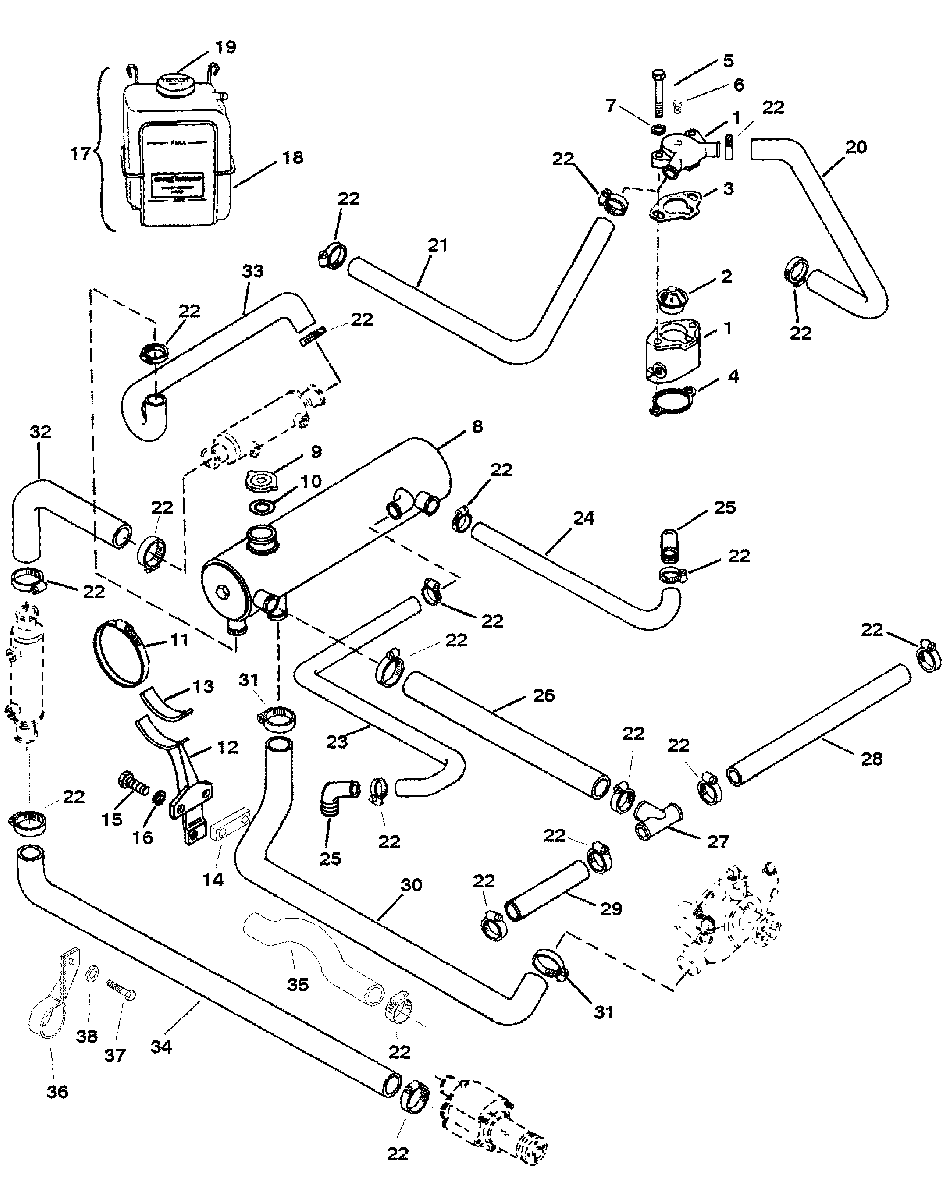

CLOSED COOLING (HURTH & BORG WARNER 5000) для Mercruiser - 7.4L MIE (LH) GEN. VI GM 454 V-8 1996-1997 0F820142 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    55131A5 HOUSING AND COVER-THERMOSTAT
    HOUSING AND COVER-THERMOSTAT
  • 2
    8M0109441 THERMOSTAT (160 DEGREE)
    THERMOSTAT (160 DEGREE)
  • 3
    27-488181 GASKET (UPPER)
    GASKET (UPPER)
  • 4
    27-530451 GASKET (LOWER)
    GASKET (LOWER)
  • 5
    10-48115 SCREW (3/8-16 X 3-1/2 IN.)
    SCREW (3/8-16 X 3-1/2 IN.)
  • 6
    22-328022 PLUG-DRAIN
    PLUG-DRAIN
  • 7
    13-35048 LOCKWASHER (3/8 IN.)
    LOCKWASHER (3/8 IN.)
  • 8
    814864A2 RESERVOIR ASSEMBLY
    RESERVOIR ASSEMBLY
  • -
    22-328022 PLUG
    PLUG
  • -
    27-95688 GASKET-END COVER
    GASKET-END COVER
  • -
    816638 COVER-END
    COVER-END
  • -
    10-814877 SCREW-END COVER
    SCREW-END COVER
  • 9
    36-808108 CAP
    CAP
  • 10
    27-71614 GASKET
    GASKET
  • 11
    54-815504388 CLAMP
    CLAMP
  • 12
    44441A3 BRACKET-MOUNTING
    BRACKET-MOUNTING
  • 13
    772231 PAD
    PAD
  • 14
    23-807002T SPACER
    SPACER
  • 15
    10-47461 SCREW (7/16-14 X 1IN.)
    SCREW (7/16-14 X 1IN.)
  • 15
    10-37269 SCREW (7/16-14 X 2 IN.)
    SCREW (7/16-14 X 2 IN.)
  • 16
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 17
    71587A10 RECOVERY KIT-COOLANT
    (SEE NOTE)
    RECOVERY KIT-COOLANT
    (SEE NOTE)
  • 18
    71587A11 BOTTLE
    BOTTLE
  • 19
    72058 CAP
    CAP
  • 20
    32-973853 HOSE-THERMOSTAT COVER TO EXHAUST MANIFOLD
    (PORT)
    HOSE-THERMOSTAT COVER TO EXHAUST MANIFOLD
    (PORT)
  • 21
    32-897301 HOSE-THERMOSTAT COVER TO EXHAUST MANIFOLD
    (STARBOARD)
    HOSE-THERMOSTAT COVER TO EXHAUST MANIFOLD
    (STARBOARD)
  • 22
    54-815504220 CLAMP
    CLAMP
  • 23
    32-805106 HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (STARBOARD) (IN-LINE)
    HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (STARBOARD) (IN-LINE)
  • 23
    32-8M0062614 HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (STARBOARD) (V-DRIVE)
    HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (STARBOARD) (V-DRIVE)
  • 24
    32-897190 HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (PORT) (IN-LINE)
    HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (PORT) (IN-LINE)
  • 24
    32-919541 HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (PORT) (V-DRIVE)
    HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (PORT) (V-DRIVE)
  • 25
    22-36305T ELBOW-EXHAUST MANIFOLD - TOP (90 DEGREE)
    ELBOW-EXHAUST MANIFOLD - TOP (90 DEGREE)
  • 26
    32-8M0062665 HOSE- TEE FITTING TO RESERVOIR
    HOSE- TEE FITTING TO RESERVOIR
  • 27
    22-55133 TEE FITTING
    TEE FITTING
  • 28
    32-8174393 HOSE-TEE FITTING TO EXHAUST ELBOW
    (PORT) (IN-LINE)
    HOSE-TEE FITTING TO EXHAUST ELBOW
    (PORT) (IN-LINE)
  • 28
    32-806994 HOSE-TEE FITTING TO EXHAUST ELBOW
    (PORT) (V-DRIVE)
    HOSE-TEE FITTING TO EXHAUST ELBOW
    (PORT) (V-DRIVE)
  • 29
    32-8174381 HOSE-TEE FITTING TO EXHAUST ELBOW
    (STARBOARD)
    HOSE-TEE FITTING TO EXHAUST ELBOW
    (STARBOARD)
  • 30
    32-8215081 HOSE-RESERVOIR TO CIRCULATING WATER PUMP
    HOSE-RESERVOIR TO CIRCULATING WATER PUMP
  • 31
    54-815504232 CLAMP
    CLAMP
  • 32
    32-19081 HOSE-OIL COOLER TO OIL COOLER
    (IN-LINE)
    HOSE-OIL COOLER TO OIL COOLER
    (IN-LINE)
  • 32
    32-814749 HOSE-OIL COOLER TO OIL COOLER
    (V-DRIVE)
    HOSE-OIL COOLER TO OIL COOLER
    (V-DRIVE)
  • 33
    32-19226 HOSE-OIL COOLER TO RESERVOIR
    HOSE-OIL COOLER TO RESERVOIR
  • 34
    32-821417 HOSE-SEA WATER PUMP TO OIL COOLER
    HOSE-SEA WATER PUMP TO OIL COOLER
  • 35
    32-897145 HOSE-SEA WATER PUMP INLET
    HOSE-SEA WATER PUMP INLET
  • 36
    54-64489 CLAMP-HOSE
    CLAMP-HOSE
  • 37
    10-65746 SCREW (1/4-20 X 3/4 IN.)
    SCREW (1/4-20 X 3/4 IN.)
  • 38
    12-69057 WASHER
    WASHER
  • -
    27-850470A96 GASKET SET-OVERHAUL
    GASKET SET-OVERHAUL
