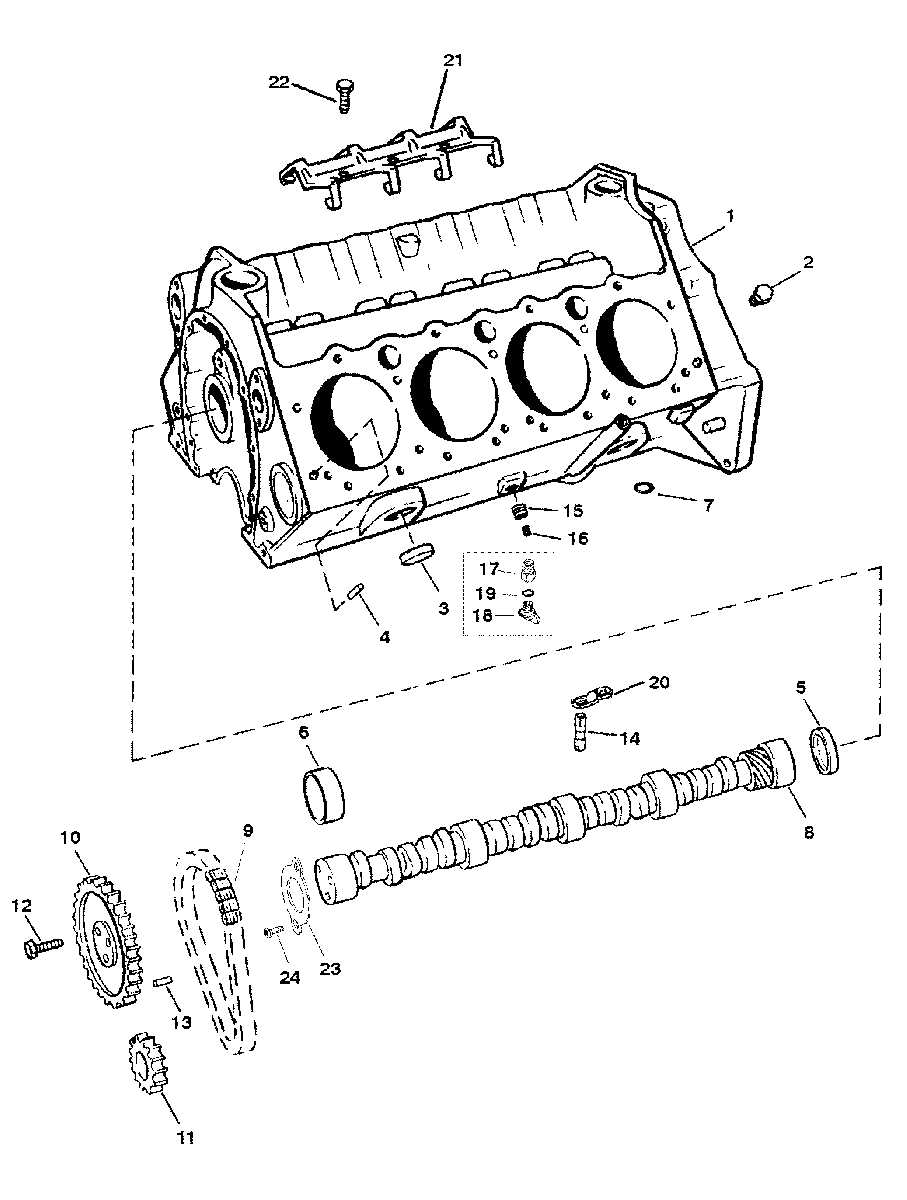

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 7.4L MIE (LH) GEN. VI GM 454 V-8 1996-1997 0F820142 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    NSS CYLINDER BLOCK
    (ORDER LONG BLOCK 807739A1)
    CYLINDER BLOCK
    (ORDER LONG BLOCK 807739A1)
  • 2
    22-32561 PLUG-PIPE (1/4 IN.)
    PLUG-PIPE (1/4 IN.)
  • 2
    22-12524 PLUG-PIPE (3/8 IN.)
    PLUG-PIPE (3/8 IN.)
  • 3
    19-34270 PLUG-EXPANSION (1-5/8 IN. DIA.)
    PLUG-EXPANSION (1-5/8 IN. DIA.)
  • 4
    17-52190 PIN-DOWEL
    PIN-DOWEL
  • 5
    19-94140 PLUG-EXPANSION (REAR CAMSHAFT HOLE)
    PLUG-EXPANSION (REAR CAMSHAFT HOLE)
  • 6
    23-85684 BEARING SET
    BEARING SET
  • 7
    25-69756 O-RING (1/2 IN. DIA.) (REAR MAIN CAP OIL PASSAGE)
    O-RING (1/2 IN. DIA.) (REAR MAIN CAP OIL PASSAGE)
  • 8
    431-850453T CAMSHAFT
    CAMSHAFT
  • 9
    845796T CHAIN-TIMING
    CHAIN-TIMING
  • 10
    43-845795T SPROCKET-CAMSHAFT
    SPROCKET-CAMSHAFT
  • 11
    43-845794T SPROCKET-CRANKSHAFT
    SPROCKET-CRANKSHAFT
  • 12
    10-8M0043993 SCREW (5/16-18 X 3/4 IN.)
    SCREW (5/16-18 X 3/4 IN.)
  • 13
    17-843378 PIN-DOWEL (1/4 IN. DIA.)
    PIN-DOWEL (1/4 IN. DIA.)
  • 14
    850467 LIFTER-ROLLER
    LIFTER-ROLLER
  • 15
    22-48556 BUSHING-REDUCER
    BRASS DRAIN PLUG
    BUSHING-REDUCER
    BRASS DRAIN PLUG
  • 16
    22-328022 PLUG-PIPE (1/8 IN.)
    BRASS DRAIN PLUG
    PLUG-PIPE (1/8 IN.)
    BRASS DRAIN PLUG
  • 17
    22-860088 BUSHING-REDUCER
    PLASTIC DRAIN PLUG
    BUSHING-REDUCER
    PLASTIC DRAIN PLUG
  • 18
    22-8M0119211 PLUG-DRAIN
    PLASTIC DRAIN PLUG
    PLUG-DRAIN
    PLASTIC DRAIN PLUG
  • 19
    25-32509 QUAD RING
    PLASTIC DRAIN PLUG
    QUAD RING
    PLASTIC DRAIN PLUG
  • 20
    845754 GUIDE-LIFTER
    GUIDE-LIFTER
  • 21
    8M0050807 RETAINER-LIFTER GUIDE
    RETAINER-LIFTER GUIDE
  • 22
    10-841389 SCREW-RETAINER
    SCREW-RETAINER
  • 23
    845941 RETAINER-CAMSHAFT
    RETAINER-CAMSHAFT
  • 24
    10-845943 BOLT (1/4-20 X 1/2 IN.)
    BOLT (1/4-20 X 1/2 IN.)
  • -
    807739R5 MARINE LONG BLOCK ENGINE
    (SEE NOTE)
    MARINE LONG BLOCK ENGINE
    (SEE NOTE)
  • -
    27-850470A96 GASKET SET
    GASKET SET
  • -
    92-809825 SEALER-RED RTV
    SEALER-RED RTV
  • -
    92-34227Q02 PERFECT SEAL
    PERFECT SEAL
