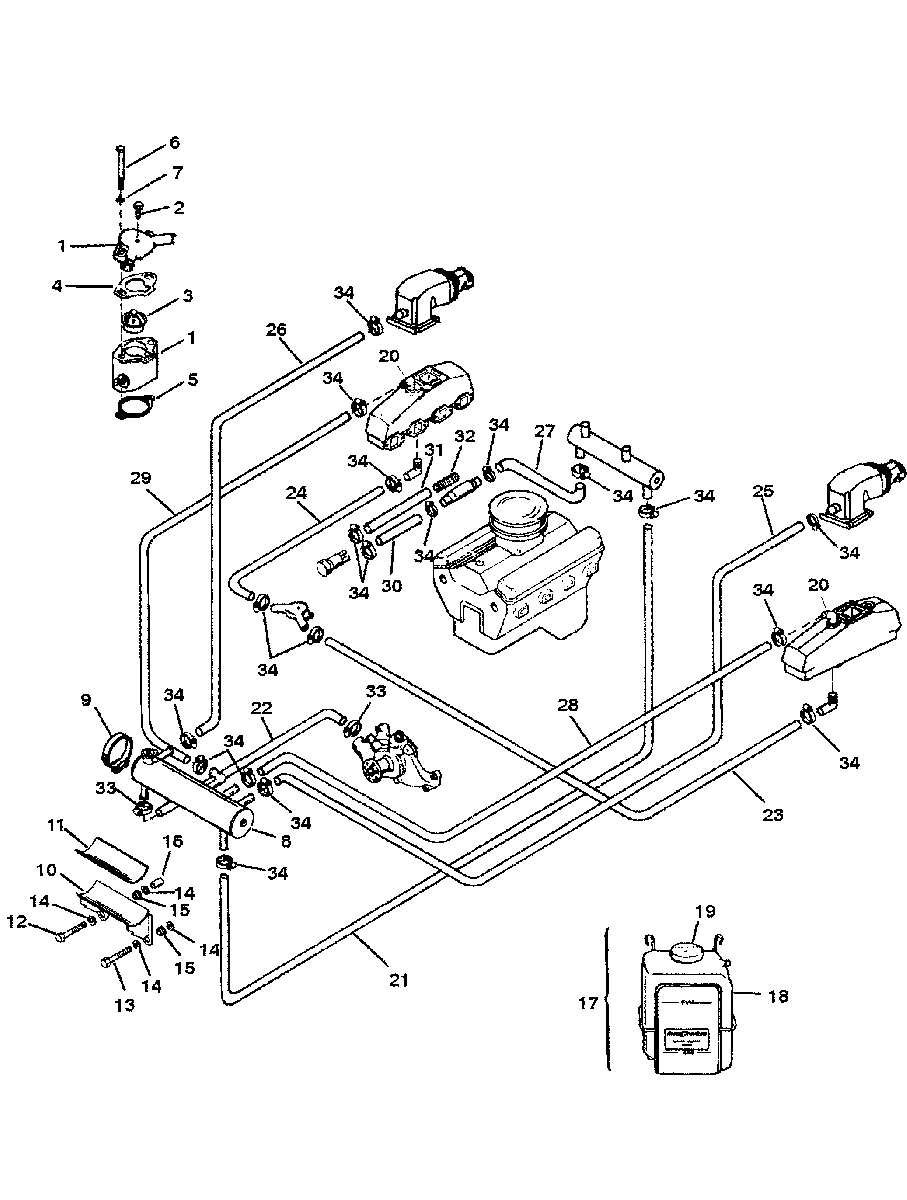

CLOSED COOLING (FRONT MOUNTED) для Mercruiser - 7.4L MIE (LH) GEN. VI GM 454 V-8 1996-1997 0F820142 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    55131A5 HOUSING AND COVER-THERMOSTAT
    HOUSING AND COVER-THERMOSTAT
  • 2
    22-328022 PLUG-DRAIN
    PLUG-DRAIN
  • 3
    8M0109441 THERMOSTAT (160 DEGREE)
    THERMOSTAT (160 DEGREE)
  • 4
    27-488181 GASKET (UPPER)
    GASKET (UPPER)
  • 5
    27-530451 GASKET (LOWER)
    GASKET (LOWER)
  • 6
    10-48115 SCREW (3/8-16 X 3-1/2 IN.)
    SCREW (3/8-16 X 3-1/2 IN.)
  • 7
    13-35048 LOCKWASHER (3/8 IN.)
    LOCKWASHER (3/8 IN.)
  • 8
    805136T RESERVOIR
    RESERVOIR
  • -
    22-36382 PLUG-DRAIN
    PLUG-DRAIN
  • -
    8M0036623 END COVER
    END COVER
  • -
    27-8M0036987 GASKET
    GASKET
  • -
    10-814877 BOLT
    BOLT
  • -
    25-8M0039163 O-RING
    O-RING
  • -
    36-808108 CAP
    CAP
  • -
    27-71614 GASKET
    GASKET
  • 9
    54-815504372 CLAMP
    CLAMP
  • 10
    805034A1 BRACKET-MOUNTING
    BRACKET-MOUNTING
  • 11
    18431 PAD
    PAD
  • 12
    10-57357 SCREW (7/16-14 X 2-1/4 IN.)
    SCREW (7/16-14 X 2-1/4 IN.)
  • 13
    10-91903 SCREW (7/16-14 X 1-3/4 IN.)
    SCREW (7/16-14 X 1-3/4 IN.)
  • 14
    12-31263 WASHER
    WASHER
  • 15
    41024 MOUNT
    MOUNT
  • 16
    23-74756 SPACER
    SPACER
  • 17
    71587A10 RECOVERY KIT-COOLANT
    (SEE NOTE)
    RECOVERY KIT-COOLANT
    (SEE NOTE)
  • 18
    71587A11 BOTTLE
    BOTTLE
  • 19
    72058 CAP
    CAP
  • 20
    22-36305T ELBOW (90 DEGREE)
    ELBOW (90 DEGREE)
  • 21
    32-805055 HOSE-RESERVOIR TO OIL COOLER
    HOSE-RESERVOIR TO OIL COOLER
  • 22
    32-805138 HOSE-RESERVOIR TO CIRCULATING WATER PUMP
    HOSE-RESERVOIR TO CIRCULATING WATER PUMP
  • 23
    32-973853 HOSE-THERMOSTAT COVER TO EXHAUST MANIFOLD
    (PORT)
    HOSE-THERMOSTAT COVER TO EXHAUST MANIFOLD
    (PORT)
  • 24
    32-897301 HOSE-THERMOSTAT COVER TO EXHAUST MANIFOLD
    (STARBOARD)
    HOSE-THERMOSTAT COVER TO EXHAUST MANIFOLD
    (STARBOARD)
  • 25
    32-919542 HOSE-RESERVOIR TO EXHAUST ELBOW
    (PORT)
    HOSE-RESERVOIR TO EXHAUST ELBOW
    (PORT)
  • 25
    32-897190 HOSE-RESERVOIR TO EXHAUST RISER
    (WITH RISERS) (PORT)
    HOSE-RESERVOIR TO EXHAUST RISER
    (WITH RISERS) (PORT)
  • 25
    32-897190 HOSE-RESERVOIR TO EXHAUST ELBOW
    (V-DRIVE) (PORT)
    HOSE-RESERVOIR TO EXHAUST ELBOW
    (V-DRIVE) (PORT)
  • 25
    32-919542 HOSE-RESERVOIR TO PORT RISER
    (V-DRIVE W/RISERS)
    HOSE-RESERVOIR TO PORT RISER
    (V-DRIVE W/RISERS)
  • 26
    32-8M0062614 HOSE-RESERVOIR TO EXHAUST ELBOW
    (STARBOARD)
    HOSE-RESERVOIR TO EXHAUST ELBOW
    (STARBOARD)
  • 26
    32-897190 HOSE-RESERVOIR TO EXHAUST RISER
    (WITH RISERS) (STARBOARD)
    HOSE-RESERVOIR TO EXHAUST RISER
    (WITH RISERS) (STARBOARD)
  • 26
    32-897190 HOSE-RESERVOIR TO EXHAUST ELBOW
    (V-DRIVE) (STARBOARD)
    HOSE-RESERVOIR TO EXHAUST ELBOW
    (V-DRIVE) (STARBOARD)
  • 26
    32-919542 HOSE-RESERVOIR TO STARBOARD RISER
    (V-DRIVE W/RISERS)
    HOSE-RESERVOIR TO STARBOARD RISER
    (V-DRIVE W/RISERS)
  • 27
    32-19081 HOSE-OIL COOLER TO OIL COOLER
    HOSE-OIL COOLER TO OIL COOLER
  • 28
    32-805302 HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (PORT)
    HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (PORT)
  • 28
    32-897144 HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (V-DRIVE) (PORT)
    HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (V-DRIVE) (PORT)
  • 29
    32-805303 HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (STARBOARD)
    HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (STARBOARD)
  • 29
    32-805022 HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (V-DRIVE) (STARBOARD)
    HOSE-RESERVOIR TO EXHAUST MANIFOLD
    (V-DRIVE) (STARBOARD)
  • 30
    32-821417 HOSE-SEA WATER PUMP TO OIL COOLER
    HOSE-SEA WATER PUMP TO OIL COOLER
  • 31
    32-897145 HOSE-SEA WATER PUMP INLET
    HOSE-SEA WATER PUMP INLET
  • 32
    805135 COUPLING
    COUPLING
  • 33
    54-815504232 CLAMP
    CLAMP
  • 34
    54-815504220 CLAMP
    CLAMP
  • -
    27-850470A96 GASKET SET-OVERHAUL
    GASKET SET-OVERHAUL
