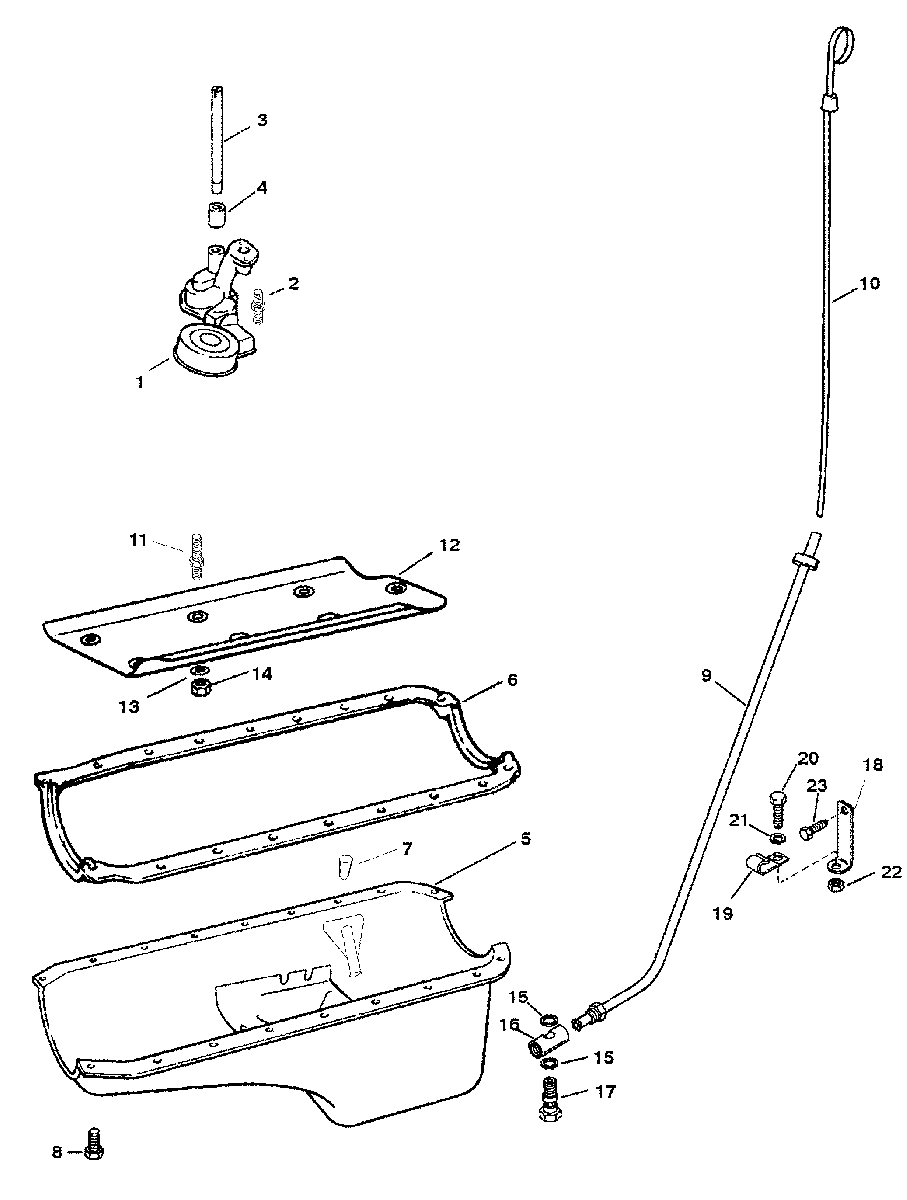

OIL PAN AND OIL PUMP для Mercruiser - 7.4L MIE (LH) GEN. VI GM 454 V-8 1996-1997 0F820142 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    827643 PUMP ASSEMBLY-OIL
    PUMP ASSEMBLY-OIL
  • 2
    16-845599 STUD-OIL PUMP MOUNTING
    STUD-OIL PUMP MOUNTING
  • 3
    8M0046892 SHAFT
    SHAFT
  • 4
    23-36183 RETAINER
    RETAINER
  • 5
    845668T OIL PAN
    OIL PAN
  • 6
    27-845628 GASKET-OIL PAN
    GASKET-OIL PAN
  • 7
    19-818841 PLUG-OIL PAN DIPSTICK HOLE
    PLUG-OIL PAN DIPSTICK HOLE
  • 8
    10-841389 SCREW (5/16-18 X 5/8 IN.)
    SCREW (5/16-18 X 5/8 IN.)
  • 9
    805162T1 TUBE-DIPSTICK
    (PORT)
    TUBE-DIPSTICK
    (PORT)
  • 9
    805162T TUBE-DIPSTICK
    (STARBOARD)
    TUBE-DIPSTICK
    (STARBOARD)
  • 10
    861942T5 DIPSTICK
    (HURTH & BORG WARNER 5000)
    DIPSTICK
    (HURTH & BORG WARNER 5000)
  • 10
    861942T4 DIPSTICK
    (BORG WARNER 72)
    DIPSTICK
    (BORG WARNER 72)
  • 11
    16-843375 STUD
    STUD
  • 12
    843945T BAFFLE
    BAFFLE
  • 13
    12-49112 WASHER
    WASHER
  • 14
    11-37500 NUT (3/8-16)
    NUT (3/8-16)
  • 15
    27-8M0077608 GASKET-BANJO FITTING
    GASKET-BANJO FITTING
  • 16
    821504 FITTING-BANJO
    FITTING-BANJO
  • 17
    807497 BOLT-BANJO
    BOLT-BANJO
  • 18
    48134 BRACKET
    BRACKET
  • 19
    54-92338 CLIP
    CLIP
  • 20
    10-54630 SCREW (5/16-24 X 5/8 IN.)
    SCREW (5/16-24 X 5/8 IN.)
  • 21
    13-39107 LOCKWASHER (5/16 IN.)
    LOCKWASHER (5/16 IN.)
  • 22
    11-22053 NUT (5/16-24)
    NUT (5/16-24)
  • 23
    10-98260 SCREW (3/8-16 X 5/8 IN.)
    SCREW (3/8-16 X 5/8 IN.)
  • -
    27-850470A96 GASKET SET-OVERHAUL
    GASKET SET-OVERHAUL
