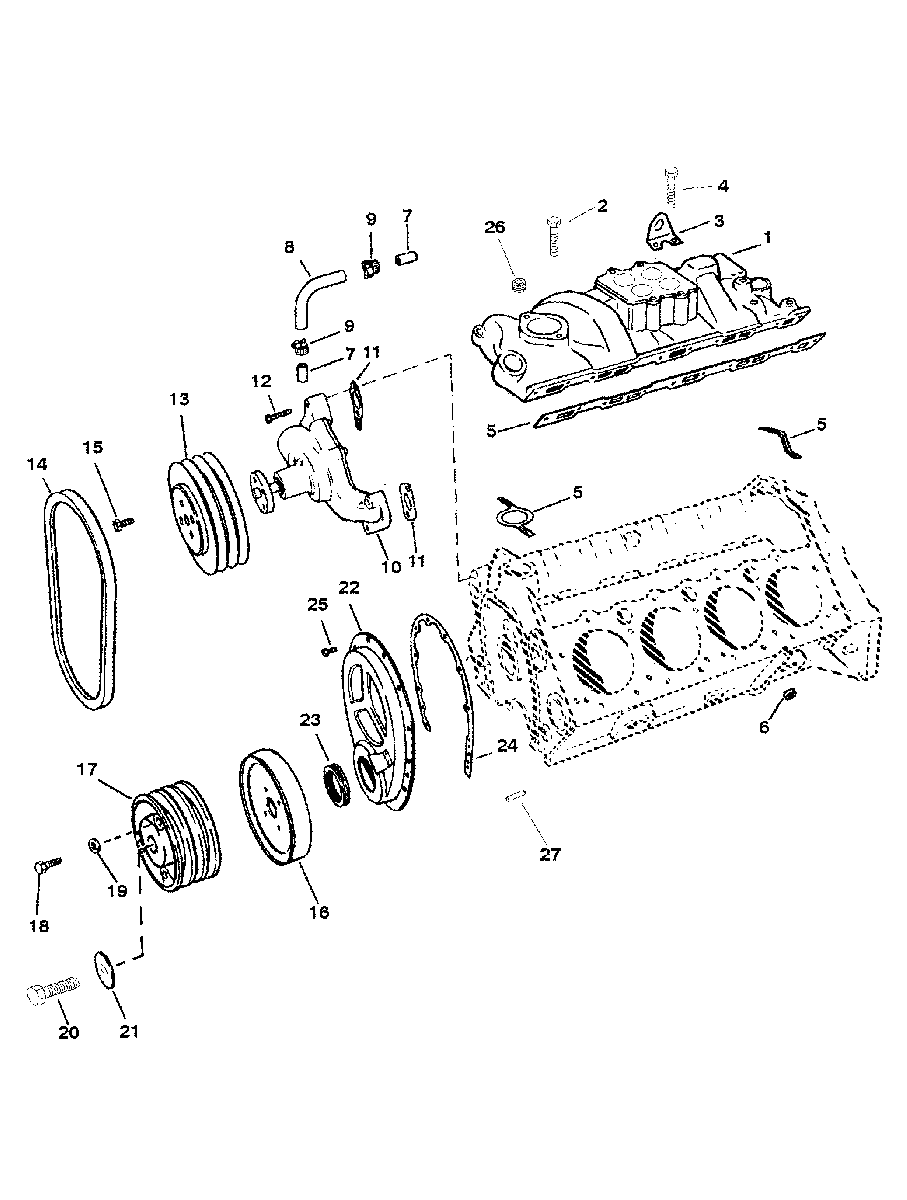

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 7.4L MIE (LH) GEN. VI GM 454 V-8 1996-1997 0F820142 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    811575T MANIFOLD-INTAKE
    MANIFOLD-INTAKE
  • 2
    10-802655 SCREW (3/8-16 X 1-1/4 IN.)
    SCREW (3/8-16 X 1-1/4 IN.)
  • 2
    10-805611 SCREW (3/8-16 X 1-3/4 IN.)
    SCREW (3/8-16 X 1-3/4 IN.)
  • 3
    54-64628 LIFTING EYE
    LIFTING EYE
  • 4
    10-34354 SCREW (3/8-16 X 1-1/2 IN.)
    SCREW (3/8-16 X 1-1/2 IN.)
  • 5
    27-8M0050225 GASKET SET-INTAKE MANIFOLD
    GASKET SET-INTAKE MANIFOLD
  • 6
    34543 VALVE-OIL BY-PASS
    VALVE-OIL BY-PASS
  • 7
    22-806242 CONNECTOR-THERMOSTAT BY-PASS HOSE
    CONNECTOR-THERMOSTAT BY-PASS HOSE
  • 8
    32-805987 HOSE-THERMOSTAT BY-PASS
    HOSE-THERMOSTAT BY-PASS
  • 9
    54-815504412 CLAMP
    CLAMP
  • 10
    46-8M0113735 PUMP ASSEMBLY-CIRCULATING WATER
    PUMP ASSEMBLY-CIRCULATING WATER
  • 11
    27-49110 GASKET-WATER PUMP
    GASKET-WATER PUMP
  • 12
    10-805611 SCREW (3/8-16 X 1-3/4 IN.)
    SCREW (3/8-16 X 1-3/4 IN.)
  • 13
    19692T01 PULLEY-WATER PUMP
    PULLEY-WATER PUMP
  • 14
    57-48122Q BELT
    BELT
  • 15
    10-47277 SCREW (5/16-24 X 3/4 IN.)
    SCREW (5/16-24 X 3/4 IN.)
  • 16
    8M0082186 HARMONIC BALANCER
    HARMONIC BALANCER
  • 17
    90081T PULLEY-CRANKSHAFT
    PULLEY-CRANKSHAFT
  • 18
    10-75334 SCREW (3/8-24 X 3 IN.)
    SCREW (3/8-24 X 3 IN.)
  • 19
    12-34714 WASHER
    WASHER
  • 20
    10-845627 BOLT (1/2-20 X 1-3/8 IN.)
    BOLT (1/2-20 X 1-3/8 IN.)
  • 21
    12-49103 WASHER
    WASHER
  • 22
    845610T COVER ASSEMBLY-TIMING CHAIN
    COVER ASSEMBLY-TIMING CHAIN
  • 23
    26-8219471 SEAL-OIL
    SEAL-OIL
  • 24
    27-850456 GASKET-TIMING CHAIN COVER
    GASKET-TIMING CHAIN COVER
  • 25
    10-850455 SCREW (1/4-20 X 1/2 IN.)
    SCREW (1/4-20 X 1/2 IN.)
  • 26
    22-12524 PLUG-INTAKE MANIFOLD
    PLUG-INTAKE MANIFOLD
  • 27
    17-843378 PIN-DOWEL
    PIN-DOWEL
  • -
    27-850470A96 GASKET SET-OVERHAUL)
    GASKET SET-OVERHAUL)
