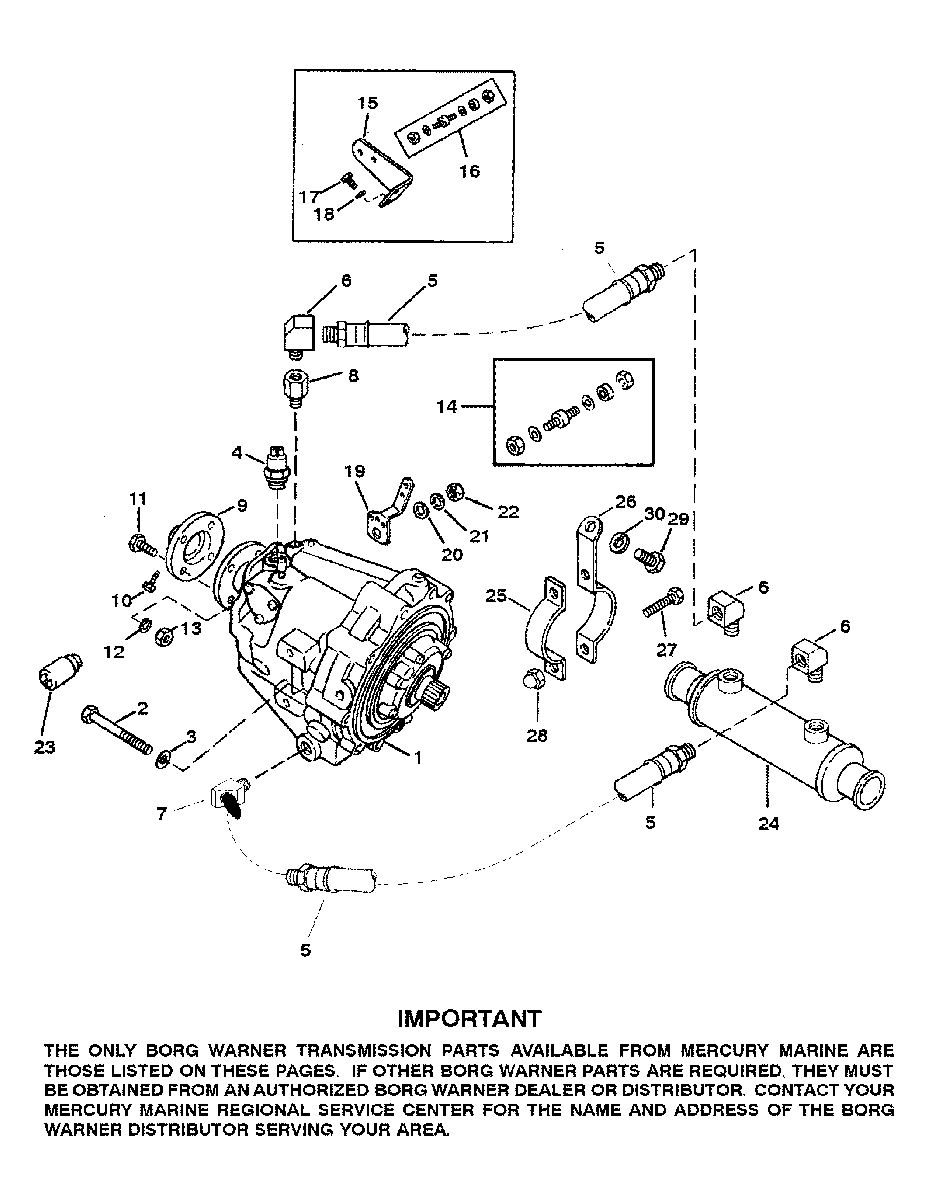

TRANSMISSION AND RELATED PARTS (BORG WARNER 72) для Mercruiser - 7.4L MIE (LH) GEN. VI GM 454 V-8 1996-1997 0F820142 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    47810A19 TRANSMISSION
    (1.1:1 RATIO)
    TRANSMISSION
    (1.1:1 RATIO)
  • 2
    10-60179 SCREW (7/16-14 X 3-1/2 IN.)
    SCREW (7/16-14 X 3-1/2 IN.)
  • 3
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 4
    87-88031 SWITCH-TEMPERATURE
    SWITCH-TEMPERATURE
  • 5
    32-475166 HOSE-OIL
    HOSE-OIL
  • 6
    22-47629 ELBOW (90 DEG.)
    ELBOW (90 DEG.)
  • 7
    22-63835 ELBOW (45 DEG.)
    ELBOW (45 DEG.)
  • 8
    22-88517 ADAPTOR
    ADAPTOR
  • 9
    79476A1 FLANGE ASSEMBLY (1 IN.)
    FLANGE ASSEMBLY (1 IN.)
  • 9
    79476A2 FLANGE ASSEMBLY (1-1/8 IN.)
    FLANGE ASSEMBLY (1-1/8 IN.)
  • 9
    79476A3 FLANGE ASSEMBLY (1-1/4 IN.)
    FLANGE ASSEMBLY (1-1/4 IN.)
  • 9
    79476A4 FLANGE ASSEMBLY (1-3/8 IN.)
    FLANGE ASSEMBLY (1-3/8 IN.)
  • 9
    79476A5 FLANGE ASSEMBLY (1-1/2 IN.)
    FLANGE ASSEMBLY (1-1/2 IN.)
  • 9
    79476A6 FLANGE ASSEMBLY (1-3/4 IN.)
    FLANGE ASSEMBLY (1-3/4 IN.)
  • 9
    79476A7 FLANGE ASSEMBLY (2 IN.)
    FLANGE ASSEMBLY (2 IN.)
  • 10
    10-60171 SCREW (3/8-16 X 1-1/4 IN.)
    SCREW (3/8-16 X 1-1/4 IN.)
  • 10
    10-60169 SCREW (3/8-16 X 3/4 IN.)
    SCREW (3/8-16 X 3/4 IN.)
  • 11
    10-805159 SCREW (7/16-20 X 1-1/2 IN.)
    SCREW (7/16-20 X 1-1/2 IN.)
  • 12
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 13
    11-22024 NUT (7/16-20)
    NUT (7/16-20)
  • 14
    16-97477A3 STUD KIT
    STUD KIT
  • 15
    18351A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 16
    16-97477A3 STUD KIT
    STUD KIT
  • 17
    10-54615 SCREW (1/4-20 X 5/8 IN.)
    SCREW (1/4-20 X 5/8 IN.)
  • 18
    13-26992 LOCKWASHER (1/4 IN.)
    LOCKWASHER (1/4 IN.)
  • 19
    43325 LEVER-SHIFT
    LEVER-SHIFT
  • 20
    12-20722 WASHER
    WASHER
  • 21
    13-26993 LOCKWASHER (5/16 IN.)
    LOCKWASHER (5/16 IN.)
  • 22
    11-22053 NUT (5/16-24)
    NUT (5/16-24)
  • 23
    47613 SWITCH-NEUTRAL SAFETY
    SWITCH-NEUTRAL SAFETY
  • 24
    63832T COOLER-TRANSMISSION OIL
    COOLER-TRANSMISSION OIL
  • 25
    56328A1 BRACKET (SHORT)
    BRACKET (SHORT)
  • 26
    63820T1 BRACKET (LONG)
    BRACKET (LONG)
  • 27
    10-60300 SCREW (1/4-20 X 3/4 IN.)
    SCREW (1/4-20 X 3/4 IN.)
  • 28
    11-30506 NUT
    NUT
  • 29
    10-47258 SCREW (5/16-18 X 5/8 IN.)
    SCREW (5/16-18 X 5/8 IN.)
  • 30
    13-39107 LOCKWASHER (5/16 IN.)
    LOCKWASHER (5/16 IN.)
