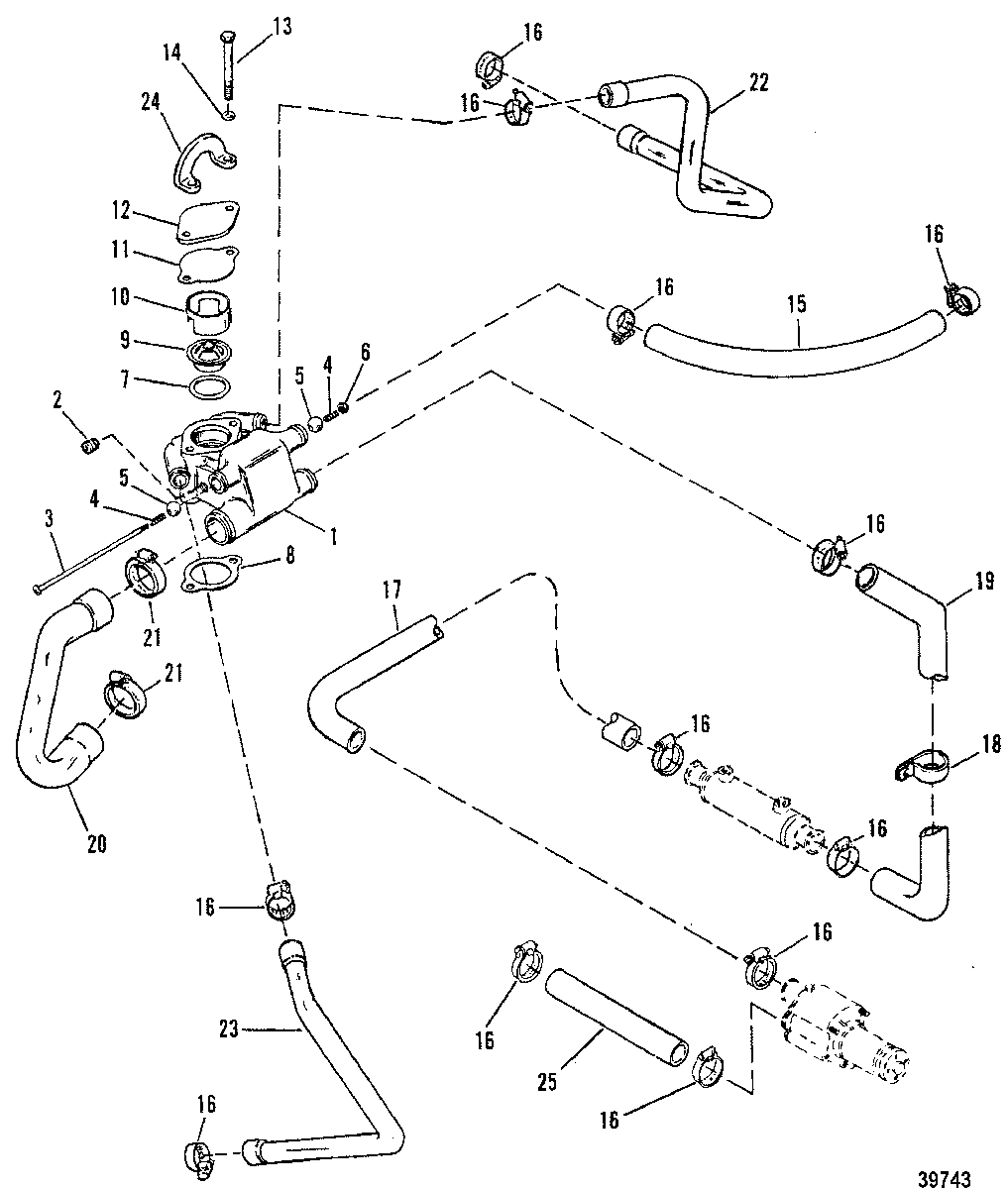

THERMOSTAT HOUSING(NEW DESIGN) для Mercruiser - 7.4L BRAVO GM 454 V-8 1988-1991 0B771113 THRU 0D603117

  • №
    Артикул
    Название
  • 1
    16413A3 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    10-17989 SCREW, (#10-32 x 8.600)
    SCREW, (#10-32 x 8.600)
  • 4
    24-75533 SPRING
    SPRING
  • 5
    30-98475 BALL, Nylon
    BALL, Nylon
  • 6
    11-826709106 NUT, (#10-32)
    NUT, (#10-32)
  • 7
    25-30224 O-RING, (1.859 x .139)
    O-RING, (1.859 x .139)
  • 8
    27-530451 GASKET
    GASKET
  • 9
    8M0089715 THERMOSTAT, (140 Degrees) (143 Degrees)
    THERMOSTAT, (140 Degrees) (143 Degrees)
  • 10
    23-806922 SLEEVE
    SLEEVE
  • 11
    27-331792 GASKET
    GASKET
  • 12
    17494A1 COVER KIT
    COVER KIT
  • 13
    10-60410 SCREW, (.375-16 x 4.250)
    SCREW, (.375-16 x 4.250)
  • 14
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 15
    32-8M0062614 HOSE, (48.00 Inches Bulk) (STARBOARD/PORT)
    (Used with Cast Iron Exhaust Elbow)
    HOSE, (48.00 Inches Bulk) (STARBOARD/PORT)
    (Used with Cast Iron Exhaust Elbow)
  • 15
    32-8M0062614 HOSE, (48.00 Inches Bulk) (STARBOARD)
    (Used with Stainless Steel Exhaust Elbow)
    HOSE, (48.00 Inches Bulk) (STARBOARD)
    (Used with Stainless Steel Exhaust Elbow)
  • 15
    32-817433 HOSE (MOLDED - PORT)
    (Used with Stainless Steel Exhaust Elbow)
    HOSE (MOLDED - PORT)
    (Used with Stainless Steel Exhaust Elbow)
  • 16
    54-815504220 CLAMP
    CLAMP
  • 17
    32-181591 HOSE, OIL COOLER TO SEA PUMP
    HOSE, OIL COOLER TO SEA PUMP
  • 18
    54-47715 CLIP
    CLIP
  • 19
    32-16011 HOSE, Thermostat Housing, THERMOSTAT HOUSING TO OIL COOLER
    HOSE, Thermostat Housing, THERMOSTAT HOUSING TO OIL COOLER
  • 20
    32-897181 HOSE, THERMOSTAT HOUSING TO WATER PUMP
    HOSE, THERMOSTAT HOUSING TO WATER PUMP
  • 21
    54-815504232 CLAMP
    CLAMP
  • 22
    32-897491 HOSE, THERMOSTAT COVER (PORT)
    HOSE, THERMOSTAT COVER (PORT)
  • 23
    32-897301 HOSE, THERMOSTAT COVER (STARBOARD)
    HOSE, THERMOSTAT COVER (STARBOARD)
  • 24
    12552 LIFTING EYE
    LIFTING EYE
  • 25
    32-8M0062666 HOSE, (48.00 Inches Bulk), SEA PUMP TO DRIVE UNIT
    HOSE, (48.00 Inches Bulk), SEA PUMP TO DRIVE UNIT
