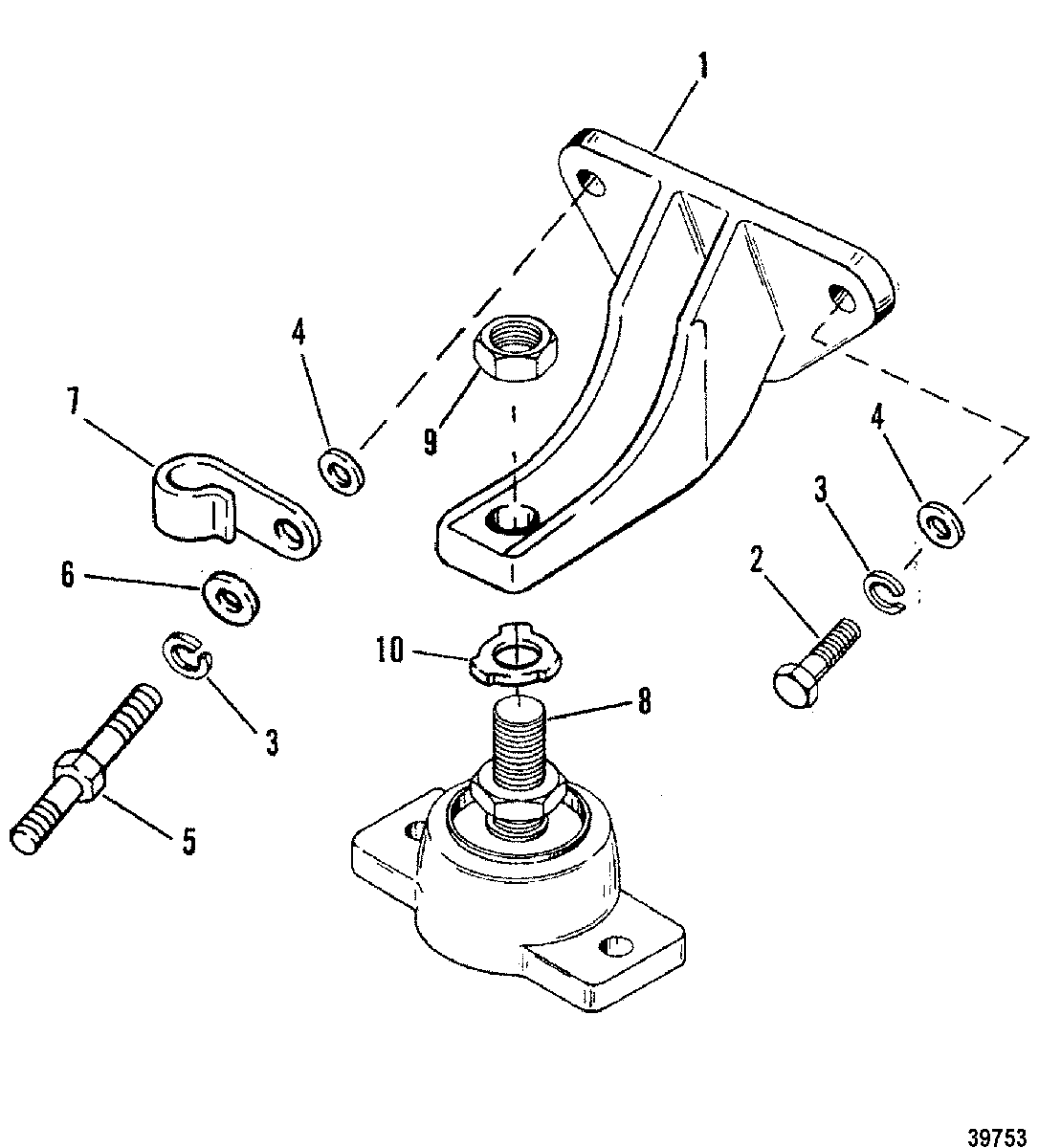

ENGINE MOUNTING(CAST BRACKET) для Mercruiser - 7.4L BRAVO GM 454 V-8 1988-1991 0B771113 THRU 0D603117

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET, MOUNTING - ENGINE (FRONT)
    BRACKET, MOUNTING - ENGINE (FRONT)
  • 2
    10-68101 SCREW, (.375-16 x 1.375), BRACKET TO ENGINE
    (PORT)
    SCREW, (.375-16 x 1.375), BRACKET TO ENGINE
    (PORT)
  • 2
    10-358701 BOLT, BRACKET TO ENGINE (2")
    (PORT)
    BOLT, BRACKET TO ENGINE (2")
    (PORT)
  • 2
    10-68101 SCREW, (.375-16 x 1.375), BRACKET TO ENGINE
    (STARBOARD)
    SCREW, (.375-16 x 1.375), BRACKET TO ENGINE
    (STARBOARD)
  • 3
    13-35048 LOCKWASHER, (.375), BRACKET STUD
    (PORT)
    LOCKWASHER, (.375), BRACKET STUD
    (PORT)
  • 3
    13-35048 LOCKWASHER, (.375), BRACKET SCREW/STUD
    (STARBOARD)
    LOCKWASHER, (.375), BRACKET SCREW/STUD
    (STARBOARD)
  • 4
    12-46132 WASHER, BRACKET SCREW
    (PORT)
    WASHER, BRACKET SCREW
    (PORT)
  • 4
    12-46132 WASHER, BRACKET SCREW
    (STARBOARD)
    WASHER, BRACKET SCREW
    (STARBOARD)
  • 5
    16-861316 STUD, (.375-16 x 2.750) Special, BRACKET TO ENGINE
    (STARBOARD)
    STUD, (.375-16 x 2.750) Special, BRACKET TO ENGINE
    (STARBOARD)
  • 6
    12-46132 WASHER, BRACKET STUD
    (STARBOARD)
    WASHER, BRACKET STUD
    (STARBOARD)
  • 7
    54-78945 J CLAMP, Harness Support
    (STARBOARD)
    J CLAMP, Harness Support
    (STARBOARD)
  • 8
    814263A1 BASE ASSEMBLY, ENGINE MOUNT
    BASE ASSEMBLY, ENGINE MOUNT
  • 9
    11-859126 NUT, JAM - ENGINE MOUNT BASE
    NUT, JAM - ENGINE MOUNT BASE
  • 10
    14-12657 TAB WASHER
    TAB WASHER
