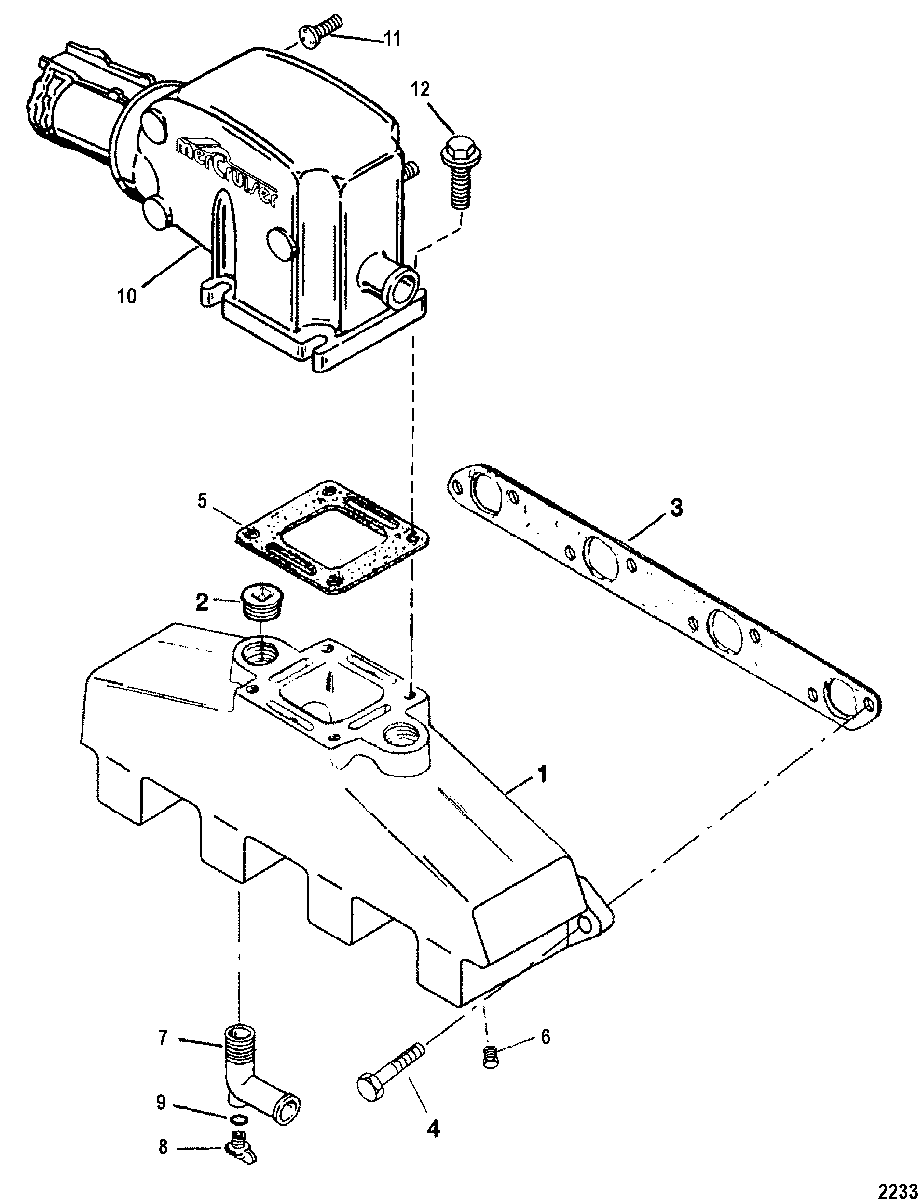

EXHAUST MANIFOLD AND EXHAUST ELBOW(STAINLESS STEEL) для Mercruiser - 7.4L BRAVO GM 454 V-8 1988-1991 0B771113 THRU 0D603117

  • №
    Артикул
    Название
  • 1
    807078T10 MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 2
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 3
    27-46820 GASKET
    GASKET
  • 4
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 4
    10-48424 SCREW, (.375-16 x 1.620)
    SCREW, (.375-16 x 1.620)
  • 5
    27-863724 GASKET (STANDARD COOLING)
    GASKET (STANDARD COOLING)
  • 6
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 7
    22-36305T ELBOW, (90 Degrees) (90 Degrees)
    ELBOW, (90 Degrees) (90 Degrees)
  • 7
    22-866725 FITTING, Straight (STRAIGHT)
    FITTING, Straight (STRAIGHT)
  • 8
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue, DRAIN
    PLUG KIT, (.500-13) Royal Blue, DRAIN
  • 9
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 10
    816900A5 ELBOW ASSEMBLY, Exhaust (PORT)
    ELBOW ASSEMBLY, Exhaust (PORT)
  • 10
    816900A9 ELBOW ASSEMBLY (STARBOARD)
    ELBOW ASSEMBLY (STARBOARD)
  • 11
    16-818168A1 STUD KIT (INCLUDES 3 STUDS)
    STUD KIT (INCLUDES 3 STUDS)
  • 12
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 12
    10-668631 SCREW, (3/8-16 x 2.50) (2-1/2)
    SCREW, (3/8-16 x 2.50) (2-1/2)
  • -
    93320A14 RISER KIT, Exhaust (3.00 Inch)
    Each kit contains 2 risers.
    RISER KIT, Exhaust (3.00 Inch)
    Each kit contains 2 risers.
  • -
    807477A5 RISER KIT, Exhaust (6.00 Inch)
    Each kit contains 2 risers.
    RISER KIT, Exhaust (6.00 Inch)
    Each kit contains 2 risers.
