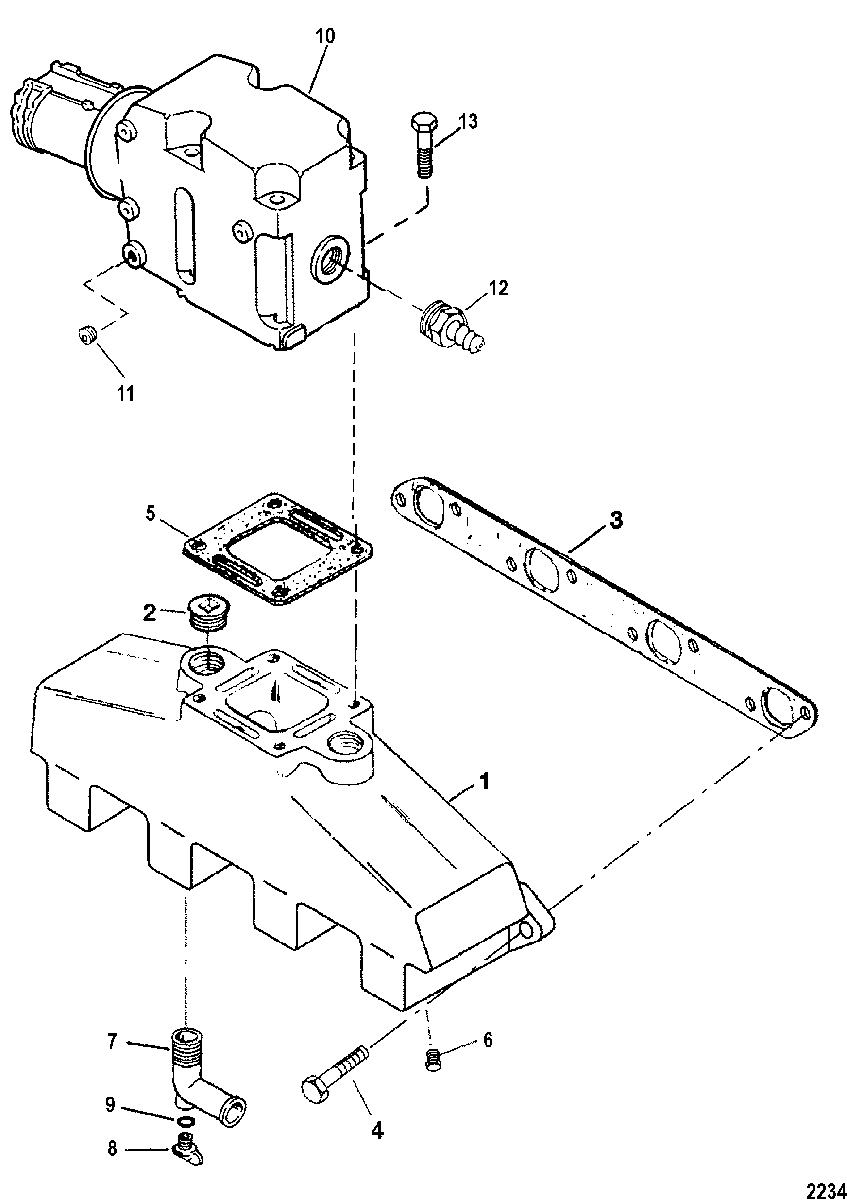

EXHAUST MANIFOLD AND EXHAUST ELBOW(CAST IRON) для Mercruiser - 7.4L BRAVO GM 454 V-8 1988-1991 0B771113 THRU 0D603117

  • №
    Артикул
    Название
  • 1
    807078T10 MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 2
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 3
    27-46820 GASKET
    GASKET
  • 4
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 4
    10-48424 SCREW, (.375-16 x 1.620)
    SCREW, (.375-16 x 1.620)
  • 5
    27-863724 GASKET (STANDARD COOLING)
    GASKET (STANDARD COOLING)
  • 6
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 7
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 8
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue, DRAIN
    PLUG KIT, (.500-13) Royal Blue, DRAIN
  • 9
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 10
    807988A03 ELBOW ASSEMBLY, Exhaust (7 Degrees)
    (See Riser Kits below for exhaust elbow extension kits)
    ELBOW ASSEMBLY, Exhaust (7 Degrees)
    (See Riser Kits below for exhaust elbow extension kits)
  • 11
    22-36382 FITTING, (.250-18 x .62) Brass
    FITTING, (.250-18 x .62) Brass
  • 12
    22-865159 FITTING, (45 Degrees) (45 Degrees )
    FITTING, (45 Degrees) (45 Degrees )
  • 12
    22-866725 FITTING, Straight (STRAIGHT)
    FITTING, Straight (STRAIGHT)
  • 13
    10-43749 SCREW, (.375-16 x 5.750)
    SCREW, (.375-16 x 5.750)
  • 13
    10-44387 SCREW, (.376-16 x 6.750)
    SCREW, (.376-16 x 6.750)
  • -
    27-65184A88 GASKET SET, Engine
    GASKET SET, Engine
  • -
    93320A13 RISER KIT, Exhaust Elbow (3 In.)
    Each kit contains 2 risers.
    RISER KIT, Exhaust Elbow (3 In.)
    Each kit contains 2 risers.
  • -
    93322A12 RISER KIT, Exhaust Elbow (6 In.)
    Each kit contains 2 risers.
    RISER KIT, Exhaust Elbow (6 In.)
    Each kit contains 2 risers.
