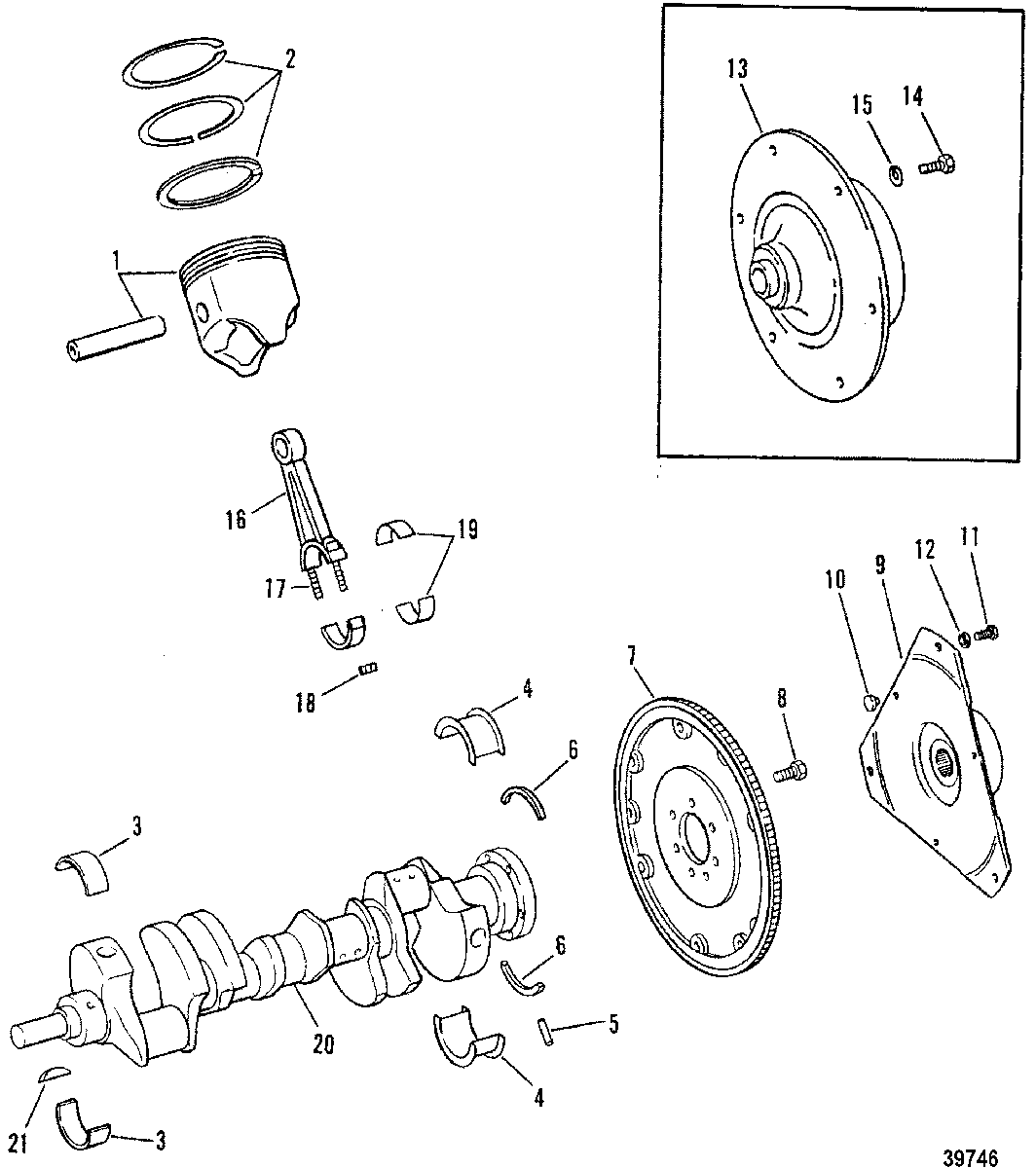

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercruiser - 7.4L BRAVO GM 454 V-8 1988-1991 0B771113 THRU 0D603117

  • №
    Артикул
    Название
  • 1
    737-879194035 PISTON ASSEMBLY (STANDARD)
    PISTON ASSEMBLY (STANDARD)
  • 1
    737-6615T1 PISTON ASSEMBLY (.030 O.S.)
    PISTON ASSEMBLY (.030 O.S.)
  • 2
    39-67127 RING SET, Piston - Standard
    RING SET, Piston - Standard
  • 2
    39-67128 RING SET, Piston - .030 Oversize
    RING SET, Piston - .030 Oversize
  • 3/4
    23-818473001 BEARING SET, Main - Standard
    BEARING SET, Main - Standard
  • 3/4
    23-818474 BEARING SET, Main - .001 Undersize
    BEARING SET, Main - .001 Undersize
  • 3/4
    23-818475 BEARING SET, Main - .002 Undersize
    BEARING SET, Main - .002 Undersize
  • 3/4
    23-818476001 BEARING SET, Main - .010 Undersize
    BEARING SET, Main - .010 Undersize
  • 3/4
    23-818477 BEARING SET, Main - .020 Undersize
    BEARING SET, Main - .020 Undersize
  • 5
    17-843378 PIN, Dowel (1/4 In. Diameter) (1/4" DIA.)
    PIN, Dowel (1/4 In. Diameter) (1/4" DIA.)
  • 6
    26-8M0062773 SEAL
    SEAL
  • 7
    200-8M0084209 FLYWHEEL
    FLYWHEEL
  • 8
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 9
    18643A7 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 10
    269011 BUMPER (OLD DESIGN)
    BUMPER (OLD DESIGN)
  • 10
    18644 BUMPER, Rubber (NEW DESIGN)
    BUMPER, Rubber (NEW DESIGN)
  • 11
    10-14883 SCREW, (.375-16 x 1.12)
    SCREW, (.375-16 x 1.12)
  • 12
    12-13510 WASHER
    WASHER
  • 13
    8M0098795 COUPLING ASSEMBLY (Round)
    COUPLING ASSEMBLY (Round)
  • 14
    10-37612 SCREW, (.375-16 x 1.250), Round
    SCREW, (.375-16 x 1.250), Round
  • 15
    12-20572 WASHER, (.390 x .750 x .093), Round
    WASHER, (.390 x .750 x .093), Round
  • 16
    614-8M0030663 CONNECTING ROD
    CONNECTING ROD
  • 17
    10-52192 BOLT
    BOLT
  • 18
    11-37493 NUT, (.375-24)
    NUT, (.375-24)
  • 19
    23-85726001 BEARING SET, Connecting Rod - Standard
    BEARING SET, Connecting Rod - Standard
  • 19
    23-85727 BEARING SET, Connecting Rod - (.001 Undersize)
    BEARING SET, Connecting Rod - (.001 Undersize)
  • 19
    23-85728 BEARING SET, Connecting Rod - (.002 Undersize)
    BEARING SET, Connecting Rod - (.002 Undersize)
  • 19
    23-85691 BEARING SET, Connecting Rod - (.010 Undersize)
    BEARING SET, Connecting Rod - (.010 Undersize)
  • 19
    23-85729 BEARING SET, Connecting Rod - (.020 Undersize)
    BEARING SET, Connecting Rod - (.020 Undersize)
  • 20
    429-6612 CRANKSHAFT
    CRANKSHAFT
  • 21
    28-34466 KEY
    KEY
