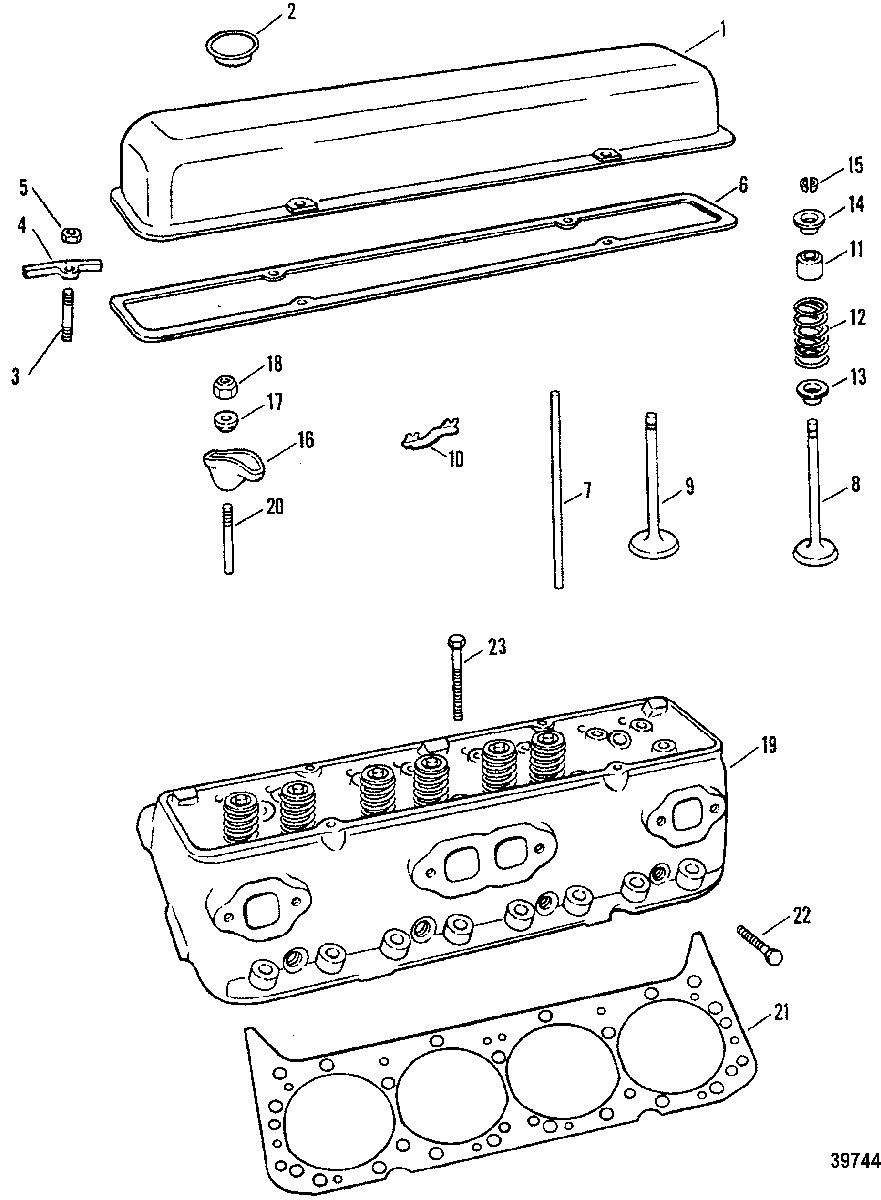

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 7.4L BRAVO GM 454 V-8 1988-1991 0B771113 THRU 0D603117

  • №
    Артикул
    Название
  • 1
    17671 COVER, ROCKER
    COVER, ROCKER
  • 2
    36-807152 CAP, Filler
    CAP, Filler
  • 3
    16-11995 STUD, ROCKER COVER
    STUD, ROCKER COVER
  • 4
    14763 REINFORCEMENT, ROCKER COVER STUD
    REINFORCEMENT, ROCKER COVER STUD
  • 4
    14764 REINFORCEMENT, ROCKER COVER STUD
    REINFORCEMENT, ROCKER COVER STUD
  • 5
    11-8M0098315 NUT, (.250-20), ROCKER COVER STUD
    NUT, (.250-20), ROCKER COVER STUD
  • 6
    27-49121 GASKET, ROCKER COVER
    GASKET, ROCKER COVER
  • 7
    75589 ROD, VALVE PUSH (INLET)
    ROD, VALVE PUSH (INLET)
  • 7
    75590 ROD, VALVE PUSH (EXHAUST)
    ROD, VALVE PUSH (EXHAUST)
  • 8
    814506 VALVE, Exhaust (STANDARD)
    VALVE, Exhaust (STANDARD)
  • 8
    814507001 VALVE, Exhaust (.015 O.S.)
    VALVE, Exhaust (.015 O.S.)
  • 9
    49134 VALVE, Intake (STANDARD)
    VALVE, Intake (STANDARD)
  • 9
    49135 VALVE, INLET (.015 O.S.)
    VALVE, INLET (.015 O.S.)
  • 10
    75979 GUIDE, PUSH ROD
    GUIDE, PUSH ROD
  • 11
    26-75988 SEAL, VALVE
    SEAL, VALVE
  • 12
    24-14754T SPRING, VALVE (INLET AND EXHAUST)
    SPRING, VALVE (INLET AND EXHAUST)
  • 13
    14755 ROTATOR, VALVE SPRING
    ROTATOR, VALVE SPRING
  • 14
    14753 CAP, VALVE
    CAP, VALVE
  • 15
    28-54530 KEY, VALVE STEM
    KEY, VALVE STEM
  • 16
    19241 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 17
    58041 BALL, ROCKER VALVE ARM
    BALL, ROCKER VALVE ARM
  • 18
    11-49119 NUT, ROCKER VALVE ARM STUD
    NUT, ROCKER VALVE ARM STUD
  • 19
    938-883491R1 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 20
    16-49133 STUD, ROCKER VALVE ARM
    STUD, ROCKER VALVE ARM
  • 21
    27-8M0049045 GASKET, Cylinder Head
    GASKET, Cylinder Head
  • 22
    8M0102366 BOLT, (2.00 Inch), CYLINDER HEAD TO CYLINDER BLOCK
    BOLT, (2.00 Inch), CYLINDER HEAD TO CYLINDER BLOCK
  • 23
    8M0102366 BOLT, (4.125 Inch), CYLINDER HEAD TO CYLINDER BLOCK
    BOLT, (4.125 Inch), CYLINDER HEAD TO CYLINDER BLOCK
  • -
    27-65184A88 GASKET SET, Engine
    GASKET SET, Engine
