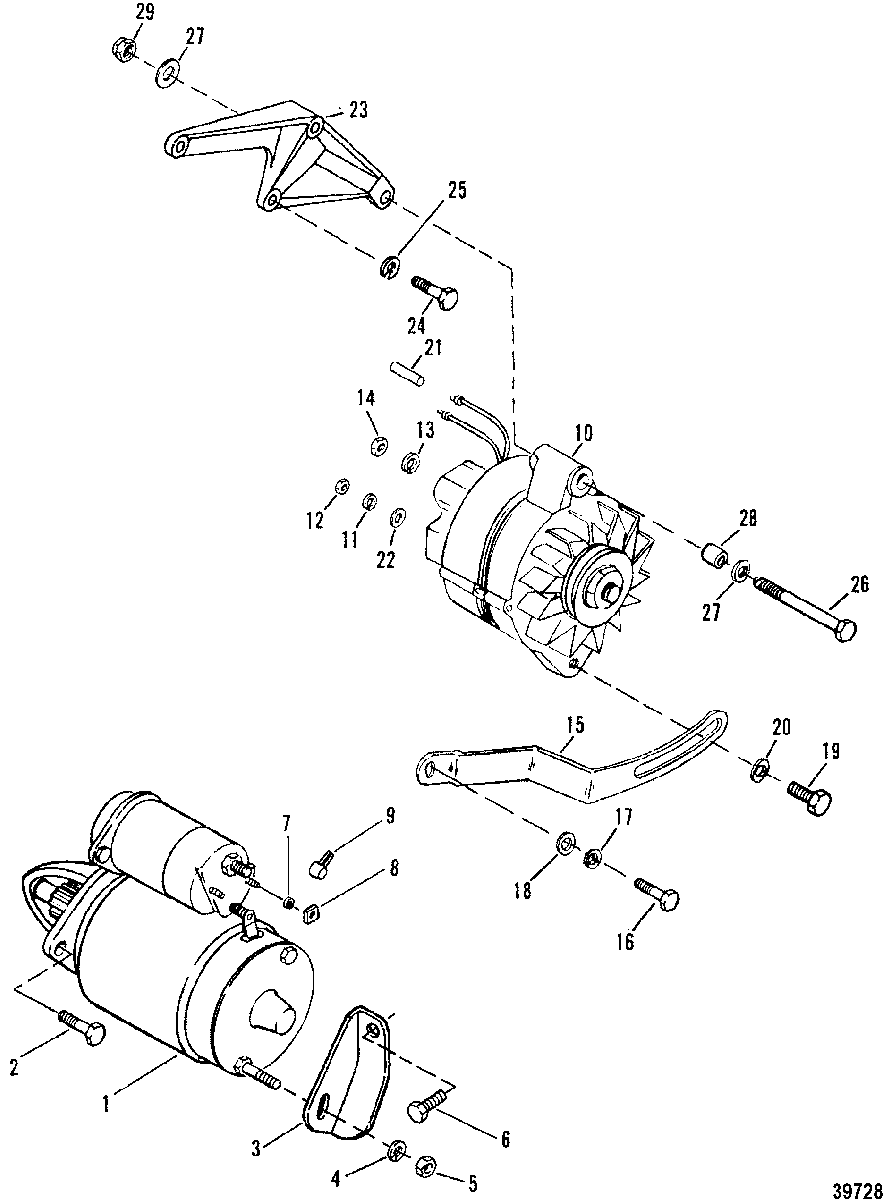

STARTER AND ALTERNATOR для Mercruiser - 7.4L BRAVO GM 454 V-8 1988-1991 0B771113 THRU 0D603117

№

Артикул

Название
1

50-863007A1 STARTER MOTOR ASSEMBLY
12" STARTER MOTOR

STARTER MOTOR ASSEMBLY
12" STARTER MOTOR
1

50-863007A1 STARTER MOTOR ASSEMBLY
8" STARTER MOTOR

STARTER MOTOR ASSEMBLY
8" STARTER MOTOR
2

10-94435001 BOLT, (.375-16 x 4.600)
12" STARTER MOTOR

BOLT, (.375-16 x 4.600)
12" STARTER MOTOR
2

10-8053432 SCREW
8" STARTER MOTOR

SCREW
8" STARTER MOTOR
3

89057 BRACE
12" STARTER MOTOR

BRACE
12" STARTER MOTOR
4

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
12" STARTER MOTOR

WASHER, (.281 x .500 x .060) Stainless Steel
12" STARTER MOTOR
5

11-8267088 NUT, (.250-20), BATTERY TERMINAL
12" STARTER MOTOR

NUT, (.250-20), BATTERY TERMINAL
12" STARTER MOTOR
5

11-15874 NUT, (M10), BATTERY TERMINAL
12" & 8" STARTER MOTOR

NUT, (M10), BATTERY TERMINAL
12" & 8" STARTER MOTOR
6

10-35765A1 SCREW AND LOCKWASHER, (.312-18 x .625), BRACE TO ENGINE
12" STARTER MOTOR

SCREW AND LOCKWASHER, (.312-18 x .625), BRACE TO ENGINE
12" STARTER MOTOR
7

13-26995 LOCKWASHER, (#8) Stainless Steel, STARTER TERMINAL
12" STARTER MOTOR

LOCKWASHER, (#8) Stainless Steel, STARTER TERMINAL
12" STARTER MOTOR
8

11-26419 NUT, (#8-32) Brass, STARTER SWITCH TERMINAL
12" STARTER MOTOR

NUT, (#8-32) Brass, STARTER SWITCH TERMINAL
12" STARTER MOTOR
8

11-400211 NUT, (M5) Stainless Steel, STARTER SWITCH TERMINAL
12" & 8" STARTER MOTOR

NUT, (M5) Stainless Steel, STARTER SWITCH TERMINAL
12" & 8" STARTER MOTOR
9

85-79695T BOOT, Insulator - Black, STARTER TERMINAL

BOOT, Insulator - Black, STARTER TERMINAL
10

817119A4 ALTERNATOR ASSEMBLY, (55 Ampere)

ALTERNATOR ASSEMBLY, (55 Ampere)
11

13-26996 LOCKWASHER, (#10) Stainless Steel, ALTERNATOR TERMINAL

LOCKWASHER, (#10) Stainless Steel, ALTERNATOR TERMINAL
12

11-79989 NUT, (#10-24) Stainless Steel

NUT, (#10-24) Stainless Steel
13

13-26992 LOCKWASHER, (.250) Stainless Steel, ALTERNATOR TERMINAL

LOCKWASHER, (.250) Stainless Steel, ALTERNATOR TERMINAL
14

11-64015 NUT, (.250-20), ALTERNATOR TERMINAL

NUT, (.250-20), ALTERNATOR TERMINAL
15

85013T BRACE, ALTERNATOR ADJUSTING

BRACE, ALTERNATOR ADJUSTING
16

10-47462 SCREW, (.437-14 x 1.250), ALTERNATOR BRACE

SCREW, (.437-14 x 1.250), ALTERNATOR BRACE
17

13-32993 LOCKWASHER, (.437), ALTERNATOR BRACE SCREW

LOCKWASHER, (.437), ALTERNATOR BRACE SCREW
18

12-31263 WASHER, ALTERNATOR BRACE SCREW

WASHER, ALTERNATOR BRACE SCREW
19

10-29198 SCREW AND LOCKWASHER, (.312-18 x .875), ALTERNATOR BRACE

SCREW AND LOCKWASHER, (.312-18 x .875), ALTERNATOR BRACE
20

12-26168 WASHER, ALTERNATOR BRACE SCREW

WASHER, ALTERNATOR BRACE SCREW
21

5790811 SLEEVE, (10.00 Inches Bulk), ALTERNATOR LEADS

SLEEVE, (10.00 Inches Bulk), ALTERNATOR LEADS
22

12-96457 WASHER, Phenolic (.27 x .81 x .062), ALTERNATOR TERMINAL

WASHER, Phenolic (.27 x .81 x .062), ALTERNATOR TERMINAL
23

806394A1 BRACKET, ALTERNATOR

BRACKET, ALTERNATOR
24

10-37612 SCREW, (.375-16 x 1.250), ALTERNATOR BRACKET

SCREW, (.375-16 x 1.250), ALTERNATOR BRACKET
24

10-34354 SCREW, (.375-16 x 1.50), ALTERNATOR BRACKET

SCREW, (.375-16 x 1.50), ALTERNATOR BRACKET
25

13-35048 LOCKWASHER, (.375), ALTERNATOR BRACKET SCREW

LOCKWASHER, (.375), ALTERNATOR BRACKET SCREW
26

10-48308 SCREW, (.375-24 x 3.750), ALTERNATOR

SCREW, (.375-24 x 3.750), ALTERNATOR
27

12-20553 WASHER, (.406 x .734 x .063), ALTERNATOR BRACKET SCREW

WASHER, (.406 x .734 x .063), ALTERNATOR BRACKET SCREW
28

23-33186 BUSHING, ALTERNATOR BRACKET SCREW

BUSHING, ALTERNATOR BRACKET SCREW
29

11-23161 NUT, (.375-24), ALTERNATOR BRACKET SCREW

NUT, (.375-24), ALTERNATOR BRACKET SCREW
