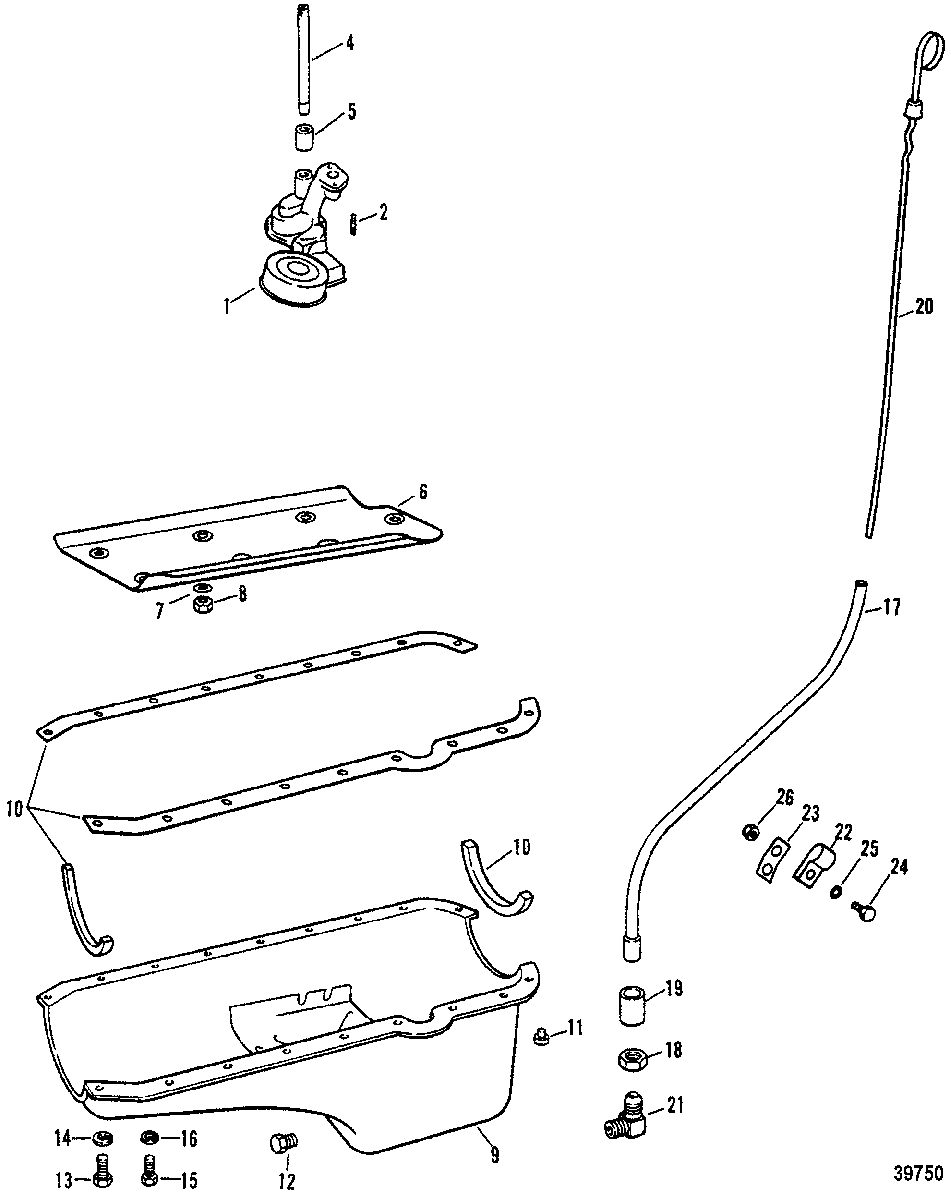

OIL PAN AND OIL PUMP(CAST OIL PAN) для Mercruiser - 7.4L BRAVO GM 454 V-8 1988-1991 0B771113 THRU 0D603117

  • №
    Артикул
    Название
  • 1
    808693A1 PUMP, Oil
    (With Pick-Up Tube)
    PUMP, Oil
    (With Pick-Up Tube)
  • 1
    808693A1 PUMP ASSEMBLY, Oil
    (Without Pick-Up Tube)
    PUMP ASSEMBLY, Oil
    (Without Pick-Up Tube)
  • NA
    809772T TUBE, Pick Up
    (Use with 808693A1)
    TUBE, Pick Up
    (Use with 808693A1)
  • 2
    16-845599 STUD, OIL PUMP TO CYLINDER BLOCK
    STUD, OIL PUMP TO CYLINDER BLOCK
  • 4
    848511 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 5
    23-52193 SLEEVE, OIL PUMP SHAFT
    SLEEVE, OIL PUMP SHAFT
  • 6
    49198 BAFFLE, OIL PAN (CYLINDER BLOCK)
    BAFFLE, OIL PAN (CYLINDER BLOCK)
  • 7
    12-49112 WASHER, OIL PAN BAFFLE/OIL PUMP STUD
    WASHER, OIL PAN BAFFLE/OIL PUMP STUD
  • 8
    11-37500 NUT, (3/8-16), OIL PAN BAFFLE/OIL PUMP STUD
    NUT, (3/8-16), OIL PAN BAFFLE/OIL PUMP STUD
  • 9
    47552A5 PAN ASSEMBLY, Oil
    PAN ASSEMBLY, Oil
  • 10
    27-52550 GASKET SET, OIL PAN
    GASKET SET, OIL PAN
  • 11
    19-47815 PLUG, RUBBER - OIL PAN
    PLUG, RUBBER - OIL PAN
  • 12
    22-32803 PLUG, PIPE - OIL DRAIN
    PLUG, PIPE - OIL DRAIN
  • 13
    10-55714 SCREW, (7/8 In.), OIL PAN (5/16-18 X 7/8")
    SCREW, (7/8 In.), OIL PAN (5/16-18 X 7/8")
  • 14
    12-23993 WASHER, OIL PAN SCREW
    WASHER, OIL PAN SCREW
  • 15
    10-55715 SCREW, (.250-20 x .880), OIL PAN
    SCREW, (.250-20 x .880), OIL PAN
  • 16
    13-26992 LOCKWASHER, (.250) Stainless Steel, OIL PAN SCREW
    LOCKWASHER, (.250) Stainless Steel, OIL PAN SCREW
  • 17
    86890A2 TUBE, OIL LEVEL GAUGE
    TUBE, OIL LEVEL GAUGE
  • 18
    11-47626 NUT, OIL LEVEL GAUGE TUBE
    NUT, OIL LEVEL GAUGE TUBE
  • 19
    22-78039 COUPLING, OIL LEVEL GAUGE TUBE
    COUPLING, OIL LEVEL GAUGE TUBE
  • 20
    49661T GAUGE, OIL LEVEL (DIPSTICK)
    GAUGE, OIL LEVEL (DIPSTICK)
  • 21
    22-47625 ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN
    ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN
  • 22
    54-92338 CLIP, OIL LEVEL TUBE
    CLIP, OIL LEVEL TUBE
  • 23
    48134 BRACKET, OIL LEVEL TUBE CLIP
    BRACKET, OIL LEVEL TUBE CLIP
  • 24
    10-54630 SCREW, (.312-24 x .625), CLIP TO BRACKET
    SCREW, (.312-24 x .625), CLIP TO BRACKET
  • 25
    13-39107 LOCKWASHER, (.312-24), CLIP SCREW
    LOCKWASHER, (.312-24), CLIP SCREW
  • 26
    11-22053 NUT, (.312-24), CLIP SCREW
    NUT, (.312-24), CLIP SCREW
