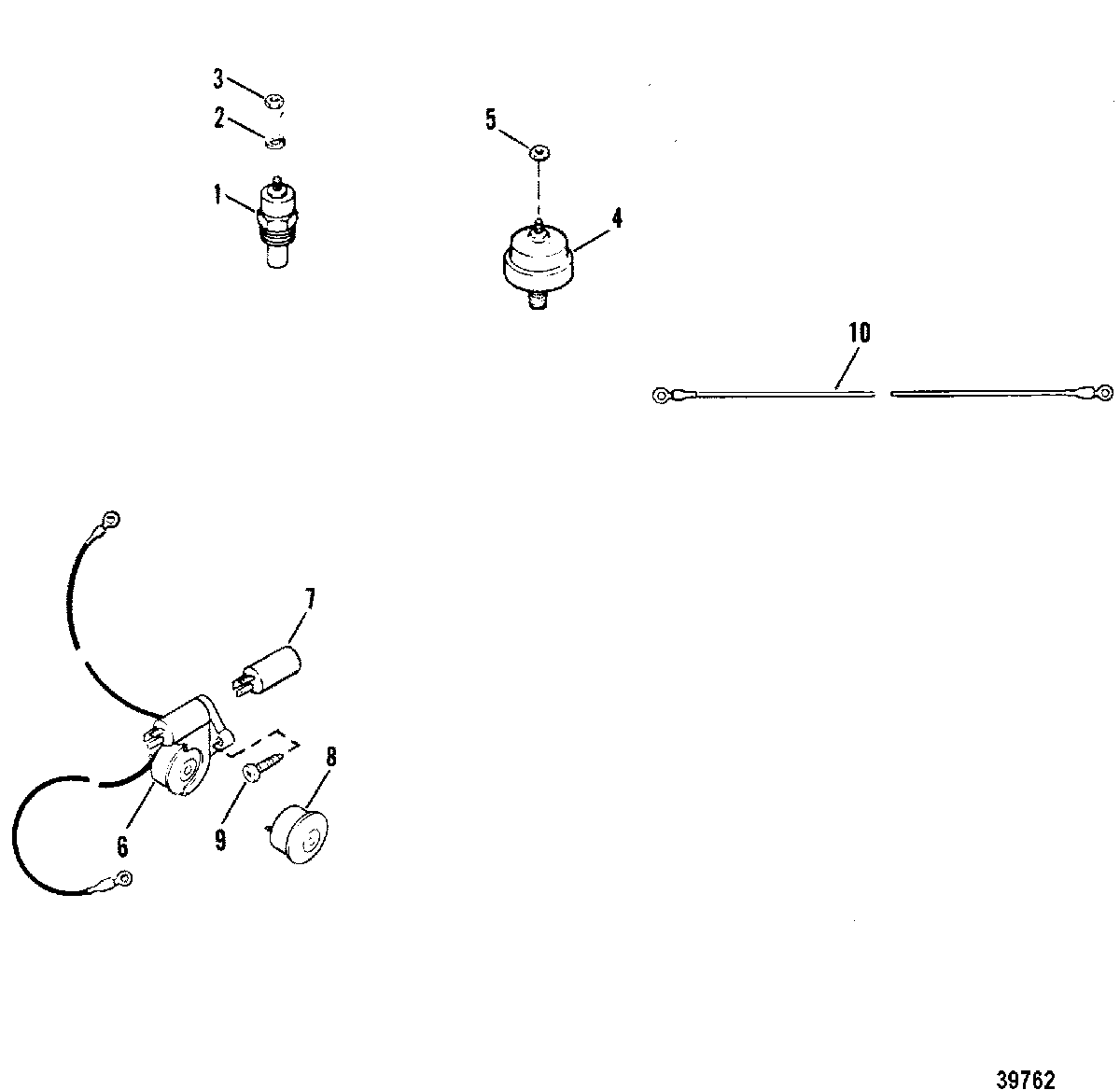

AUDIO WARING SYSTEM для Mercruiser - 7.4L BRAVO GM 454 V-8 1988-1991 0B771113 THRU 0D603117

  • №
    Артикул
    Название
  • 1
    48952 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 2
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 3
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 4
    87-805605A1 SWITCH
    SWITCH
  • 5
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 6
    816492A14 HOUSING KIT (WITHOU BULLET CONNECTORS)
    HOUSING KIT (WITHOU BULLET CONNECTORS)
  • 6
    816492A14 HOUSING KIT (WITH BULLET CONNECTORS)
    HOUSING KIT (WITH BULLET CONNECTORS)
  • 7
    816492A14 TIMER
    TIMER
  • 8
    68878A6 HORN ASSEMBLY, Buzzer Alarm
    HORN ASSEMBLY, Buzzer Alarm
  • 9
    10-69013 SCREW, (#10-16 x .880)
    SCREW, (#10-16 x .880)
  • 10
    84-86044A4 CABLE ASSEMBLY, (36 Inches ) Tan/Blue (TAN/BLUE - 36")
    CABLE ASSEMBLY, (36 Inches ) Tan/Blue (TAN/BLUE - 36")
