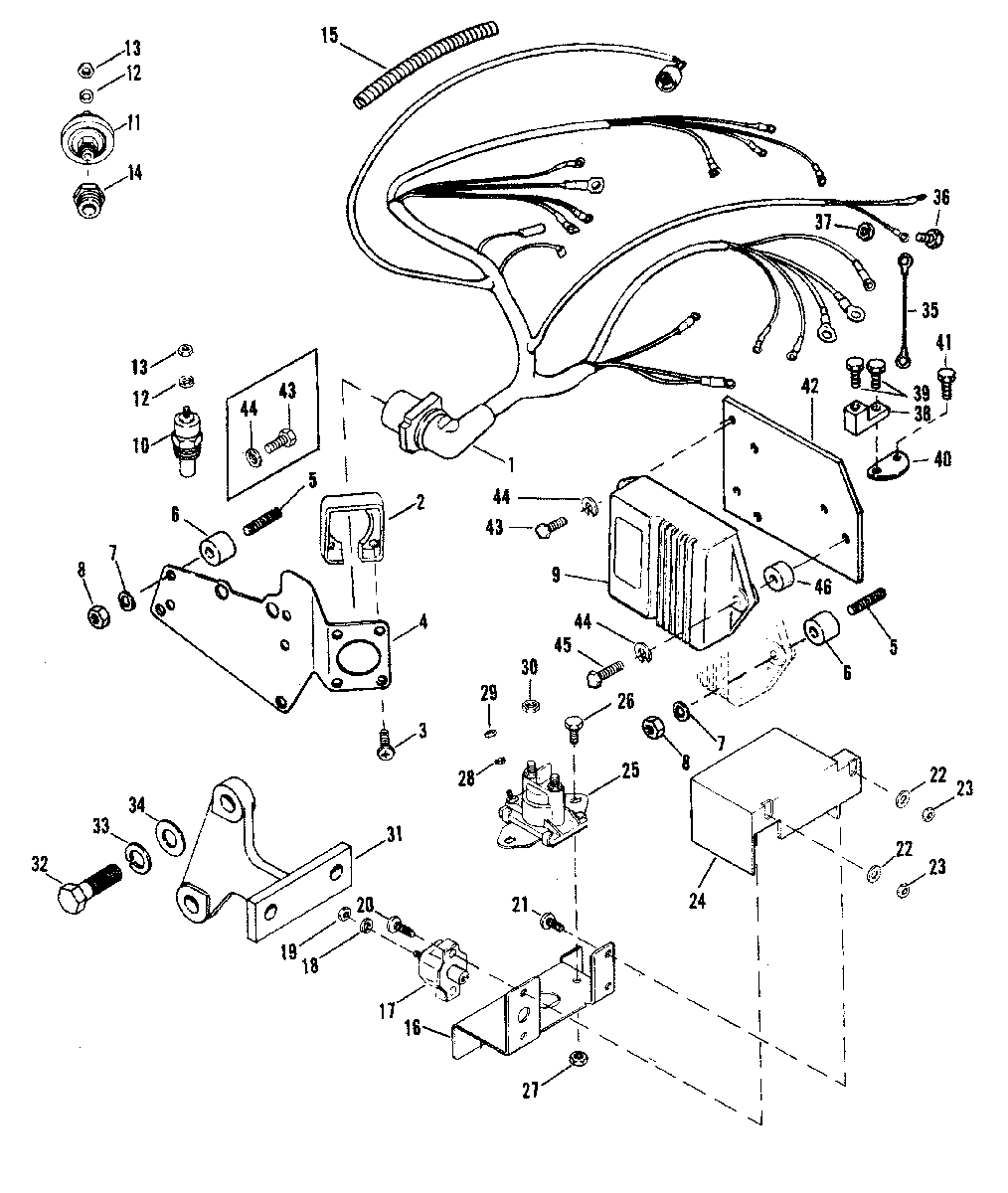

WIRING HARNESS, ELECTRICAL AND IGNITION для Mercruiser - 370 TRS GM 454 V-8 1985-1987 6721528 THRU 0B714586

  • №
    Артикул
    Название
  • 1
    84-94111A13 WIRING HARNESS
    WIRING HARNESS
  • 2
    26079A2 PLATE, WIRING HARNESS
    METAL
    PLATE, WIRING HARNESS
    METAL
  • 3
    10-34696 SCREW, PLATE (3/4")
    METAL
    SCREW, PLATE (3/4")
    METAL
  • 2
    26079A2 PLATE, WIRING HARNESS
    PLASTIC
    PLATE, WIRING HARNESS
    PLASTIC
  • 3
    10-15001 SCREW, PLATE
    PLASTIC
    SCREW, PLATE
    PLASTIC
  • 4
    98493A2 BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 5
    16-66021 STUD, BRACKET (1-3/8")
    ATTACH WITH STUDS
    STUD, BRACKET (1-3/8")
    ATTACH WITH STUDS
  • 5
    16-20353 STUD, BRACKET AND AMPLIFIER (1-3/4")
    ATTACH WITH STUDS
    STUD, BRACKET AND AMPLIFIER (1-3/4")
    ATTACH WITH STUDS
  • 6
    23-92152T SPACER, STUD
    ATTACH WITH STUDS
    SPACER, STUD
    ATTACH WITH STUDS
  • 7
    13-26992 LOCKWASHER, STUD ATTACH WITH STUDS
    LOCKWASHER, STUD ATTACH WITH STUDS
  • 8
    11-29598 NUT, STUD ATTACH WITH STUDS
    NUT, STUD ATTACH WITH STUDS
  • 9
    15248T02 IGNITION AMPLIFER
    IGNITION AMPLIFER
  • 10
    806490T WATER TEMPERATURE SENDER
    WATER TEMPERATURE SENDER
  • 10
    49734 WATER TEMPERATURE SENDER (DUAL)
    WATER TEMPERATURE SENDER (DUAL)
  • 11
    8M0068784 OIL PRESSURE SENDER
    OIL PRESSURE SENDER
  • 11
    37293T IOL PRESSURE SENDER (DUAL)
    IOL PRESSURE SENDER (DUAL)
  • 12
    13-26996 LOCKWASHER, SENDER TERMINAL (#10)
    LOCKWASHER, SENDER TERMINAL (#10)
  • 13
    11-68219 NUT, SENDER TERMINAL (#10)
    NUT, SENDER TERMINAL (#10)
  • 14
    22-12986 REDUCER, OIL PRESSURE SENDER
    REDUCER, OIL PRESSURE SENDER
  • 15
    32-77690 WRAPPING, PLASTIC (1/4 DIA)
    WRAPPING, PLASTIC (1/4 DIA)
  • 16
    97163 BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 17
    88-11178A01 CIRCUIT BREAKER (50 AMP)
    CIRCUIT BREAKER (50 AMP)
  • 18
    13-26996 LOCKWASHER, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, CIRCUIT BREAKER TERMINAL
  • 19
    11-68219 NUT, CIRCUIT BREAKER TERMINAL
    NUT, CIRCUIT BREAKER TERMINAL
  • 20
    10-45862 SCREW, CIRCUIT BREAKER (7/8")
    SCREW, CIRCUIT BREAKER (7/8")
  • 21
    10-71405 SCREW, INSULATOR (7/16")
    SCREW, INSULATOR (7/16")
  • 22
    12-56681 WASHER, CIRCUIT BREAKER SCREW
    WASHER, CIRCUIT BREAKER SCREW
  • 23
    11-46438 NUT, INSULATOR SCREW
    NUT, INSULATOR SCREW
  • 24
    85-96819T INSULATOR, CIRCUIT BREAKER
    INSULATOR, CIRCUIT BREAKER
  • 25
    89-96054T STARTER SOLENOID
    STARTER SOLENOID
  • 26
    10-96138 SCREW, STARTER SOLENOID (5/8")
    SCREW, STARTER SOLENOID (5/8")
  • 27
    11-8267089 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
  • 28
    13-26992 ;LOCKWASHER,STARTER SOLENOID TERMINAL
    ;LOCKWASHER,STARTER SOLENOID TERMINAL
  • 29
    11-26419 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 30
    11-94330 NUT, STARTER SOLENOID TERMINAL (1/4-20)
    NUT, STARTER SOLENOID TERMINAL (1/4-20)
  • 31
    96940T BRACKET, ADAPTOR
    BRACKET, ADAPTOR
  • 32
    10-37612 SCREW, ADAPTOR BRACKET TO ENGINE (1-1/4")
    3/8-16 THREAD
    SCREW, ADAPTOR BRACKET TO ENGINE (1-1/4")
    3/8-16 THREAD
  • 33
    13-35048 LOCKWASHER, ADAPTOR BRACKET SCREW
    3/8-16 THREAD
    LOCKWASHER, ADAPTOR BRACKET SCREW
    3/8-16 THREAD
  • 34
    12-20553 WASHER, ADAPTOR BRACKET SCREW
    3/8-16 THREAD
    WASHER, ADAPTOR BRACKET SCREW
    3/8-16 THREAD
  • 32
    10-47462 SCREW, ADAPTOR BRACKET TO ENGINE (1-1/4")
    7/16-14 THREAD
    SCREW, ADAPTOR BRACKET TO ENGINE (1-1/4")
    7/16-14 THREAD
  • 33
    13-32993 LOCKWASHER, ADAPTOR BRACKET SCREW
    7/16-14 THREAD
    LOCKWASHER, ADAPTOR BRACKET SCREW
    7/16-14 THREAD
  • 34
    12-22248 WASHER, ADAPTOR BRACKET SCREW
    7/16-14 THREAD
    WASHER, ADAPTOR BRACKET SCREW
    7/16-14 THREAD
  • 35
    84-88537A6 CABLE ASSEMBLY (BROWN/WHITE)
    CABLE ASSEMBLY (BROWN/WHITE)
  • 36
    10-24231 SCREW, CABLE TO HARNESS
    SCREW, CABLE TO HARNESS
  • 37
    11-27164 NUT, CABLE SCREW
    NUT, CABLE SCREW
  • 38
    86-45915 TERMINAL BLOCK, WIRING HARNESS
    TERMINAL BLOCK, WIRING HARNESS
  • 39
    10-69079 SCREW, WIRING HARNESS LEADS
    SCREW, WIRING HARNESS LEADS
  • 40
    53-78201 BRACKET, TERMINAL BLOCK
    BRACKET, TERMINAL BLOCK
  • 41
    10-41508 SCREW, BRACKET TO FLYWHEEL HOUSING
    SCREW, BRACKET TO FLYWHEEL HOUSING
  • 42
    125001 PLATE, INGNITION AMPLIFIER
    ATTACH WITH SCREWS
    PLATE, INGNITION AMPLIFIER
    ATTACH WITH SCREWS
  • 43
    10-54615 SCREW
    ATTACH WITH SCREWS
    SCREW
    ATTACH WITH SCREWS
  • 44
    13-26992 LOCKWASHER
    ATTACH WITH SCREWS
    LOCKWASHER
    ATTACH WITH SCREWS
  • 45
    10-76596 SCREW
    ATTACH WITH SCREWS
    SCREW
    ATTACH WITH SCREWS
  • 46
    23-92152T SPACER
    ATTACH WITH SCREWS
    SPACER
    ATTACH WITH SCREWS
