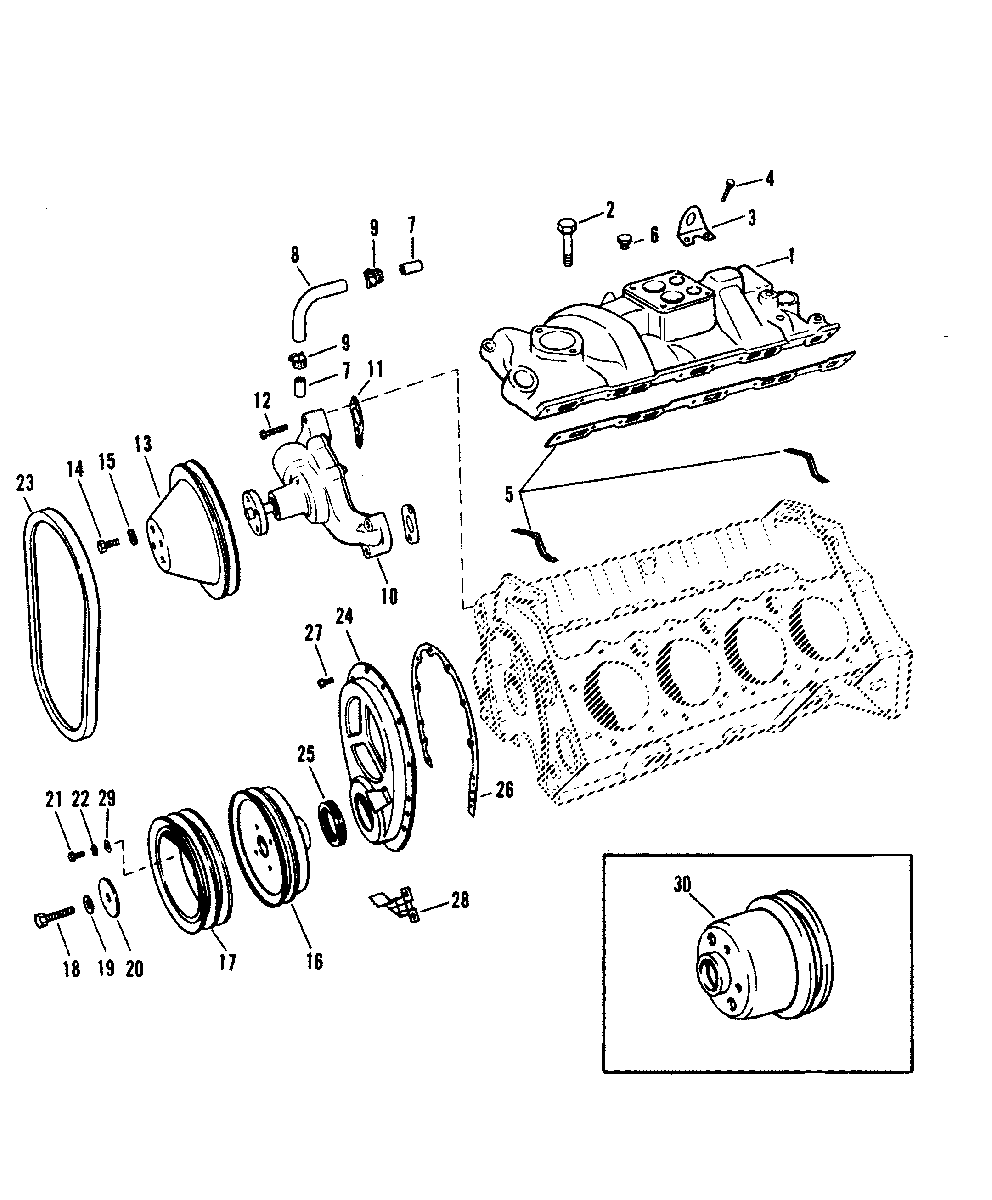

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 370 TRS GM 454 V-8 1985-1987 6721528 THRU 0B714586

  • №
    Артикул
    Название
  • 1
    72608T INTAKE MANIFOLD
    INTAKE MANIFOLD
  • 2
    N.S.S. BOLT, INTAKE MANIFOLD (GM #3736035)
    BOLT, INTAKE MANIFOLD (GM #3736035)
  • 2
    N.S.S. BOLT, INTAKE MANIFOLD (GM #454467)
    BOLT, INTAKE MANIFOLD (GM #454467)
  • 3
    54-64628 LIFTING EYE
    LIFTING EYE
  • 4
    10-358701 BOLT, LIFTING EYE
    BOLT, LIFTING EYE
  • 5
    27-8M0073380 GASKET SET, INTAKE MANIFOLD
    GASKET SET, INTAKE MANIFOLD
  • 6
    10-64422 SCREW, INTAKE MANIFOLD
    SCREW, INTAKE MANIFOLD
  • 7
    22-806242 CONNECTOR, INATEK PUMP/INTAKE MANIFOLD
    CONNECTOR, INATEK PUMP/INTAKE MANIFOLD
  • 8
    32-99520 HOSE, BY-PASS -WATER PUMP/INTAKE MANIFOLD
    HOSE, BY-PASS -WATER PUMP/INTAKE MANIFOLD
  • 9
    54-815504412 CLAMP, BY-PASS HOSE
    CLAMP, BY-PASS HOSE
  • 10
    46-8M0113735 WATER PUMP
    WATER PUMP
  • 11
    27-49110 GASKET, WATER PUMP MOUNTING
    GASKET, WATER PUMP MOUNTING
  • 12
    10-32132 SCREW, WATER PUMP TO CYLINDER BLOCK
    (1-3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK
    (1-3/4")
  • 13
    52349 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 14
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SCREW, PULLEY TO WATER PUMP (3/4")
  • 15
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 16
    72605T1 BLANACER, HARMONIC - CRANKSHAFT
    BLANACER, HARMONIC - CRANKSHAFT
  • 17
    52181 PULLEY, HARMONIC BALANCER
    PULLEY, HARMONIC BALANCER
  • 18
    10-14758 BOLT, PULLEY AND HARMONIC BALANCER
    BOLT, PULLEY AND HARMONIC BALANCER
  • 19
    13-14759 LOCKWASHER, PULLEY
    AND HARMONIC BALANCER BOLT
    LOCKWASHER, PULLEY
    AND HARMONIC BALANCER BOLT
  • 20
    12-49103 WASHER, PULLEY AND BALANCER BOLT
    WASHER, PULLEY AND BALANCER BOLT
  • 21
    10-34353 BOLT, PULLEY (1")
    BOLT, PULLEY (1")
  • 22
    13-35048 LOCKWASHER, PULLEY BOLT
    LOCKWASHER, PULLEY BOLT
  • 23
    57-48122Q BELT, ALTERNATOR DRIVE (48")
    BELT, ALTERNATOR DRIVE (48")
  • 24
    66215 COVER, CRANKCASE
    COVER, CRANKCASE
  • 25
    26-8219471 OIL SEAL, CRANKCASE COVER
    OIL SEAL, CRANKCASE COVER
  • 26
    27-54529 GASKET, CRANKCASE COVER
    GASKET, CRANKCASE COVER
  • 27
    10-8M0040582 SCREW, CRANKCASE COVER TO BLOCK
    SCREW, CRANKCASE COVER TO BLOCK
  • 28
    59966 POINTER, TIMING (L.H. ROTATION)
    POINTER, TIMING (L.H. ROTATION)
  • 29
    12-20553 WASHER, PULLEY BOLT
    WASHER, PULLEY BOLT
  • 30
    845524A1 PULLEY, CRANKSHAFT (W/POWER STEERING)
    PULLEY, CRANKSHAFT (W/POWER STEERING)
