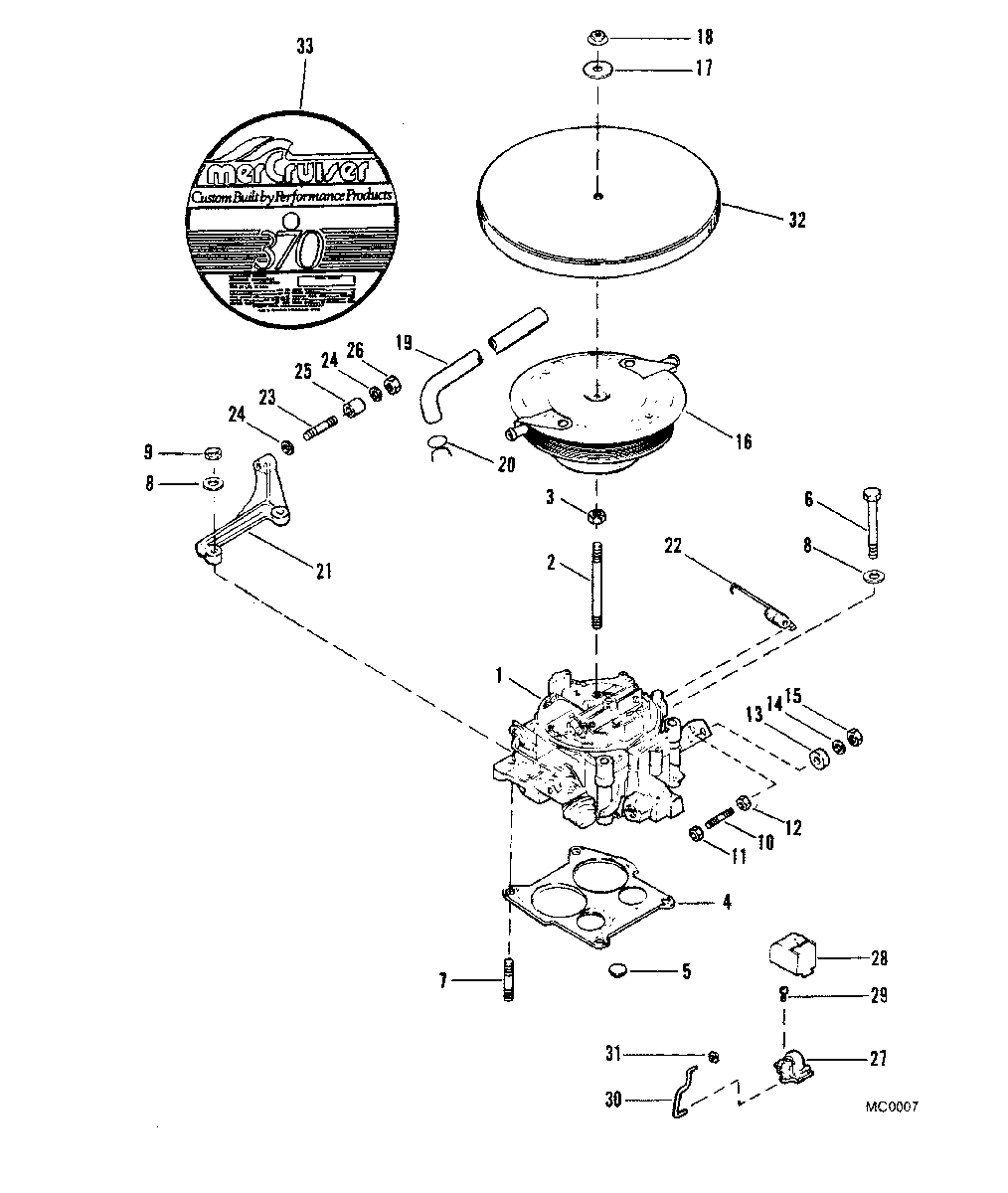

CARBURETOR AND THROTTLE LINKAGE для Mercruiser - 370 TRS GM 454 V-8 1985-1987 6721528 THRU 0B714586

  • №
    Артикул
    Название
  • 1
    1347-804625R02 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 2
    16-95117 STUD, FLAME ARRESTOR (5.40")
    STUD, FLAME ARRESTOR (5.40")
  • 3
    11-8267139 NUT, JAM-FLAME ARRESTOR
    NUT, JAM-FLAME ARRESTOR
  • 4
    27-524572 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 5
    22-36373 PLUG, INTAKE MANIFOLD VACUUM HOLE
    PLUG, INTAKE MANIFOLD VACUUM HOLE
  • 6
    10-74822 SCREW, CARBURETOR MOUNTING (3-1/2")
    SCREW, CARBURETOR MOUNTING (3-1/2")
  • 7
    16-46857 STUD, CARBURETOR MOUNTING (1-7/8")
    STUD, CARBURETOR MOUNTING (1-7/8")
  • 8
    12-20084 WASHER, CARBURETOR MOUNTING
    WASHER, CARBURETOR MOUNTING
  • 9
    11-29250 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
  • 10
    16-728091 STUD, THROTTLE CABLE TO CARBURETOR
    STUD, THROTTLE CABLE TO CARBURETOR
  • 11
    11-826709109 NUT, STUD TO THROTTLE LEVER
    NUT, STUD TO THROTTLE LEVER
  • 12
    11-21825 NUT, STUD TO THROTTLE LEVER
    NUT, STUD TO THROTTLE LEVER
  • 13
    23-53811 SPACER, THROTTLE CABLE STUD
    SPACER, THROTTLE CABLE STUD
  • 14
    12-29245 WASHER, THROTTLE CABLE STUD
    WASHER, THROTTLE CABLE STUD
  • 15
    11-8267098 NUT, THROTTLE CABLE STUD
    NUT, THROTTLE CABLE STUD
  • 16
    95950 FLAME ARRESTOR
    FLAME ARRESTOR
  • 17
    12-86400 WASHER, FLAME ARRESTOR STUD
    WASHER, FLAME ARRESTOR STUD
  • 18
    11-826709109 NUT, FLAME ARRESTOR STUD
    NUT, FLAME ARRESTOR STUD
  • 19
    32-8M0062669 HOSE, VENT-CARBURETOR (11")
    HOSE, VENT-CARBURETOR (11")
  • 20
    69355 CLAMP, VENT HOSE
    CLAMP, VENT HOSE
  • 21
    47502A2 BRACKET, MOUNTING-THROTTLE CABLE
    BRACKET, MOUNTING-THROTTLE CABLE
  • 22
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 23
    16-35897 STUD, THROTTLE CABLE TO MOUNTING BRACKET
    (1-11/16")
    STUD, THROTTLE CABLE TO MOUNTING BRACKET
    (1-11/16")
  • 24
    12-69056 WASHER, THROTTLE CABLE STUD
    WASHER, THROTTLE CABLE STUD
  • 25
    23-31866 SPACER, THROTTLE CABLE STUD
    SPACER, THROTTLE CABLE STUD
  • 26
    11-826709109 NUT, THROTTLE CABLE STUD
    NUT, THROTTLE CABLE STUD
  • 27
    66205 CHOKE, AUTOMATIC-CARBURETOR
    CHOKE, AUTOMATIC-CARBURETOR
  • 28
    63922 COVER, AUTOMATIC CHOKE
    COVER, AUTOMATIC CHOKE
  • 29
    10-69235 SCREW, AUTOMATIC CHOKE THERMOSTATE (5/8")
    SCREW, AUTOMATIC CHOKE THERMOSTATE (5/8")
  • 30
    72468 ROD, AUTOMATIC CHOKE
    ROD, AUTOMATIC CHOKE
  • 31
    54-49290 CLIP, AUTOMATIC CHOKE ROD
    CLIP, AUTOMATIC CHOKE ROD
  • 32
    12608 COVER, CARBURETOR
    COVER, CARBURETOR
  • 33
    37-13723T24 DECAL
    DECAL
