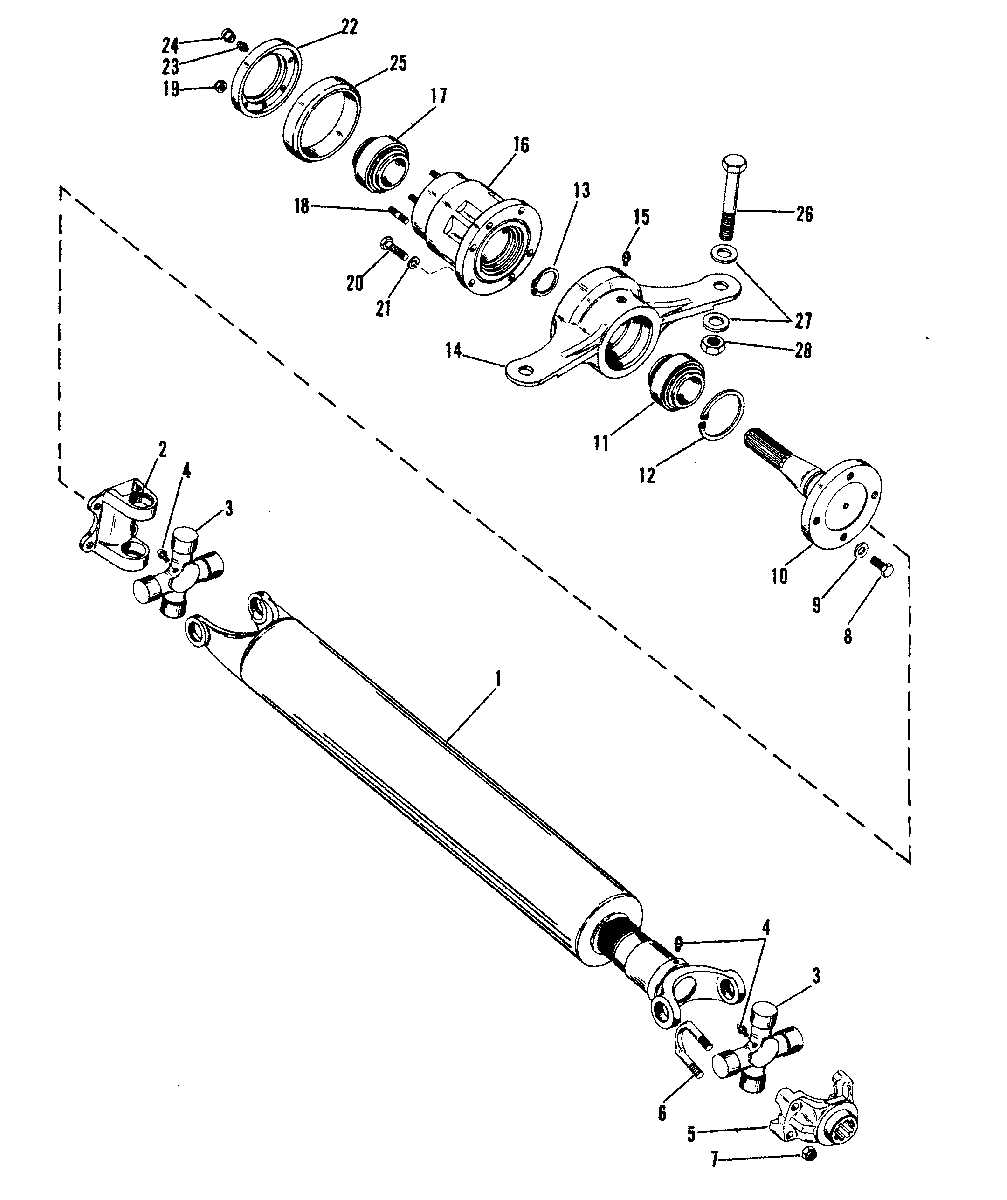

DRIVE SHAFT AND TAILSTOCK для Mercruiser - 370 TRS GM 454 V-8 1985-1987 6721528 THRU 0B714586

  • №
    Артикул
    Название
  • 1
    45-86978A3 DRIVE SHAFT ASSEMBLY
    DRIVE SHAFT ASSEMBLY
  • 2
    61218 FLANGE DRIVE SHAFT
    FLANGE DRIVE SHAFT
  • 3
    61221T CROSS AND BEARING
    CROSS AND BEARING
  • 4
    22-74036 GREASE FITTING
    GREASE FITTING
  • 5
    96276T4 YOKE
    YOKE
  • 6
    61219 U-BOLT, DRIVE SHAFT TO TRANSMISSION
    U-BOLT, DRIVE SHAFT TO TRANSMISSION
  • 7
    11-23161 NUT, U-BOLT
    NUT, U-BOLT
  • 8
    10-92154 SCREW, DRIVE SHAFT TO TAILSTOCK
    SCREW, DRIVE SHAFT TO TAILSTOCK
  • 9
    12-45176 WASHER, DRIVE SHAFT SCREW
    WASHER, DRIVE SHAFT SCREW
  • 10
    68488 SHAFT, TAILSTOCK
    SHAFT, TAILSTOCK
  • 11
    30-879194A03 BALL BEARING
    BALL BEARING
  • 12
    53-68487 SNAP RING
    SNAP RING
  • 13
    53-68486 SNAP RING
    SNAP RING
  • 14
    68485A2 TAILSTOCK HOUSING
    TAILSTOCK HOUSING
  • 15
    22-74036 GREASE FITTING
    GREASE FITTING
  • 16
    62739A2 HOUSING, OUTPUT
    HOUSING, OUTPUT
  • 17
    30-879194A03 BALL BEARING
    BALL BEARING
  • 18
    16-32027 STUD
    STUD
  • 19
    11-24652 NUT
    NUT
  • 20
    10-74824 SCREW
    SCREW
  • 21
    13-39107 LOCKWASHER
    LOCKWASHER
  • 22
    65989 RETAINER, BALL BEARING
    RETAINER, BALL BEARING
  • 23
    22-74036 GREASE FITTING
    GREASE FITTING
  • 24
    19-77633Q LUBRICAP, GREASE FITTING
    LUBRICAP, GREASE FITTING
  • 25
    62734 MOUNT, RUBBER - OUTPUT HOUSING
    MOUNT, RUBBER - OUTPUT HOUSING
  • 26
    10-67630 SCREW, TAILSTOCK TO TRANSOM PLATE
    SCREW, TAILSTOCK TO TRANSOM PLATE
  • 27
    12-36258 WASHER, TAILSTOCK SCREW
    WASHER, TAILSTOCK SCREW
  • 28
    11-52901 NUT, TAILSTOCK SCREW
    NUT, TAILSTOCK SCREW
