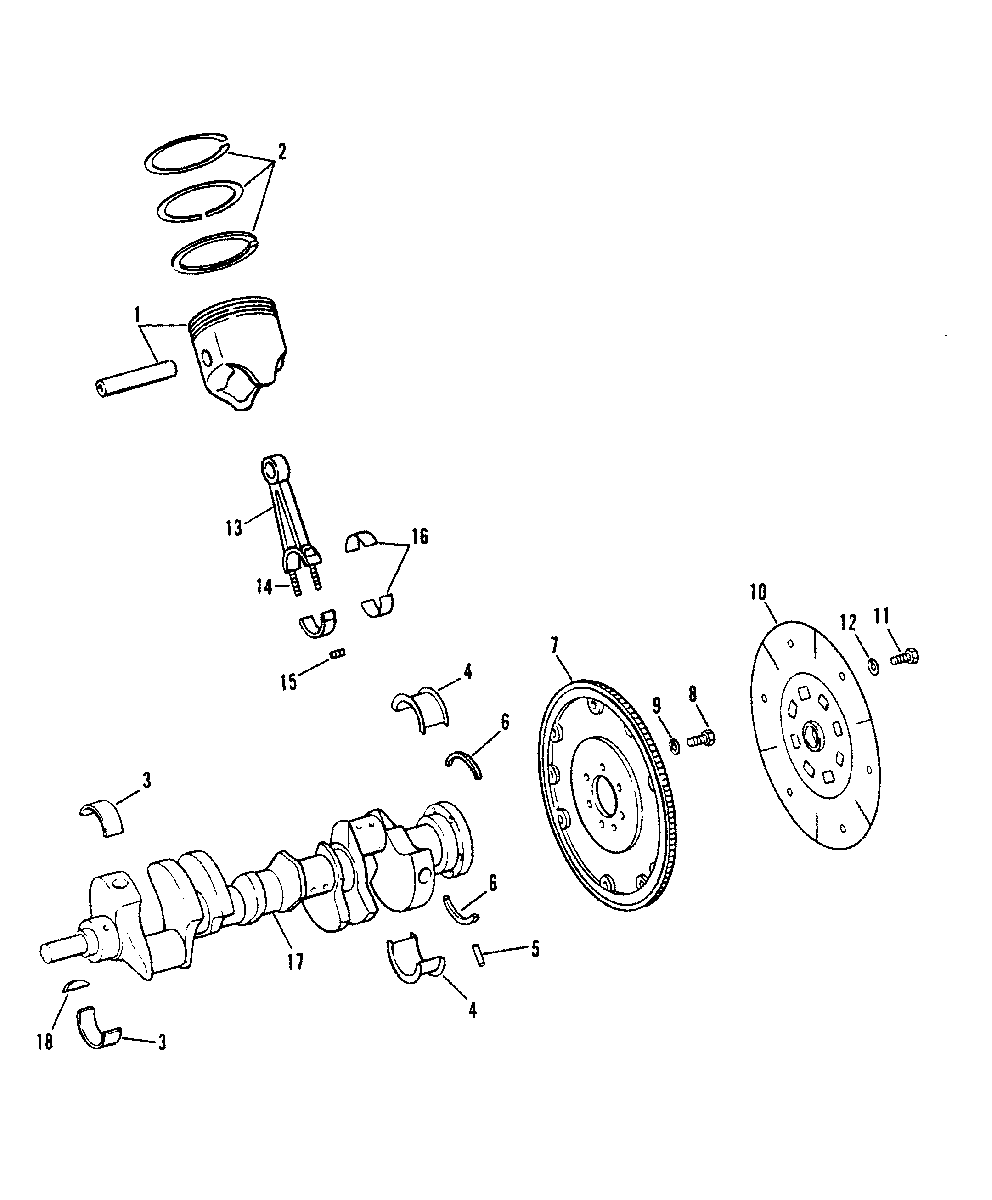

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercruiser - 370 TRS GM 454 V-8 1985-1987 6721528 THRU 0B714586

  • №
    Артикул
    Название
  • 1
    737-5536T PISTON & PISTON PIN (.001 O.S.)
    PISTON & PISTON PIN (.001 O.S.)
  • 1
    737-5537 PISTON & PISTON PIN (.003 O.S.)
    PISTON & PISTON PIN (.003 O.S.)
  • 2
    39-67127 RING, PISTON -8 SETS (STANDARD)
    RING, PISTON -8 SETS (STANDARD)
  • 2
    39-67128 RING, PISTON -8 SETS (.030 O.S.)
    RING, PISTON -8 SETS (.030 O.S.)
  • 3
    23-818473001 BEARING UNIT, (PAIR) CRANKSHAFT
    STANDARD
    BEARING UNIT, (PAIR) CRANKSHAFT
    STANDARD
  • 3
    23-818474 BEARING UNIT, (PAIR) CRANKSHAFT )
    .001 U.S.
    BEARING UNIT, (PAIR) CRANKSHAFT )
    .001 U.S.
  • 3
    23-818475 BEARING UNIT, CRANKSHAFT MAIN
    .002 U.S.
    BEARING UNIT, CRANKSHAFT MAIN
    .002 U.S.
  • 3
    23-85724 BEARING UNIT, CRANKSHAFT MAIN
    .010 U.S.
    BEARING UNIT, CRANKSHAFT MAIN
    .010 U.S.
  • 3
    23-818477 BEARING UNIT, CRANKSHAFT MAIN
    .020 U.S.
    BEARING UNIT, CRANKSHAFT MAIN
    .020 U.S.
  • 4
    23-818473001 BEARING UNIT, CRANKSHAFT MAIN -REAR
    STANDARD
    BEARING UNIT, CRANKSHAFT MAIN -REAR
    STANDARD
  • 4
    23-818474 BEARING UNIT, CRANKSHAFT MAIN -REAR
    .001 U.S.
    BEARING UNIT, CRANKSHAFT MAIN -REAR
    .001 U.S.
  • 4
    23-818475 BEARING UNIT, CRANKSHAFT MAIN - REAR
    .002 U.S.
    BEARING UNIT, CRANKSHAFT MAIN - REAR
    .002 U.S.
  • 4
    23-818476001 BEARING UNIT, CRANKSHAFT MAIN -REAR
    .010 U.S.
    BEARING UNIT, CRANKSHAFT MAIN -REAR
    .010 U.S.
  • 4
    23-818477 BEARING UNIT, CRANKSHAFT MAIN -REAR
    .020 U.S.
    BEARING UNIT, CRANKSHAFT MAIN -REAR
    .020 U.S.
  • 5
    17-843378 PIN, DOWEL -REAR CRANKSHAFT BEARING CAP
    1/4" DIA.
    PIN, DOWEL -REAR CRANKSHAFT BEARING CAP
    1/4" DIA.
  • 6
    26-8M0062773 OIL SEAL, REAR -CRANKSHAFT BEARING CAP
    OIL SEAL, REAR -CRANKSHAFT BEARING CAP
  • 7
    230-5534 FLYWHEEL
    FLYWHEEL
  • 8
    10-845757 SCREW, FLYWHEEL TO CRANKSHAFT
    SCREW, FLYWHEEL TO CRANKSHAFT
  • 9
    13-39131 LOCKWASHER, FLYWHEEL SCREW
    LOCKWASHER, FLYWHEEL SCREW
  • 10
    860125T DRIVE PLATE
    DRIVE PLATE
  • 11
    10-35091 SCREW, DRIVE PLATE
    SCREW, DRIVE PLATE
  • 12
    13-35048 LOCKWASHER, DRIVE PLATE SCREW
    LOCKWASHER, DRIVE PLATE SCREW
  • 13
    614-8M0084554 CONNECTING ROD
    CONNECTING ROD
  • 14
    N.S.S. BOLT, CONNECTING ROD CAP (GM #3981092)
    BOLT, CONNECTING ROD CAP (GM #3981092)
  • 15
    N.S.S. NUT, CONNECTING ROD CAP BOLT (GM #3942410)
    NUT, CONNECTING ROD CAP BOLT (GM #3942410)
  • 16
    23-85726001 BEARING SET, (4 PARI) CONNECTING ROD
    STANDARD
    BEARING SET, (4 PARI) CONNECTING ROD
    STANDARD
  • 16
    23-85727 BEARING UNIT, (PAIR) CONNECTING ROD
    .001 U.S.
    BEARING UNIT, (PAIR) CONNECTING ROD
    .001 U.S.
  • 16
    23-85728 BEARING UNIT, (PAIR) CONNECTING ROD
    .002 U.S.
    BEARING UNIT, (PAIR) CONNECTING ROD
    .002 U.S.
  • 16
    23-85691 BEARING UNIT, (PAIR) CONNECTING ROD
    .010 U.S.
    BEARING UNIT, (PAIR) CONNECTING ROD
    .010 U.S.
  • 16
    23-85729 BEARING UNIT, (PAIR) CONNECTING ROD
    .020 U.S.
    BEARING UNIT, (PAIR) CONNECTING ROD
    .020 U.S.
  • 17
    429-5880 CRANKSHAFT
    CRANKSHAFT
  • 18
    28-34466 KEY, CRANKSHAFT
    KEY, CRANKSHAFT
