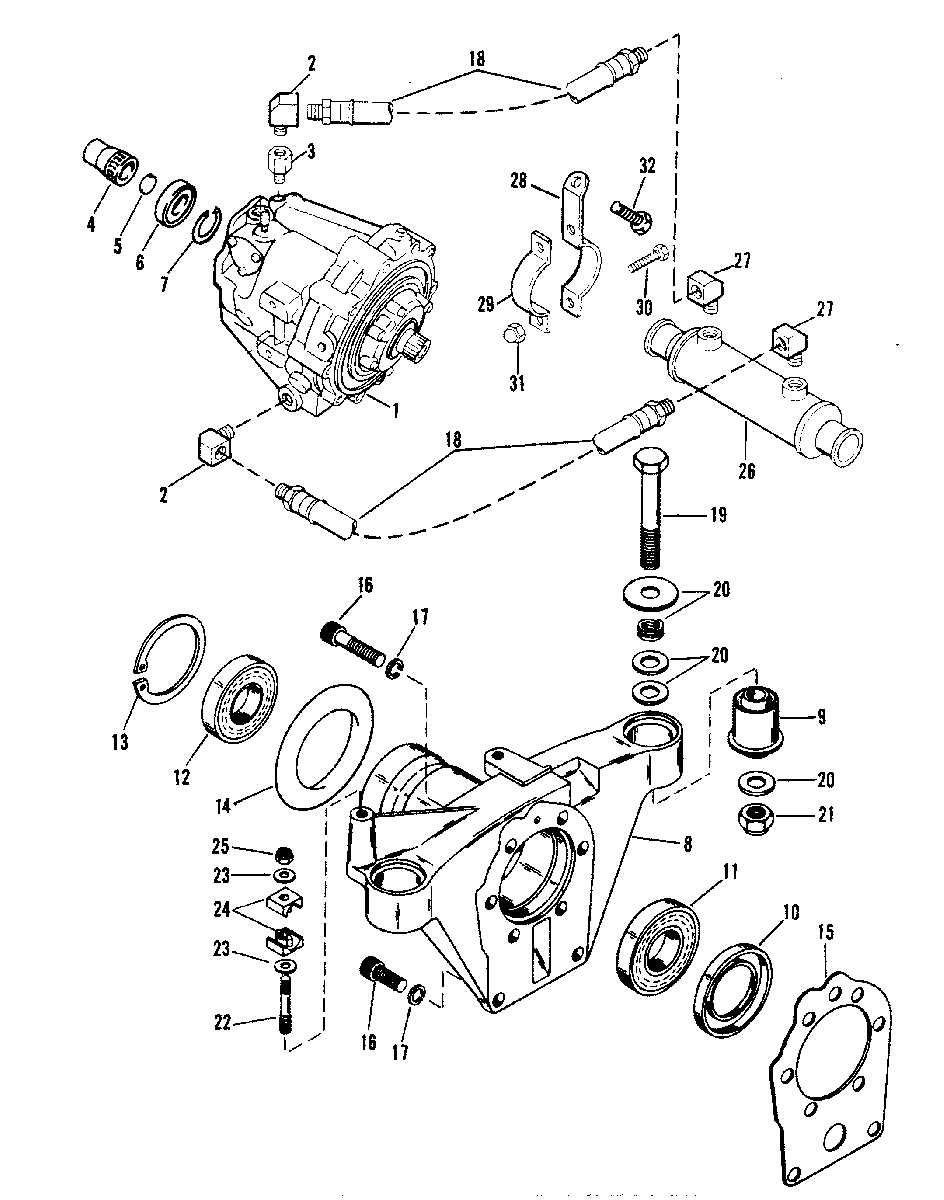

TRANSMISSION AND TAILSTOCK для Mercruiser - 370 TRS GM 454 V-8 1985-1987 6721528 THRU 0B714586

  • №
    Артикул
    Название
  • 1
    47753A7 TRANSMISSION ASSEMBLY (10-17 SERIES)
    TRANSMISSION ASSEMBLY (10-17 SERIES)
  • 2
    22-47629 ELBOW, TRANSMISSION TO OIL HOSE
    ELBOW, TRANSMISSION TO OIL HOSE
  • 3
    22-88517 BUSHING, TRANSMISSION ELBOW
    BUSHING, TRANSMISSION ELBOW
  • 4
    57758A2 ENGINE COUPLING ASSEMBLY
    ENGINE COUPLING ASSEMBLY
  • 5
    19-47463 PLUG, EXPANSION - ENGINE COUPLING
    PLUG, EXPANSION - ENGINE COUPLING
  • 6
    30-47470 BALL BEARING, ENGINE COUPLING
    BALL BEARING, ENGINE COUPLING
  • 7
    53-47469 SNAP RING, BALL BEARING
    SNAP RING, BALL BEARING
  • 8
    98322A2 TAILSTOCK ASSEMBLY, BEARING SUPPORT
    TAILSTOCK ASSEMBLY, BEARING SUPPORT
  • 9
    35852 MOUNT, RUBBER - TAILSTOCK
    MOUNT, RUBBER - TAILSTOCK
  • 10
    26-47465 OIL SEAL, TAILSTOCK
    OIL SEAL, TAILSTOCK
  • 11
    30-57762T BALL BEARING, TAILSTOCK (3-5/32" O.D.)
    BALL BEARING, TAILSTOCK (3-5/32" O.D.)
  • 12
    30-32537T BALL BEARING, TAILSTOCK (2-27/32" O.D.)
    BALL BEARING, TAILSTOCK (2-27/32" O.D.)
  • 13
    53-54481 SNAP RING, BALL BEARING TO TAILSTOCK
    SNAP RING, BALL BEARING TO TAILSTOCK
  • 14
    25-54067 SEAL, TAILSTOCK
    SEAL, TAILSTOCK
  • 15
    27-47903 GASKET, TAILSTOCK
    GASKET, TAILSTOCK
  • 16
    10-29081 SCREW, TAILSTOCK TO TRANSMISSION (1-1/4")
    SCREW, TAILSTOCK TO TRANSMISSION (1-1/4")
  • 16
    10-99524 SCREW, TAILSTOCK TO TRANSMISSION (2")
    SCREW, TAILSTOCK TO TRANSMISSION (2")
  • 17
    13-30381 LOCKWASHER, TAILSTOCK SCREW
    LOCKWASHER, TAILSTOCK SCREW
  • 18
    32-475166 HOSE, TRANSMISSION TO OIL COOLER (30")
    HOSE, TRANSMISSION TO OIL COOLER (30")
  • 19
    10-47467 SCREW, TAILSTOCK TO INNER TRANSOM PLATE
    (5-1/2")
    SCREW, TAILSTOCK TO INNER TRANSOM PLATE
    (5-1/2")
  • 20
    12-47475 WASHER, TAILSTOCK SCREWS
    WASHER, TAILSTOCK SCREWS
  • 20
    12-47466 WASHER, TAILSTOCK SCREWS (NEOPRENE)
    WASHER, TAILSTOCK SCREWS (NEOPRENE)
  • 20
    12-33171 WASHER, TAILSTOCK SCREWS
    WASHER, TAILSTOCK SCREWS
  • 20
    13-34846 LOCKWASHER, TAILSTOCK SCREWS
    LOCKWASHER, TAILSTOCK SCREWS
  • 21
    11-22339 NUT, TAILSTOCK SCREWS
    NUT, TAILSTOCK SCREWS
  • 22
    16-99801 STUD, CLAMP BLOCK
    STUD, CLAMP BLOCK
  • 23
    12-69056 WASHER, CLAMP BLOCK STUD
    WASHER, CLAMP BLOCK STUD
  • 24
    41058 CLAMP BLOCK, SHIFT CABLE
    CLAMP BLOCK, SHIFT CABLE
  • 25
    11-8267089 NUT, CLAMP BLOCK STUD
    NUT, CLAMP BLOCK STUD
  • 26
    63832A1 OIL COOLER, TRANSMISSION (9")
    OIL COOLER, TRANSMISSION (9")
  • 26
    63832T OIL COOLER, TRANSMISSION (12")
    OIL COOLER, TRANSMISSION (12")
  • 27
    22-63835 ELBOW, OIL COOLER (45 DEGREES)
    ELBOW, OIL COOLER (45 DEGREES)
  • 27
    22-47629 ELBOW, OIL COOLER (90 DEGREES)
    ELBOW, OIL COOLER (90 DEGREES)
  • 28
    63820T1 BRACKET, OIL COOLER (LONG)
    BRACKET, OIL COOLER (LONG)
  • 29
    56328A1 BRACKET, OIL COOLER (SHORT)
    BRACKET, OIL COOLER (SHORT)
  • 30
    10-60300 SCREW, OIL COOLER BRACKET
    SCREW, OIL COOLER BRACKET
  • 31
    11-30506 NUT, OIL COOLER BRACKET SCREW
    NUT, OIL COOLER BRACKET SCREW
  • 32
    10-35765A1 SCREW, OIL COOLER BRACKET TO ENGINE
    SCREW, OIL COOLER BRACKET TO ENGINE
