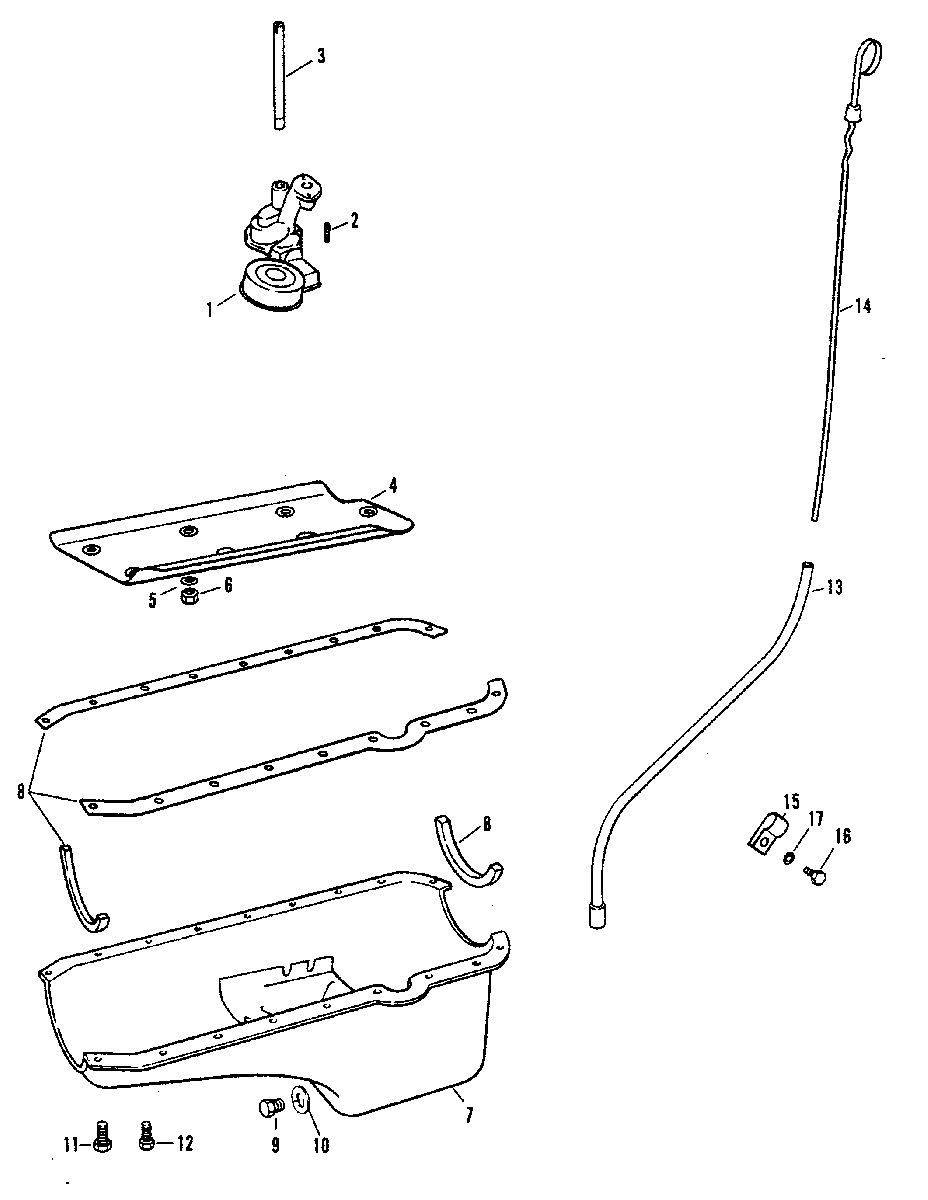

OIL PAN AND OIL PUMP для Mercruiser - 370 TRS GM 454 V-8 1985-1987 6721528 THRU 0B714586

  • №
    Артикул
    Название
  • 1
    808693A1 OIL PUMP
    (w/pick-up tube)
    OIL PUMP
    (w/pick-up tube)
  • 1
    808693A1 OIL PUMP
    (w/o pick-up tube)
    OIL PUMP
    (w/o pick-up tube)
  • NS
    809772T PICK-UP TUBE
    (Used with 808693A1)
    PICK-UP TUBE
    (Used with 808693A1)
  • 2
    16-845599 STUD, OIL PUMP TO CYLINDER BLOCK
    STUD, OIL PUMP TO CYLINDER BLOCK
  • 3
    848511 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 4
    N.S.S. BAFFLE, OIL PAN (CYLINDER BLOCK) - GM #3967854
    BAFFLE, OIL PAN (CYLINDER BLOCK) - GM #3967854
  • 5
    12-49112 WASHER, OIL PAN BAFFLE/OIL PUMP STUD
    WASHER, OIL PAN BAFFLE/OIL PUMP STUD
  • 6
    11-37500 NUT, OIL PAN BAFFLE/OIL PUMP STUD
    NUT, OIL PAN BAFFLE/OIL PUMP STUD
  • 7
    13800 OIL PAN
    OIL PAN
  • 8
    27-52550 GASKET SET, OIL PAN
    GASKET SET, OIL PAN
  • 9
    10-49956 PLUG, PIPE - OIL PAN DRAIN
    PLUG, PIPE - OIL PAN DRAIN
  • 10
    27-8M0077608 GASKET, OIL PAN SCREW
    GASKET, OIL PAN SCREW
  • 11
    10-34500 SCREW, OIL PAN
    SCREW, OIL PAN
  • 12
    10-72607 SCREW, OIL PAN
    SCREW, OIL PAN
  • 13
    68035 TUBE, OIL LEVEL GAUGE
    TUBE, OIL LEVEL GAUGE
  • 14
    74054 GAUGE, OIL LEVEL (DIPSTICK)
    GAUGE, OIL LEVEL (DIPSTICK)
  • 15
    54-71982 CLIP, OIL LEVEL TUBE
    CLIP, OIL LEVEL TUBE
  • 16
    10-98253 SCREW, CLIP TO BRACKET
    SCREW, CLIP TO BRACKET
  • 17
    13-26992 LOCKWASHER, CLIP SCREW
    LOCKWASHER, CLIP SCREW
