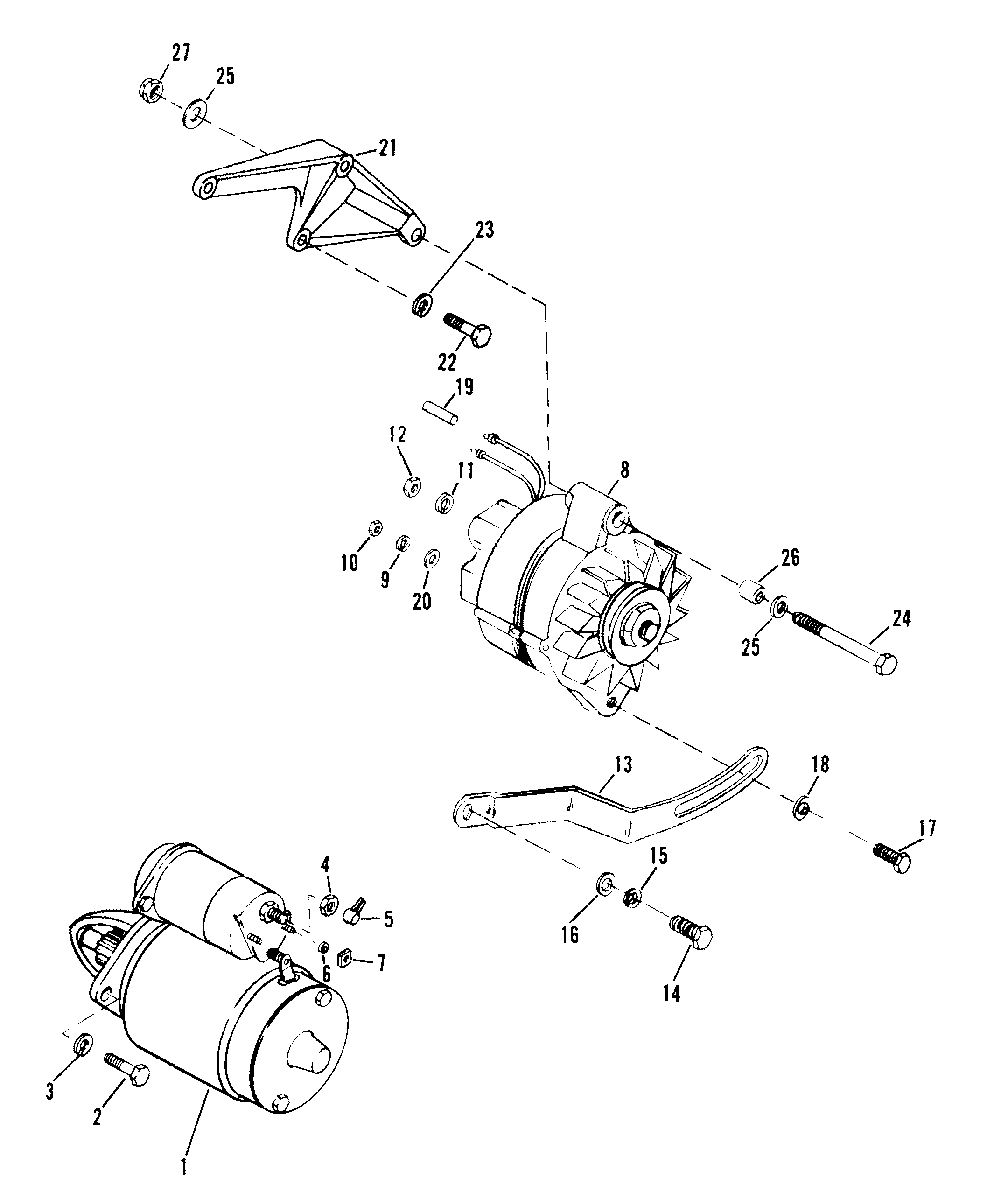

STARTER AND ALTERNATOR для Mercruiser - 370 TRS GM 454 V-8 1985-1987 6721528 THRU 0B714586

  • №
    Артикул
    Название
  • 1
    50-808011A05 STARTER MOTOR
    STARTER MOTOR
  • 2
    10-47462 SCREW, STARTER MOTOR (1-1/4")
    SCREW, STARTER MOTOR (1-1/4")
  • 3
    13-32993 LOCKWASHER, STARTER MOTOR SCREW
    LOCKWASHER, STARTER MOTOR SCREW
  • 4
    11-86226 NUT, STARTER TERMINAL (3/8-16)
    NUT, STARTER TERMINAL (3/8-16)
  • 5
    85-79695T BOOT, INSULATOR-STARTER TERMINAL
    BOOT, INSULATOR-STARTER TERMINAL
  • 6
    13-26995 LOCKWASHER, STARTER TERMINAL
    LOCKWASHER, STARTER TERMINAL
  • 7
    11-26419 NUT, STARTER TERMINAL (#8-32)
    NUT, STARTER TERMINAL (#8-32)
  • 8
    817119A4 ALTERNATOR
    ALTERNATOR
  • 9
    13-26996 LOCKWASHER, ALTERNATOR TERMINAL
    LOCKWASHER, ALTERNATOR TERMINAL
  • 10
    11-30968 NUT, ALTERNATOR TERMINAL (10-24)
    NUT, ALTERNATOR TERMINAL (10-24)
  • 11
    13-21272 LOCKWASHER, ALTERNATOR TERMINAL
    LOCKWASHER, ALTERNATOR TERMINAL
  • 12
    11-64015 NUT, ALTERNATOR TERMINAL (1/4-20)
    NUT, ALTERNATOR TERMINAL (1/4-20)
  • 13
    85013T BRACE, ALTERNATOR ADJUSTING
    BRACE, ALTERNATOR ADJUSTING
  • 14
    10-47461 SCREW, ALTERNATOR BRACE (1")
    SCREW, ALTERNATOR BRACE (1")
  • 15
    13-32993 LOCKWASHER, ALTERNATOR BRACE SCREW
    LOCKWASHER, ALTERNATOR BRACE SCREW
  • 16
    12-74758 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 17
    10-29198 SCREW, ALTERNATOR BRACE (7/8")
    SCREW, ALTERNATOR BRACE (7/8")
  • 18
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 19
    5790811 TUBING, ALTERNATOR LEADS
    TUBING, ALTERNATOR LEADS
  • 20
    12-96457 WASHER, ALTERNATOR TERMINAL
    WASHER, ALTERNATOR TERMINAL
  • 21
    806394A1 BRACKET, ALTERNATOR
    BRACKET, ALTERNATOR
  • 22
    10-34353 SCREW, ALTERNATOR BRACKET (1")
    SCREW, ALTERNATOR BRACKET (1")
  • 22
    10-37612 SCREW, ALTERNATOR BRACKET (1-1/4")
    SCREW, ALTERNATOR BRACKET (1-1/4")
  • 23
    13-35048 LOCKWASHER, ALTERNATOR BRACKET SCREW
    LOCKWASHER, ALTERNATOR BRACKET SCREW
  • 24
    10-48308 SCREW, ALTERNATOR (3-3/4")
    SCREW, ALTERNATOR (3-3/4")
  • 25
    12-20553 WASHER, ALTERNATOR BRACKET SCREW
    WASHER, ALTERNATOR BRACKET SCREW
  • 26
    23-33186 BUSHING, ALTERNATOR BRACKET SCREW
    BUSHING, ALTERNATOR BRACKET SCREW
  • 27
    11-23161 NUT, ALTERNATOR BRACKET SCREW
    NUT, ALTERNATOR BRACKET SCREW
