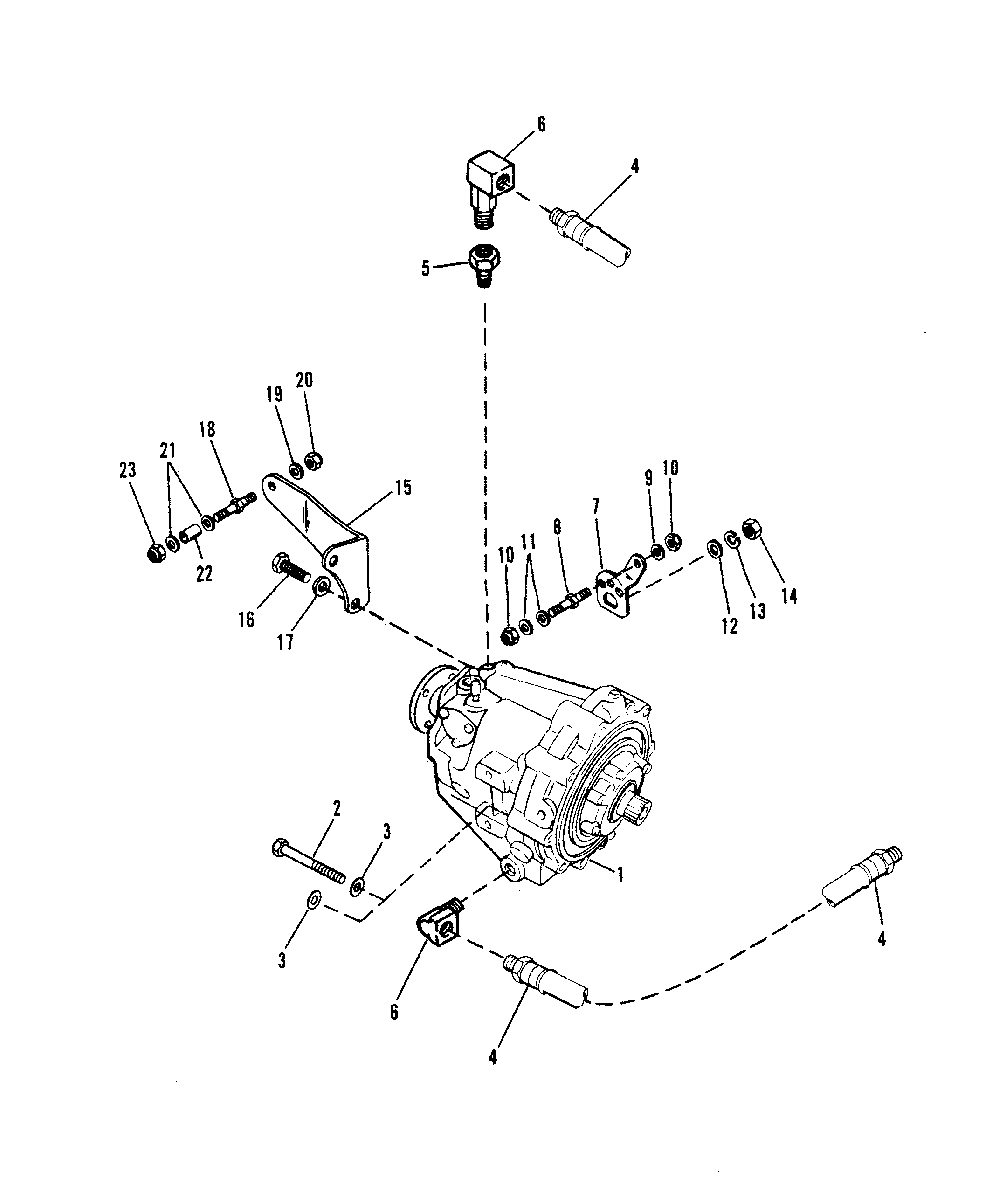

TRANSMISSION AND RELATED PARTS для Mercruiser - 370 TRS GM 454 V-8 1985-1987 6721528 THRU 0B714586

  • №
    Артикул
    Название
  • 1
    47805A7 TRANSMISSION (DIRECT DRIVE)
    TRANSMISSION (DIRECT DRIVE)
  • 2
    10-60179 SCREW, TRANSMISSION (3-1/2")
    SCREW, TRANSMISSION (3-1/2")
  • 3
    13-32993 LOCKWASHER, SCREW AND STUD
    LOCKWASHER, SCREW AND STUD
  • 4
    32-475166 HOSE, TRANSMISSION/COOLER (30")
    HOSE, TRANSMISSION/COOLER (30")
  • 5
    22-88517 BUSHING, TRANSMISSION ELBOW
    BUSHING, TRANSMISSION ELBOW
  • 6
    22-47629 ELBOW, HOSE (90 DEGREES)
    ELBOW, HOSE (90 DEGREES)
  • 7
    12128 LEVER, SHIFT TRANSMISSION
    LEVER, SHIFT TRANSMISSION
  • 8
    16-63335 STUD, SHIFT LEVER
    STUD, SHIFT LEVER
  • 9
    12-39143 WASHER, SHIFT LEVER STUD
    WASHER, SHIFT LEVER STUD
  • 10
    11-8267089 NUT, SHIFT LEVER STUD
    NUT, SHIFT LEVER STUD
  • 11
    12-29245 WASHER, SHIFT
    WASHER, SHIFT
  • 12
    12-20722 WASHER, TRANSMISSION LEVER STUD
    WASHER, TRANSMISSION LEVER STUD
  • 13
    13-26993 LOCKWASHER, TRANSMISSION LEVER STUD
    LOCKWASHER, TRANSMISSION LEVER STUD
  • 14
    11-22053 NUT, TRANSMISSION LEVER STUD
    NUT, TRANSMISSION LEVER STUD
  • 15
    41603 BRACKET, SHIFT
    BRACKET, SHIFT
  • 16
    10-34350 SCREW, SHIFT BRACKET TO TRANSMISSION
    SCREW, SHIFT BRACKET TO TRANSMISSION
  • 17
    12-45176 WASHER, SHIFT BRACKET SCREW
    WASHER, SHIFT BRACKET SCREW
  • 18
    16-63335 STUD, SHIFT BRACKET
    STUD, SHIFT BRACKET
  • 19
    12-39143 WASHER, SHIFT BRACKET STUD
    WASHER, SHIFT BRACKET STUD
  • 20
    11-8267089 NUT, SHIFT BRACKET STUD
    NUT, SHIFT BRACKET STUD
  • 21
    12-69056 WASHER, SHIFT BRACKET STUD
    WASHER, SHIFT BRACKET STUD
  • 22
    23-31866 SPACER, SHIFT BRACKET STUD
    SPACER, SHIFT BRACKET STUD
  • 23
    11-826709109 NUT, SHIFT BRACKET STUD
    NUT, SHIFT BRACKET STUD
