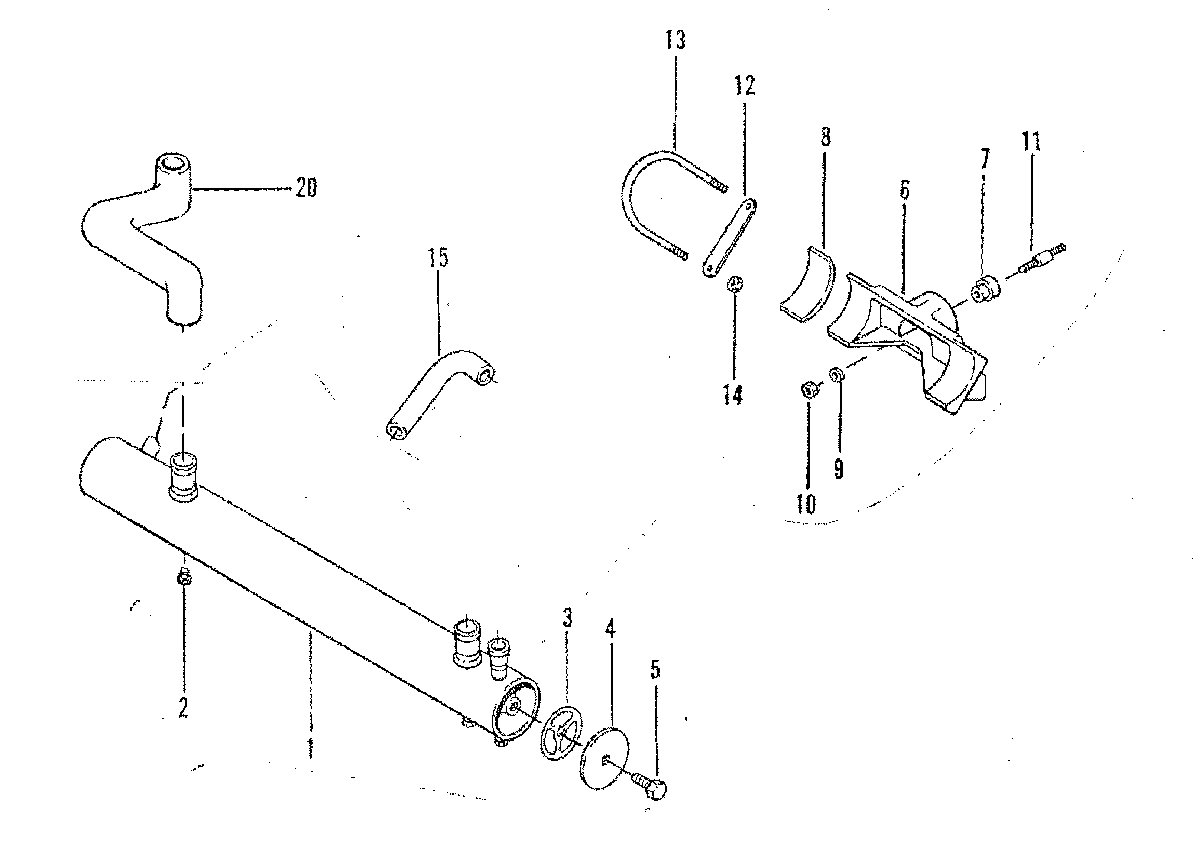

WATER CLOSED COOLING KIT для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1976-1979 4208730 THRU 5520114

  • №
    Артикул
    Название
  • 1
    99438A1 HEAT EXCHANGER
    HEAT EXCHANGER
  • 2
    22-328022 PIPE PLUG, HEAT EXCHANGER
    PIPE PLUG, HEAT EXCHANGER
  • 3
    27-99960 GASKET, END CAP
    GASKET, END CAP
  • 4
    99961 PLATE, END CAP
    PLATE, END CAP
  • 5
    10-99962 SCREW, END CAP-HEAT EXCHANGER
    SCREW, END CAP-HEAT EXCHANGER
  • 6
    98618A1 BRACKET ASSEMBLY, HEAT EXCHANGER
    BRACKET ASSEMBLY, HEAT EXCHANGER
  • 7
    41024 MOUNT, VIBRATION
    MOUNT, VIBRATION
  • 8
    77223 PAD, MOUNTING BRACKET
    PAD, MOUNTING BRACKET
  • 9
    12-31263 WASHER, MOUNT STUD
    WASHER, MOUNT STUD
  • 10
    11-34933 NUT, MOUNT STUD
    NUT, MOUNT STUD
  • 11
    16-41025 STUD, BRACKET
    STUD, BRACKET
  • 12
    98620 STRAP, BRACKET TO HEAT EXCHANGER
    STRAP, BRACKET TO HEAT EXCHANGER
  • 13
    10-98619A1 "U" BOLT, HEAT EXCHANGER
    "U" BOLT, HEAT EXCHANGER
  • 14
    11-26484 NUT, "U" BOLT
    NUT, "U" BOLT
  • 15
    32-41497 HOSE, HEAT EXCHANGER TO VOLTAGE REGULATOR
    HOSE, HEAT EXCHANGER TO VOLTAGE REGULATOR
  • 20
    32-897000 HOSE, EXHAUST MANIFOLD TO HEAT EXCHANGER
    HOSE, EXHAUST MANIFOLD TO HEAT EXCHANGER
