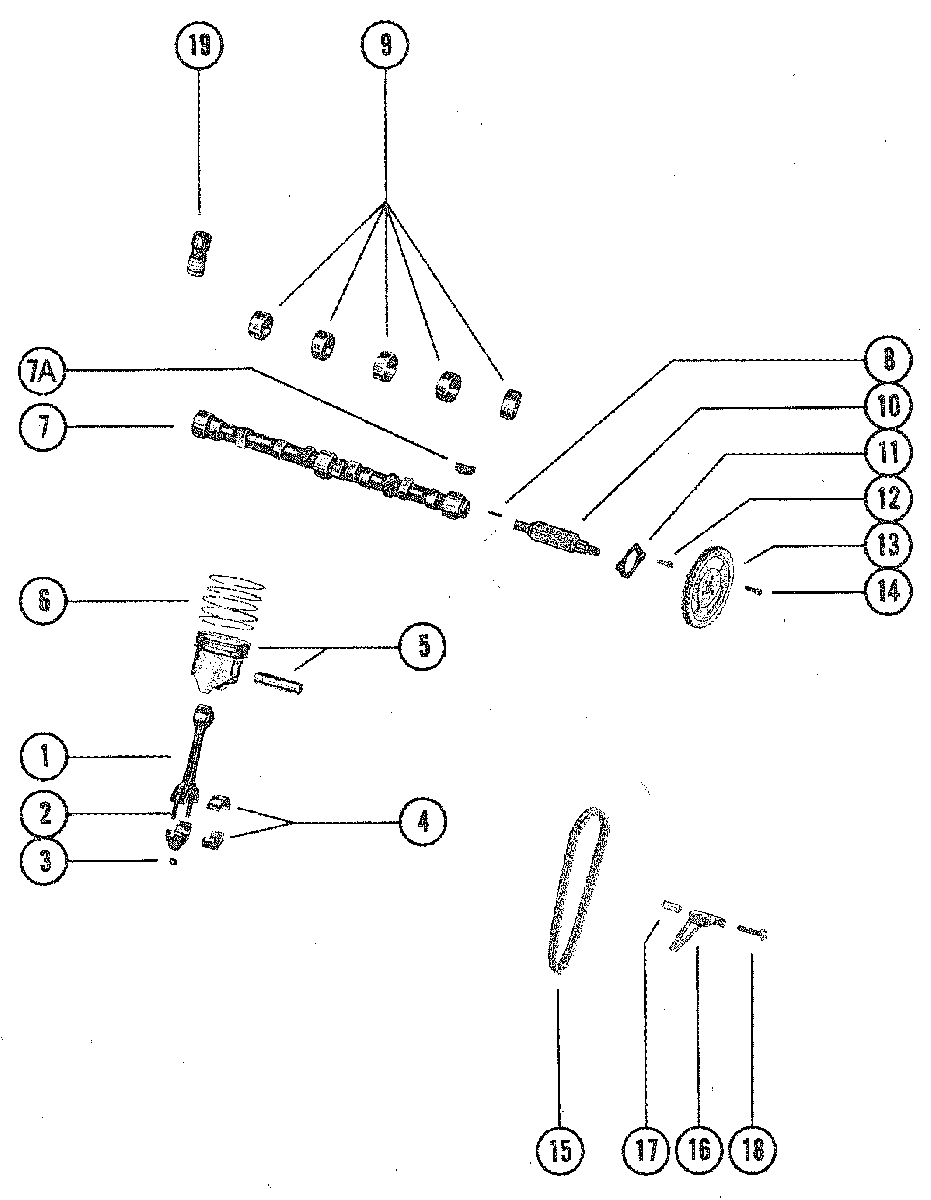

CAMSHAFT AND PISTON ASSEMBLY для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1976-1979 4208730 THRU 5520114

  • №
    Артикул
    Название
  • 1
    628-6100T2 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 2
    10-75444 SCREW, CONNECTING ROD CAP ATTACHING
    SCREW, CONNECTING ROD CAP ATTACHING
  • 3
    11-64769 NUT, CONNECTING ROD CAP ATTACHING
    NUT, CONNECTING ROD CAP ATTACHING
  • 4
    23-853853002 BEARING, CONNECTING ROD (STD.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
    BEARING, CONNECTING ROD (STD.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
  • 4
    68704A2 BEARING, CONNECTING ROD (.002 U.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
    BEARING, CONNECTING ROD (.002 U.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
  • 4
    23-853856001 BEARING, CONNECTING ROD (.020 U.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
    BEARING, CONNECTING ROD (.020 U.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
  • 5
    759-806661A7 PISTON ASSEMBLY (STD.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
    PISTON ASSEMBLY (STD.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
  • 5
    759-806661A4 PISTON ASSEMBLY (.005 O.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D. SERIAL 00000000-04625579
    PISTON ASSEMBLY (.005 O.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D. SERIAL 00000000-04625579
  • 5
    759-806661A4 PISTON ASSEMBLY (.005 O.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D. SERIAL 00000000-04625579
    PISTON ASSEMBLY (.005 O.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D. SERIAL 00000000-04625579
  • 5
    759-806661A8 PISTON ASSEMBLY (.030 O.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D. SERIAL 00000000-04625579
    PISTON ASSEMBLY (.030 O.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D. SERIAL 00000000-04625579
  • 5
    759-806661A7 PISTON ASSEMBLY (STD.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D. SERIAL 04625580-09999999
    PISTON ASSEMBLY (STD.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D. SERIAL 04625580-09999999
  • 5
    759-806661A4 PISTON ASSEMBLY (.005 O.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D. SERIAL 04625580-09999999
    PISTON ASSEMBLY (.005 O.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D. SERIAL 04625580-09999999
  • 5
    759-806661A8 PISTON ASSEMBLY (.030 O.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D. SERIAL 04625580-09999999
    PISTON ASSEMBLY (.030 O.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D. SERIAL 04625580-09999999
  • 6
    39-74381A1 RING, PISTON (STD.)
    RING, PISTON (STD.)
  • 6
    39-75423 RING, PISTON (.030 O.S.)
    RING, PISTON (.030 O.S.)
  • 7
    462-6102A3 CAMSHAFT ASSEMBLY
    SERIAL 00000000-05195053
    CAMSHAFT ASSEMBLY
    SERIAL 00000000-05195053
  • 8
    17-72511 PIN, CAMSHAFT
    SERIAL 00000000-05195053
    PIN, CAMSHAFT
    SERIAL 00000000-05195053
  • 7
    400-8M0122295 CAMSHAFT ASSEMBLY
    SERIAL 05195054-09999999
    CAMSHAFT ASSEMBLY
    SERIAL 05195054-09999999
  • 7A
    28-86466 KEY, CAMSHAFT ASSEMBLY
    SERIAL 05195054-09999999
    KEY, CAMSHAFT ASSEMBLY
    SERIAL 05195054-09999999
  • 9
    23-67484T BEARING, CAMSHAFT - OPTIONAL
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
    BEARING, CAMSHAFT - OPTIONAL
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
  • 10
    72939 SHAFT, EXTENSION
    SERIAL 00000000-05195053
    SHAFT, EXTENSION
    SERIAL 00000000-05195053
  • 11
    67492 THRUST PLATE, CAMSHAFT
    THRUST PLATE, CAMSHAFT
  • 12
    10-49668 SCREW, TRUST PLATE ATTACHING (3/4")
    SCREW, TRUST PLATE ATTACHING (3/4")
  • 13
    864611 SPROCKET, CAMSHAFT
    SERIAL 00000000-05189437
    SPROCKET, CAMSHAFT
    SERIAL 00000000-05189437
  • 13
    864611 SPROCKET, CAMSHAFT
    SERIAL 05189438-09999999
    SPROCKET, CAMSHAFT
    SERIAL 05189438-09999999
  • 14
    10-70084 SCREW, SPROCKET TO CAMSHAFT (1")
    SCREW, SPROCKET TO CAMSHAFT (1")
  • 15
    68717A1 CHAIN, TIMING
    CHAIN, TIMING
  • 16
    75202 TENSIONER, CHAIN
    TENSIONER, CHAIN
  • 17
    23-75087 BUSHING, CHAIN TENSIONER
    BUSHING, CHAIN TENSIONER
  • 18
    10-881892 SCREW, CHAIN TENSIONER ATTACHING (1 3/4")
    SCREW, CHAIN TENSIONER ATTACHING (1 3/4")
  • 19
    56153 TAPPET
    TAPPET
