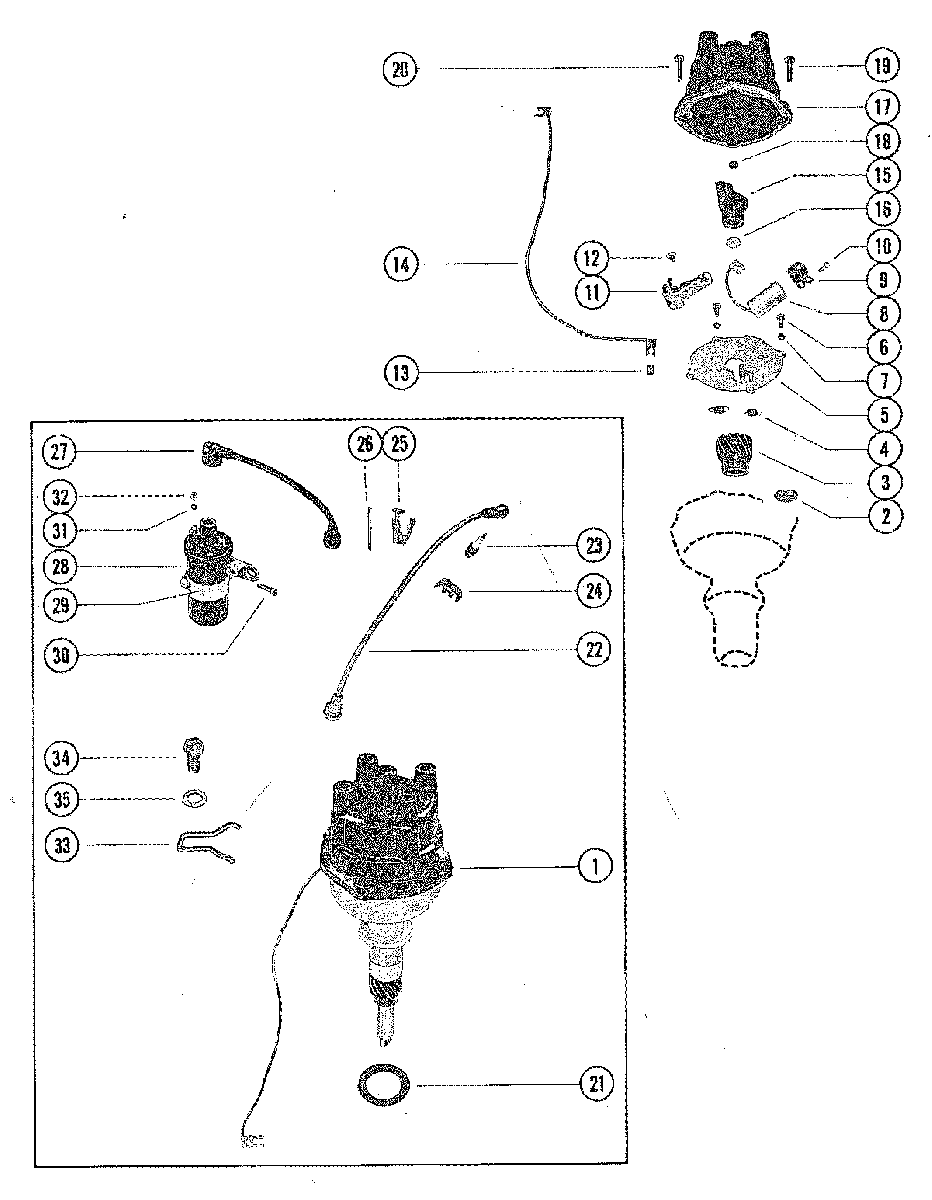

DISTRIBUTOR ASSEMBLY AND COIL для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1976-1979 4208730 THRU 5520114

  • №
    Артикул
    Название
  • 1
    19514A2 DISTRIBUTOR ASSEMBLY, COMP
    SERIAL 00000000-04973705
    DISTRIBUTOR ASSEMBLY, COMP
    SERIAL 00000000-04973705
  • 1
    19514A2 DISTRUBUTOR ASSEMBLY, COMP
    SERIAL 04973706-09999999
    DISTRUBUTOR ASSEMBLY, COMP
    SERIAL 04973706-09999999
  • 2
    62426 SCREEN, VENT-DISTRIBUTOR HOUSING
    SCREEN, VENT-DISTRIBUTOR HOUSING
  • 3
    43-735791 GEAR, DRIVE-MAIN SHAFT
    GEAR, DRIVE-MAIN SHAFT
  • -
    17-29077 ROLL PIN, DISTRIBUTOR GEAR
    ROLL PIN, DISTRIBUTOR GEAR
  • -
    26-34111 SEAL, HOUSING
    SEAL, HOUSING
  • -
    33653 FELT, BREAKER CAM LUBRICATOR
    FELT, BREAKER CAM LUBRICATOR
  • -
    72654 RETAINER, BREAKER CAM LUBRICATOR FELT
    RETAINER, BREAKER CAM LUBRICATOR FELT
  • 4
    24-75410 SPRING, BREAKER CAM ADVANCE WEIGHT
    SPRING, BREAKER CAM ADVANCE WEIGHT
  • 5
    33665 PLATE, MOUNTING-BREAKER ASSEMBLY AND CONDENSER
    PLATE, MOUNTING-BREAKER ASSEMBLY AND CONDENSER
  • 6
    10-20650 SCREW, MOUNTING PLATE TO PRIMARY HOUSING
    SCREW, MOUNTING PLATE TO PRIMARY HOUSING
  • 7
    12-62425 WASHER, BREAKER PLATE SUPPORT SCREW
    WASHER, BREAKER PLATE SUPPORT SCREW
  • 8
    8M6001218 CONDENSER
    CONDENSER
  • 9
    48024 BRACKET, CONDENSER MOUNTING
    BRACKET, CONDENSER MOUNTING
  • 10
    10-48021 SCREW, CONDENSER BRACKET ATTACHING
    SCREW, CONDENSER BRACKET ATTACHING
  • 11
    34235T BREAKER ASSEMBLY, DISTRIBUTOR
    BREAKER ASSEMBLY, DISTRIBUTOR
  • 12
    10-33650 SCREW, BREAKER ASSEMBLY TO MOUNTING PLATE
    SCREW, BREAKER ASSEMBLY TO MOUNTING PLATE
  • 13
    25-33666 GROMMET, MOUNTING PLATE-PRIMARY WIRE
    GROMMET, MOUNTING PLATE-PRIMARY WIRE
  • 14
    33658 LEAD, PRIMARY
    LEAD, PRIMARY
  • 15
    8M6001251 ROTOR, DISTRIBUTOR
    ROTOR, DISTRIBUTOR
  • 16
    12-36275 WASHER, ROTOR
    WASHER, ROTOR
  • 17
    393-9459Q1 CAP, DISTRIBUTOR
    CAP, DISTRIBUTOR
  • 18
    33654 BUTTON , CARBON-DISTRIBUTOR CAP
    BUTTON , CARBON-DISTRIBUTOR CAP
  • 19
    10-33660 SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (8-32)
    SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (8-32)
  • 20
    10-33663 SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (10-32)
    SCREW, DISTRIBUTOR CAP TO PRIMARY HOUSING (10-32)
  • 21
    27-344863 GASKET, DISTRIBUTOR
    GASKET, DISTRIBUTOR
  • 22
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (CYL. #1)
    LEAD ASSEMBLY, HIGH TENSION (CYL. #1)
  • 22
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (CYL. #2)
    LEAD ASSEMBLY, HIGH TENSION (CYL. #2)
  • 22
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (CYL. #3)
    LEAD ASSEMBLY, HIGH TENSION (CYL. #3)
  • 22
    84-815297A39 LEAD ASSEMBLY, HIGH TENSION (CYL. #4)
    LEAD ASSEMBLY, HIGH TENSION (CYL. #4)
  • 23
    33-97389 SPARK PLUG (CHAMPION #RBL-9Y)
    SPARK PLUG (CHAMPION #RBL-9Y)
  • 24
    54676 RETAINER, HIGH TENSION LEADS
    RETAINER, HIGH TENSION LEADS
  • 25
    54-72821 CLAMP, HIGH TENSION LEADS
    CLAMP, HIGH TENSION LEADS
  • 26
    16-73583 STUD, HIGH TENSION LEAD CLAMP ATTACHING
    STUD, HIGH TENSION LEAD CLAMP ATTACHING
  • 27
    84-815297A45 WIRE, DISTRIBUTOR TO COIL
    WIRE, DISTRIBUTOR TO COIL
  • 28
    898253T24 COIL, IGNITION
    COIL, IGNITION
  • 29
    65970T1 BRACKET, IGNITION COIL MOUNTING
    BRACKET, IGNITION COIL MOUNTING
  • 30
    10-66652 SCREW, MOUNTING BRACKET TO COIL
    SCREW, MOUNTING BRACKET TO COIL
  • 31
    12-30164 WASHER, IGNITION COIL TERMINAL
    WASHER, IGNITION COIL TERMINAL
  • 31
    13-26996 LOCKWASHER, IGNITION COIL TERMINAL
    LOCKWASHER, IGNITION COIL TERMINAL
  • 32
    11-68219 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 33
    67511 CLAMP UNIT, DISTRIBUTOR
    CLAMP UNIT, DISTRIBUTOR
  • 34
    10-35386 SCREW, DISTRIBUTOR TO CYLINDER BLOCK
    SCREW, DISTRIBUTOR TO CYLINDER BLOCK
  • 35
    13-26993 LOCKWASHER, DISTRIBUTOR TO CYLINDER BLOCK SCREW
    LOCKWASHER, DISTRIBUTOR TO CYLINDER BLOCK SCREW
