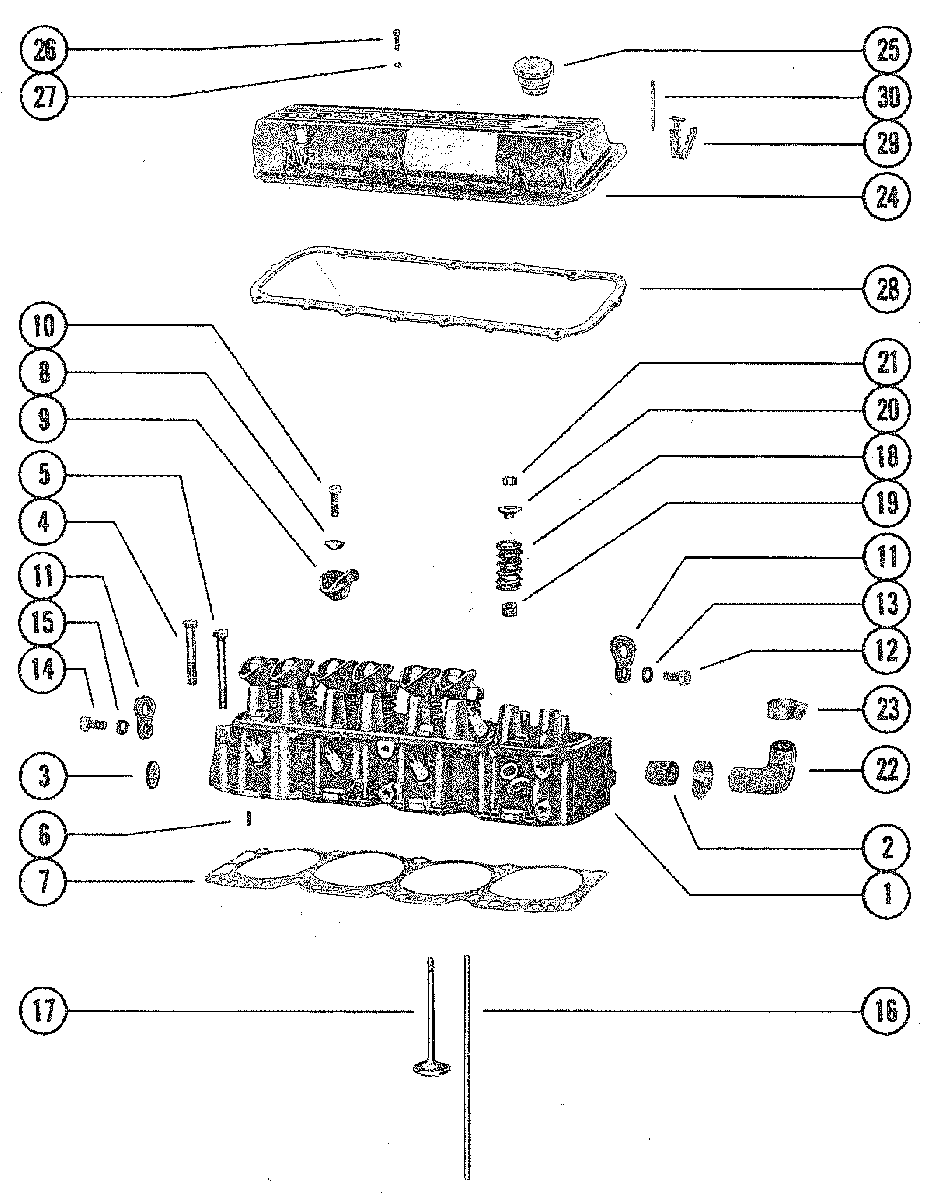

CYLINDER HEAD ASSEMBLY AND ROCKER COVER для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1976-1979 4208730 THRU 5520114

  • №
    Артикул
    Название
  • 1
    966-9451R2 CYLINDER HEAD ASSSEMBLY
    CYLINDER HEAD ASSSEMBLY
  • 2
    23-72119 SLEEVE,WATER
    SLEEVE,WATER
  • 3
    19-74832 PLUG
    PLUG
  • 4
    10-67503 SCREW, CYLINDER HEAD ATTACHING (4 3/8")
    SCREW, CYLINDER HEAD ATTACHING (4 3/8")
  • 5
    10-72769 SCREW, CYLINDER HEAD ATTACHING (5 1/8")
    SCREW, CYLINDER HEAD ATTACHING (5 1/8")
  • 6
    17-67489 PIN, CYLINDER HEAD
    PIN, CYLINDER HEAD
  • 7
    27-13709 GASKET, CYLINDER HEAD
    SERIAL 00000000-05149601
    GASKET, CYLINDER HEAD
    SERIAL 00000000-05149601
  • 7
    27-13709 GASKET, CYLINDER HEAD
    SERIAL 05149602-09999999
    GASKET, CYLINDER HEAD
    SERIAL 05149602-09999999
  • 8
    67504 BALL UNIT, ROCKER COVER
    BALL UNIT, ROCKER COVER
  • 9
    806751A1 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 10
    10-67506 SCREW ROCKER ARM
    SCREW ROCKER ARM
  • 11
    54-72531 LIFTING EYE
    LIFTING EYE
  • 12
    10-48948 SCREW, LIFTING EYE ATTACHING - FRONT (7/16-14X7/8")
    SERIAL 00000000-04625579
    SCREW, LIFTING EYE ATTACHING - FRONT (7/16-14X7/8")
    SERIAL 00000000-04625579
  • 13
    13-32993 LOCKWASHER, LIFTING EYE SCREW
    SERIAL 00000000-04625579
    LOCKWASHER, LIFTING EYE SCREW
    SERIAL 00000000-04625579
  • 14
    10-21077 SCREW, LIFTING EYE ATTACHING-REAR (3/8-16X7/8")
    SERIAL 00000000-04625579
    SCREW, LIFTING EYE ATTACHING-REAR (3/8-16X7/8")
    SERIAL 00000000-04625579
  • 12
    10-68101 SCREW, LIFTING EYE-FRONT (3/8-1 3/8")
    SERIAL 04886620-09999999
    SCREW, LIFTING EYE-FRONT (3/8-1 3/8")
    SERIAL 04886620-09999999
  • 13
    12-25909 WASHER, LIFTING EYE SCREW
    SERIAL 04886620-09999999
    WASHER, LIFTING EYE SCREW
    SERIAL 04886620-09999999
  • 14
    10-74826 SCREW, LIFTING EYE-REAR (5/16-4")
    SERIAL 04886620-09999999
    SCREW, LIFTING EYE-REAR (5/16-4")
    SERIAL 04886620-09999999
  • 15
    13-35048 LOCKWASHER, LIFTING EYE SCREW
    LOCKWASHER, LIFTING EYE SCREW
  • 16
    675025 PUSH ROD, VALVE-STD
    PUSH ROD, VALVE-STD
  • 16
    675023 PUSH ROD, VALVE (.030 U.S.)
    PUSH ROD, VALVE (.030 U.S.)
  • 16
    675024 PUSH ROD, VALVE (.030 O.S.)
    PUSH ROD, VALVE (.030 O.S.)
  • 17
    44182A1 VALVE, EXHAUTT-STD
    VALVE, EXHAUTT-STD
  • 17
    75415 VALVE, EXHAUST (.015 O.S.)
    VALVE, EXHAUST (.015 O.S.)
  • 17
    75416 VALVE, INTAKE-STD
    VALVE, INTAKE-STD
  • 17
    75417 VALVE, INTAKE (.015 O.S.)
    VALVE, INTAKE (.015 O.S.)
  • 18
    24-75411T VALVE SPRING
    VALVE SPRING
  • 19
    26-75624 SEAL, VALVE STEM
    SEAL, VALVE STEM
  • 20
    75412 RETAINER, VALVE SPRING
    RETAINER, VALVE SPRING
  • 21
    28-547971 KEY, VALVE STEM
    KEY, VALVE STEM
  • 22
    32-74767 HOSE, SLEEVE TO RESERVOIR
    HOSE, SLEEVE TO RESERVOIR
  • 23
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 24
    41638A1 ROCKER VAVLE COVER
    SERIAL 00000000-04625579
    ROCKER VAVLE COVER
    SERIAL 00000000-04625579
  • 24
    41638A1 ROCKER VALVE COVER
    SERIAL 04625580-09999999
    ROCKER VALVE COVER
    SERIAL 04625580-09999999
  • 25
    36-807152 CAP, OIL FILLER
    CAP, OIL FILLER
  • 26
    10-65746 SCREW, ROCKER COVER ATTACHING (1/4-20X3/4")
    SCREW, ROCKER COVER ATTACHING (1/4-20X3/4")
  • 27
    13-22773 LOCKWASHER, ROCKER COVER SCREW
    LOCKWASHER, ROCKER COVER SCREW
  • 28
    27-73666 GASKET, ROCKER COVER
    GASKET, ROCKER COVER
  • 29
    54-72821 CLAMP,HIGH TENSION LEAD
    CLAMP,HIGH TENSION LEAD
  • 30
    16-73583 STUD,CLAMP TO CYLINDER HEAD (2 11/16")
    STUD,CLAMP TO CYLINDER HEAD (2 11/16")
