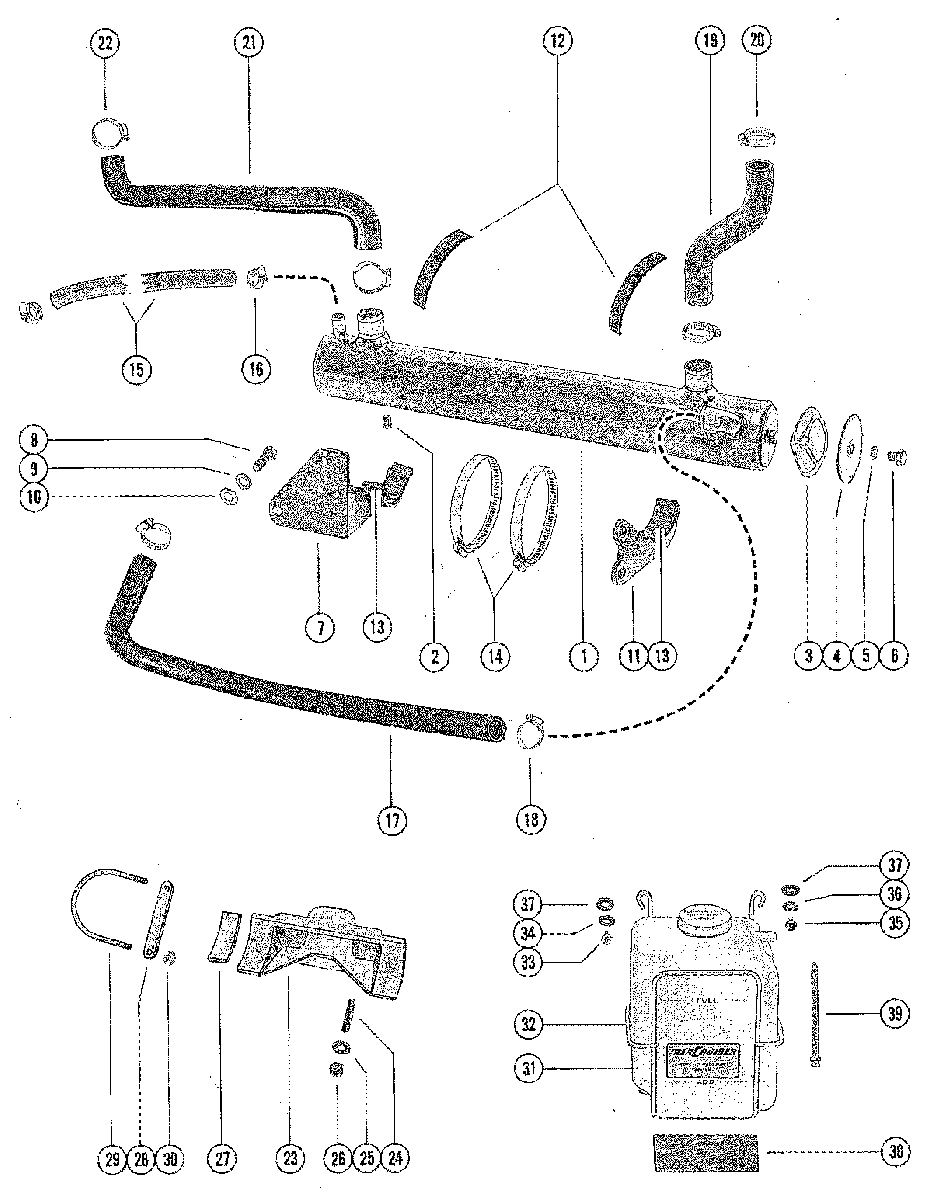

HEAT EXCHANGER AND COOLANT RECOVERY ASSEMBLY для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1976-1979 4208730 THRU 5520114

  • №
    Артикул
    Название
  • 1
    75959F1 HEAT EXCHANGER
    SERIAL 00000000-04625579
    HEAT EXCHANGER
    SERIAL 00000000-04625579
  • 1
    77319A1 HEAT EXCHANGER
    SERIAL 04625580-09999999
    HEAT EXCHANGER
    SERIAL 04625580-09999999
  • 2
    22-328022 PIPE PLUG, HEAT EXCHANGER
    PIPE PLUG, HEAT EXCHANGER
  • 3
    27-75450 GASKET, END CAP-HEAT EXCHANGER
    GASKET, END CAP-HEAT EXCHANGER
  • 4
    87924 PLATE, END CAP-HEAT EXCHANGER
    PLATE, END CAP-HEAT EXCHANGER
  • 5
    12-75451 WASHER, END CAP-HEAT EXCHANGER ATTACHING
    WASHER, END CAP-HEAT EXCHANGER ATTACHING
  • 6
    10-98259 SCREW, END CAP-HEAT EXCHANGER ATTACHING
    SCREW, END CAP-HEAT EXCHANGER ATTACHING
  • 7
    73744 HEAT EXCHANGER-REAR
    SERIAL 00000000-04625579
    HEAT EXCHANGER-REAR
    SERIAL 00000000-04625579
  • 8
    10-47462 SCREW, REAR BRACKET ATTACHING (1 1/4")
    SERIAL 00000000-04625579
    SCREW, REAR BRACKET ATTACHING (1 1/4")
    SERIAL 00000000-04625579
  • 9
    13-32993 LOCKWASHER, REAR BRACKET ATTACHING SCREW
    SERIAL 00000000-04625579
    LOCKWASHER, REAR BRACKET ATTACHING SCREW
    SERIAL 00000000-04625579
  • 10
    12-22248 WASHER, REAR BRACKET ATTACHING SCREW
    SERIAL 00000000-04625579
    WASHER, REAR BRACKET ATTACHING SCREW
    SERIAL 00000000-04625579
  • 11
    74790 BRACKET, HEAT EXCHANGER-FRONT
    SERIAL 00000000-04625579
    BRACKET, HEAT EXCHANGER-FRONT
    SERIAL 00000000-04625579
  • 12
    74819 PAD, HEAT EXCHANGER-UPPER
    SERIAL 00000000-04625579
    PAD, HEAT EXCHANGER-UPPER
    SERIAL 00000000-04625579
  • 13
    76145 PAD, HEAT EXCHANGER-LOWER
    SERIAL 00000000-04625579
    PAD, HEAT EXCHANGER-LOWER
    SERIAL 00000000-04625579
  • 14
    54-60488 CLAMP, HEAT EXCHANGER ATTACHING
    SERIAL 00000000-04625579
    CLAMP, HEAT EXCHANGER ATTACHING
    SERIAL 00000000-04625579
  • 15
    32-47642 HOSE, DRIVE TO HEAT EXCHANGER
    SERIAL 00000000-04625579
    HOSE, DRIVE TO HEAT EXCHANGER
    SERIAL 00000000-04625579
  • 16
    54-815504310 CLAMP, HOSE ATTACHING
    SERIAL 00000000-04625579
    CLAMP, HOSE ATTACHING
    SERIAL 00000000-04625579
  • 17
    32-74638 HOSE, HEAT EXCHANGER TO EXHAUST ELBOW
    SERIAL 00000000-04625579
    HOSE, HEAT EXCHANGER TO EXHAUST ELBOW
    SERIAL 00000000-04625579
  • 18
    54-815504220 CLAMP, HOSE ATTACHING
    SERIAL 00000000-04625579
    CLAMP, HOSE ATTACHING
    SERIAL 00000000-04625579
  • 19
    32-74794 HOSE, HEAT EXCHANGER TO EXHAUST MANIFOLD (FRONT)
    SERIAL 00000000-04625579
    HOSE, HEAT EXCHANGER TO EXHAUST MANIFOLD (FRONT)
    SERIAL 00000000-04625579
  • 20
    54-815504220 CLAMP,HOSE ATTACHING
    CLAMP,HOSE ATTACHING
  • 21
    32-74636 HOSE, HEAT EXCHANGER TO THERMOSTAT HOUSING
    SERIAL 00000000-04487700
    HOSE, HEAT EXCHANGER TO THERMOSTAT HOUSING
    SERIAL 00000000-04487700
  • 21
    32-75960 HOSE, HEAT EXCHANGER TO THERMOSTAT HOUSING
    SERIAL 04487701-04625579
    HOSE, HEAT EXCHANGER TO THERMOSTAT HOUSING
    SERIAL 04487701-04625579
  • 22
    54-815504220 CLAMP, HOSE ATTACHING
    SERIAL 00000000-04625579
    CLAMP, HOSE ATTACHING
    SERIAL 00000000-04625579
  • 17
    32-77332 HOSE, HEAT EXCHANGER TO EXHASUT ELBOW
    SERIAL 04625580-09999999
    HOSE, HEAT EXCHANGER TO EXHASUT ELBOW
    SERIAL 04625580-09999999
  • 18
    54-815504220 CLAMP, HOSE ATTACHING
    SERIAL 04625580-09999999
    CLAMP, HOSE ATTACHING
    SERIAL 04625580-09999999
  • 21
    32-77245 HOSE, HEAT EXCHANGER TO THERMOSTAT HOUSING (21 3/4")
    SERIAL 04625580-09999999
    HOSE, HEAT EXCHANGER TO THERMOSTAT HOUSING (21 3/4")
    SERIAL 04625580-09999999
  • 21
    32-77331 HOSE,HEAT EXCHANGER TO THERMOSTAT HOUSING (12")
    SERIAL 04625580-09999999
    HOSE,HEAT EXCHANGER TO THERMOSTAT HOUSING (12")
    SERIAL 04625580-09999999
  • 22
    54-815504220 CLAMP,HOSE ATTACHING
    SERIAL 04625580-09999999
    CLAMP,HOSE ATTACHING
    SERIAL 04625580-09999999
  • 23
    98618A1 BRACKET, HEAT EXCHANGER MOUNTING
    SERIAL 04625580-09999999
    BRACKET, HEAT EXCHANGER MOUNTING
    SERIAL 04625580-09999999
  • 24
    16-31632 STUD, BRACKET ATTACHING
    SERIAL 04625580-09999999
    STUD, BRACKET ATTACHING
    SERIAL 04625580-09999999
  • 25
    12-22248 WASHER, BRACKET STUD
    SERIAL 04625580-09999999
    WASHER, BRACKET STUD
    SERIAL 04625580-09999999
  • 26
    11-34933 NUT, BRACKET STUD
    SERIAL 04625580-09999999
    NUT, BRACKET STUD
    SERIAL 04625580-09999999
  • 27
    77223 PAD, MOUNTING BRACKET
    SERIAL 04625580-09999999
    PAD, MOUNTING BRACKET
    SERIAL 04625580-09999999
  • 28
    77225 STRAP, BRACKET TO HEAT EXCHANGER
    SERIAL 04625580-09999999
    STRAP, BRACKET TO HEAT EXCHANGER
    SERIAL 04625580-09999999
  • 29
    10-77403 "U" BOLT, RACKET TO HEAT EXCHANGER
    SERIAL 04625580-09999999
    "U" BOLT, RACKET TO HEAT EXCHANGER
    SERIAL 04625580-09999999
  • 30
    11-26484 N1T, "U" BOLT ATTACHING
    SERIAL 04625580-09999999
    N1T, "U" BOLT ATTACHING
    SERIAL 04625580-09999999
  • 31
    71587A11 BOTTLE, COOLANT RECOVERY
    BOTTLE, COOLANT RECOVERY
  • 32
    76276 BRACKET, BOTTLE
    BRACKET, BOTTLE
  • 33
    10-20359 SCREW, BRACKET TOHEAD-PORT (3/8-16X1")
    SCREW, BRACKET TOHEAD-PORT (3/8-16X1")
  • 34
    13-35048 LOCKWASHER, BRACKET ATTACHING SCREW
    LOCKWASHER, BRACKET ATTACHING SCREW
  • 35
    10-47461 SCREW, BRACKET TO HEAD, STBD. (7/16-14X1)
    SCREW, BRACKET TO HEAD, STBD. (7/16-14X1)
  • 36
    13-32993 LOCKWASHER, BRACKET ATTACHING SCREW
    LOCKWASHER, BRACKET ATTACHING SCREW
  • 37
    12-27339 WASHER, BRACKET ATTACHING SCREW
    WASHER, BRACKET ATTACHING SCREW
  • 38
    772233 PAD, BOTTLE MOUNTING
    PAD, BOTTLE MOUNTING
  • 39
    61990 STA-STRAP, HOSE ATTACHING
    STA-STRAP, HOSE ATTACHING
