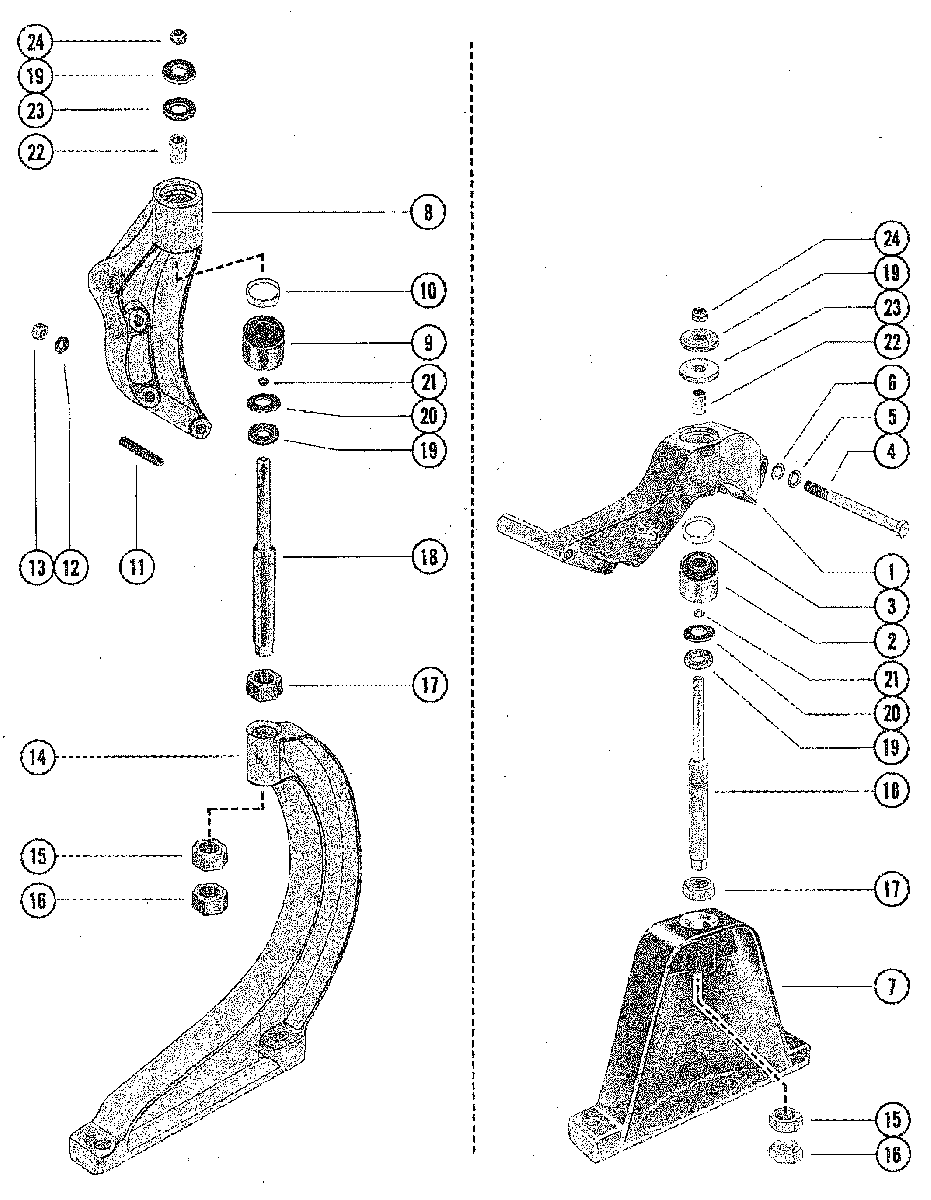

FRONT MOUNT ASSEMBLY для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1976-1979 4208730 THRU 5520114

  • №
    Артикул
    Название
  • 1
    68720A2 FRONT MOUNT BRACKET ASSEMBLY
    SERIAL 00000000-04625579
    FRONT MOUNT BRACKET ASSEMBLY
    SERIAL 00000000-04625579
  • 2
    32833 MOUNT,RUBBER
    SERIAL 00000000-04625579
    MOUNT,RUBBER
    SERIAL 00000000-04625579
  • 3
    23-99322 SPACER, RUBBER MOUNT
    SERIAL 00000000-04625579
    SPACER, RUBBER MOUNT
    SERIAL 00000000-04625579
  • 4
    1399-879194026 SCREW, FRONT MOUNT BRACKET-PORT (6")
    SERIAL 00000000-04625579
    SCREW, FRONT MOUNT BRACKET-PORT (6")
    SERIAL 00000000-04625579
  • 4
    10-74027 SCREW, FORNT MOUNT BRACKET-STBK (5 1/2")
    SERIAL 00000000-04625579
    SCREW, FORNT MOUNT BRACKET-STBK (5 1/2")
    SERIAL 00000000-04625579
  • 5
    13-32993 LOCKWASHER, FRONT MOUNT BRACKET SCREW
    SERIAL 00000000-04625579
    LOCKWASHER, FRONT MOUNT BRACKET SCREW
    SERIAL 00000000-04625579
  • 6
    12-34567 WASHER, FRONT MOUNT BRACKET SCREW
    SERIAL 00000000-04625579
    WASHER, FRONT MOUNT BRACKET SCREW
    SERIAL 00000000-04625579
  • 7
    32778T MOUNT, FRONT SUPPORT
    SERIAL 00000000-04625579
    MOUNT, FRONT SUPPORT
    SERIAL 00000000-04625579
  • 8
    77877A2 FRONT MOUNT BRACKET ASSEMBLY
    SERIAL 04625580-09999999
    FRONT MOUNT BRACKET ASSEMBLY
    SERIAL 04625580-09999999
  • 10
    23-35903 SPACER,RUBBER MOUNT
    SERIAL 04625580-09999999
    SPACER,RUBBER MOUNT
    SERIAL 04625580-09999999
  • 11
    16-56295 STUD, MOUNTING BRACKET ATTACHING (UPPER)
    SERIAL 04625580-09999999
    STUD, MOUNTING BRACKET ATTACHING (UPPER)
    SERIAL 04625580-09999999
  • 11
    16-32129 STUD, MOUNTING BRACKET ATTACHING (LOWER)
    SERIAL 04625580-09999999
    STUD, MOUNTING BRACKET ATTACHING (LOWER)
    SERIAL 04625580-09999999
  • 12
    12-34567 WASHER, MOUNTING BRACKET STUD
    SERIAL 04625580-09999999
    WASHER, MOUNTING BRACKET STUD
    SERIAL 04625580-09999999
  • 13
    11-34933 NUT, MOUNTIN BRACKET STUD
    SERIAL 04625580-09999999
    NUT, MOUNTIN BRACKET STUD
    SERIAL 04625580-09999999
  • 14
    76839T MOUNT, FRONT SUPPORT
    SERIAL 04625580-09999999
    MOUNT, FRONT SUPPORT
    SERIAL 04625580-09999999
  • 15
    11-32882 NUT, FRONT SUPPORT MOUNT TO ADJUSTING STUD
    NUT, FRONT SUPPORT MOUNT TO ADJUSTING STUD
  • 16
    11-47525 NUT, FRONT SUPPORT MOUNT TO ADJUSTING STUD
    NUT, FRONT SUPPORT MOUNT TO ADJUSTING STUD
  • 17
    11-32882 NUT, ADJUSTING STUD (7/8-14)
    NUT, ADJUSTING STUD (7/8-14)
  • 18
    16-36100T STUD, ADJUSTING
    STUD, ADJUSTING
  • 19
    12-36103 WASHER, STEEL-UPPER AND LOWER
    WASHER, STEEL-UPPER AND LOWER
  • 20
    12-32638 WASHER, FIBER-ADJUSTINH STUD
    WASHER, FIBER-ADJUSTINH STUD
  • 21
    12-20959 WASHER, SPACER-ADJUSTING STUD
    WASHER, SPACER-ADJUSTING STUD
  • 22
    23-36101 SPACER, ADJUSTING STUD
    SPACER, ADJUSTING STUD
  • 23
    12-36104 WASHER, FIBER-ADJUSTING STUD
    WASHER, FIBER-ADJUSTING STUD
  • 24
    11-82671317 NUT, ADJUSTING STUD (1/2-20)
    NUT, ADJUSTING STUD (1/2-20)
