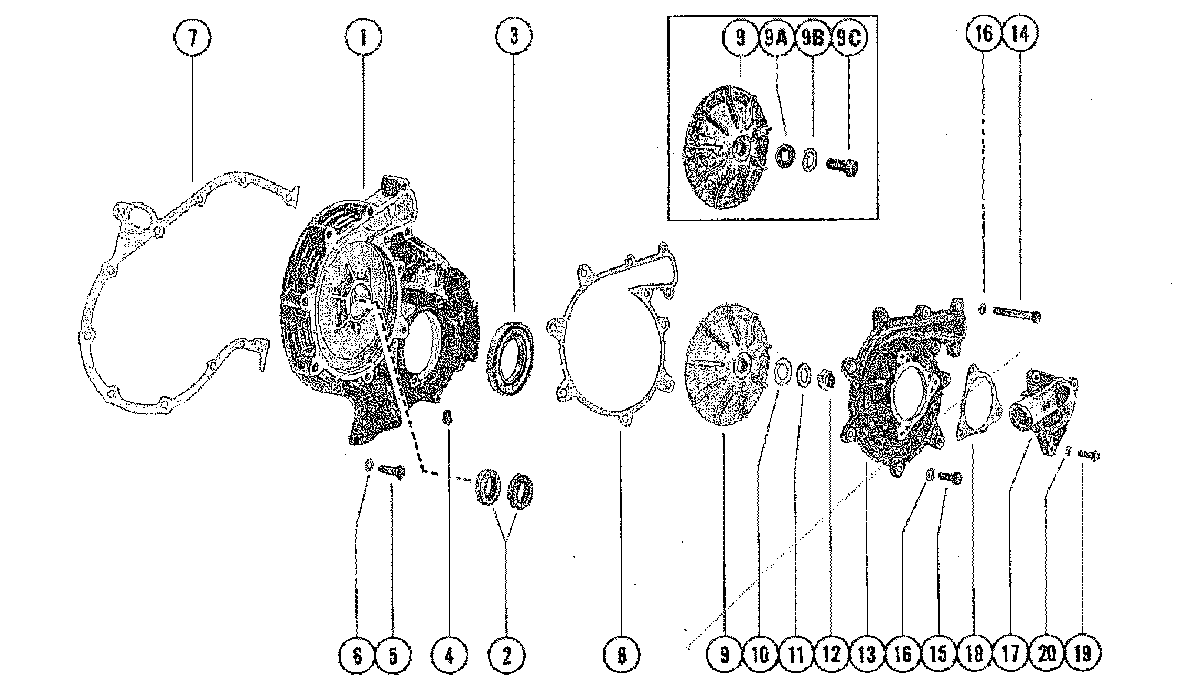

FRONT COVER ASSEMBLY для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1976-1979 4208730 THRU 5520114

  • №
    Артикул
    Название
  • 1
    71903A2 FRONT COVER ASSEMBLY
    FRONT COVER ASSEMBLY
  • 2
    26-89238 SEAL, WATER PUMP
    SEAL, WATER PUMP
  • 3
    26-67388 SEAL, FRONT
    SEAL, FRONT
  • 4
    22-328022 PIPE PLUG, DRAIN
    PIPE PLUG, DRAIN
  • 5
    10-35386 SCREW, FRONT COVER TO CYLINDER BLOCK (1")
    SCREW, FRONT COVER TO CYLINDER BLOCK (1")
  • 6
    12-20084 WASHER, FRONT COVER TO CYLINDER BLOCK SCREW
    WASHER, FRONT COVER TO CYLINDER BLOCK SCREW
  • 7
    27-68714A7 GASKET, FRONT COVER TO CYLINDER BLOCK
    GASKET, FRONT COVER TO CYLINDER BLOCK
  • 8
    27-68714A7 GASKET, IMPELLER COVER TO FRONT COVER
    GASKET, IMPELLER COVER TO FRONT COVER
  • 9
    47-71905 IMPELLER, WATER PUMP
    SERIAL 00000000-05195053
    IMPELLER, WATER PUMP
    SERIAL 00000000-05195053
  • 10
    15-72967 SHIM, IMPELLER ATTACHING SERIAL AND BELOW
    SERIAL 00000000-05195053
    SHIM, IMPELLER ATTACHING SERIAL AND BELOW
    SERIAL 00000000-05195053
  • 11
    12-72930 WASHER, IMPELLER ATTACHING
    SERIAL 00000000-05195053
    WASHER, IMPELLER ATTACHING
    SERIAL 00000000-05195053
  • 12
    11-72966 NUT, IMPELLER ATTACHING
    SERIAL 00000000-05195053
    NUT, IMPELLER ATTACHING
    SERIAL 00000000-05195053
  • 9
    47-86462A1 IMPELLER, WATER PUMP
    SERIAL 05195054-09999999
    IMPELLER, WATER PUMP
    SERIAL 05195054-09999999
  • 9A
    12-26168 WASHER, IMPELLER SCREW
    SERIAL 05195054-09999999
    WASHER, IMPELLER SCREW
    SERIAL 05195054-09999999
  • 9B
    13-21804 LOCKWASHER, IMPELLER SCREW
    SERIAL 05195054-09999999
    LOCKWASHER, IMPELLER SCREW
    SERIAL 05195054-09999999
  • 9C
    10-86750 SCREW, IMPELLER ATTACHING
    SERIAL 05195054-09999999
    SCREW, IMPELLER ATTACHING
    SERIAL 05195054-09999999
  • 13
    71902A1 COVER, IMPELLER
    COVER, IMPELLER
  • 14
    10-67450 SCREW, COVER TO CYLINDER BLOCK (2 1/4")
    SCREW, COVER TO CYLINDER BLOCK (2 1/4")
  • 15
    10-35386 SCREW, IMPELLER COVER TO FRONT COVER (1")
    SCREW, IMPELLER COVER TO FRONT COVER (1")
  • 16
    12-20084 WASHER, COVER ATTACHING SCREWS
    WASHER, COVER ATTACHING SCREWS
  • 17
    71904A1 COVER, WATER INLET
    COVER, WATER INLET
  • 18
    27-68714A7 GASKET, WATER INLET COVER
    GASKET, WATER INLET COVER
  • 19
    10-28668 SCREW, INLET COVER TO IMPELLER COVER (7/8")
    SCREW, INLET COVER TO IMPELLER COVER (7/8")
  • 20
    12-21249 WASHER, INLET COVER TO IMPELLER COVER SCREW
    WASHER, INLET COVER TO IMPELLER COVER SCREW
  • -
    27-74830A3 ENGINE GASKET SET
    ENGINE GASKET SET
