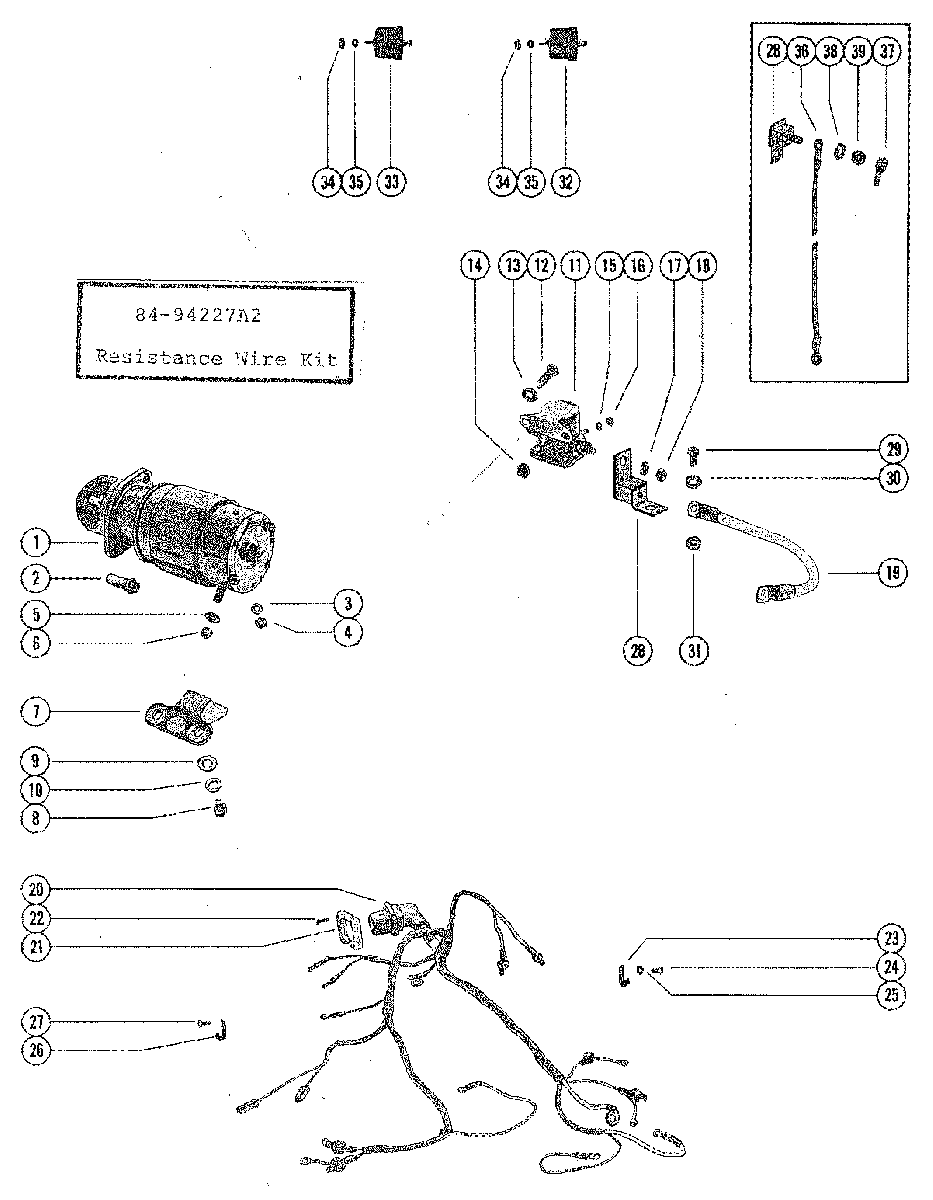

STARTER ASSEMBLY AND WIRING HARNESS для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1976-1979 4208730 THRU 5520114

  • №
    Артикул
    Название
  • 1
    50-72550R2 STARTER ASSEMBLY
    STARTER ASSEMBLY
  • 2
    10-72875 SCREW, STARTER ATTACHING (1 1/2")
    SCREW, STARTER ATTACHING (1 1/2")
  • 3
    12-34931 WASHER, STARTER STUD
    WASHER, STARTER STUD
  • 4
    11-23161 NUT, STARTER STUD
    NUT, STARTER STUD
  • 5
    13-26993 LOCKWASHER, STARTER TERMINAL
    LOCKWASHER, STARTER TERMINAL
  • 6
    11-29250 NUT, STARTER TERMINAL
    NUT, STARTER TERMINAL
  • 7
    70398A1 BRACE- STARTER TO CYLINDER BLOCK
    BRACE- STARTER TO CYLINDER BLOCK
  • 8
    10-21077 SCREW, STARTER BRACE TO CYLINDER BLOCK (7/8")
    SCREW, STARTER BRACE TO CYLINDER BLOCK (7/8")
  • 9
    12-34931 WASHER, STARTER BRACE SCREW
    WASHER, STARTER BRACE SCREW
  • 10
    13-35048 LOCKWASHER, STARTER BRACE SCREW
    LOCKWASHER, STARTER BRACE SCREW
  • 11
    65057T1 STARTER SOLENOID
    STARTER SOLENOID
  • 12
    10-28635 SCREW, SOLENOID TO CYLINDER BLOCK (5/8")
    SCREW, SOLENOID TO CYLINDER BLOCK (5/8")
  • 13
    13-26992 LOCKWASHER, SOLENOID TO CYLINDER BLOCK SCREW
    LOCKWASHER, SOLENOID TO CYLINDER BLOCK SCREW
  • 14
    269011 BUMPER, SOLENOID
    BUMPER, SOLENOID
  • 15
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    LOCKWASHER, SOLENOID TERMINAL (#10)
  • 16
    11-68219 NUT, SOLENOID TERMINAL (#10-32)
    NUT, SOLENOID TERMINAL (#10-32)
  • 17
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16)
    LOCKWASHER, SOLENOID TERMINAL (5/16)
  • 18
    11-22053 NUT, SOLENOID TERMINAL (5/16-24)
    NUT, SOLENOID TERMINAL (5/16-24)
  • 19
    84-77042 CABLE, SOLENOID TO STARTER
    CABLE, SOLENOID TO STARTER
  • 20
    84-86675A2 WIRING HARNESS
    WIRING HARNESS
  • 21
    26079A2 PLATE, HARNESS ATTACHING
    PLATE, HARNESS ATTACHING
  • 22
    10-46718 SCREW, PLATE TO BRACKET (3/4")
    SCREW, PLATE TO BRACKET (3/4")
  • 23
    54-642351 "J" CLIP, WIRING HARNESS
    "J" CLIP, WIRING HARNESS
  • 24
    10-98253 SCREW, WIRING HARNESS CLAMP TO MANIFOLD (1/2")
    SCREW, WIRING HARNESS CLAMP TO MANIFOLD (1/2")
  • 25
    13-26992 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 26
    54-73668 "J" CLIP, WIRING HARNESS TO INTAKE MANIFOLD
    "J" CLIP, WIRING HARNESS TO INTAKE MANIFOLD
  • 27
    10-98260 SCREW, CLIP TO INTAKE MANIFOLD
    SCREW, CLIP TO INTAKE MANIFOLD
  • 28
    88-79023T56 FUSE ASS'Y, SOLENOID (55 AMP)
    SERIAL 04886620-05064928
    FUSE ASS'Y, SOLENOID (55 AMP)
    SERIAL 04886620-05064928
  • 28
    88-79023T90 FUSE ASS'Y, SOLENOID ( 90 AMP)-
    SERIAL 05064929-09999999
    FUSE ASS'Y, SOLENOID ( 90 AMP)-
    SERIAL 05064929-09999999
  • 29
    10-35386 SCREW, CABLE TO FUSE ATTACHING (5/16 X 1")
    SERIAL 04886620-09999999
    SCREW, CABLE TO FUSE ATTACHING (5/16 X 1")
    SERIAL 04886620-09999999
  • 30
    13-39107 LOCKWASHER, CABLE TO FUSE ATTACHING SCREW
    SERIAL 04886620-09999999
    LOCKWASHER, CABLE TO FUSE ATTACHING SCREW
    SERIAL 04886620-09999999
  • 31
    11-21908 NUT, CABLE ATTACHING SCREW
    SERIAL 04886620-09999999
    NUT, CABLE ATTACHING SCREW
    SERIAL 04886620-09999999
  • 32
    8M0068784 SENDING UNIT, OIL PRESSURE
    SENDING UNIT, OIL PRESSURE
  • 33
    87-805605A1 SWITCH, OIL PRESSURE
    SERIAL 00000000-04625579
    SWITCH, OIL PRESSURE
    SERIAL 00000000-04625579
  • 34
    11-68219 NUT, SWITCH AND SENDING UNIT TERMINAL
    SERIAL 00000000-04625579
    NUT, SWITCH AND SENDING UNIT TERMINAL
    SERIAL 00000000-04625579
  • 35
    13-26996 LOCKWASHER, SWITCH AND SENDING UNIT TERMINAL
    SERIAL 00000000-04625579
    LOCKWASHER, SWITCH AND SENDING UNIT TERMINAL
    SERIAL 00000000-04625579
  • 36
    84-79139A5 JUMPER WIRE, 90 AMP FUSE
    SERIAL 05064929-09999999
    JUMPER WIRE, 90 AMP FUSE
    SERIAL 05064929-09999999
  • 37
    85-79695T BOOT, INSULATOR-FUSE STUD
    SERIAL 04886620-09999999
    BOOT, INSULATOR-FUSE STUD
    SERIAL 04886620-09999999
  • 38
    13-26992 LOCKWASHER, FUSE STUD
    SERIAL 04886620-09999999
    LOCKWASHER, FUSE STUD
    SERIAL 04886620-09999999
  • 39
    11-29598 NUT, FUSE STUD
    SERIAL 04886620-09999999
    NUT, FUSE STUD
    SERIAL 04886620-09999999
