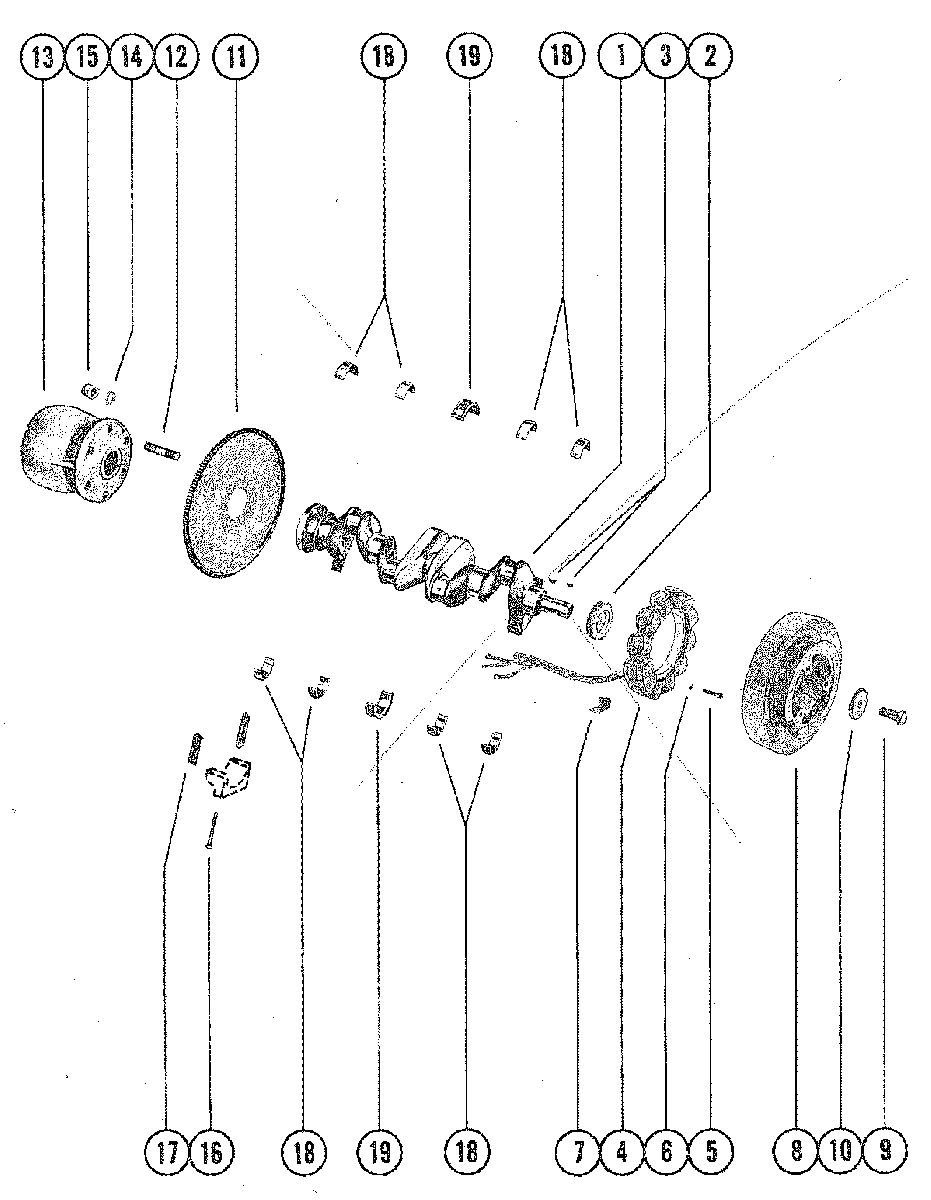

CRANKSHAFT, FLYWHEEL AND ALTERNATOR ASSEMBLY для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1976-1979 4208730 THRU 5520114

  • №
    Артикул
    Название
  • 1
    456-6092A1 CRANKSHAFT (SERIAL AND BELOW)
    SERIAL 00000000-04625579
    CRANKSHAFT (SERIAL AND BELOW)
    SERIAL 00000000-04625579
  • 1
    456-6092 CRSANKSHAFT (SERIAL AND UP)
    SERIAL 04625580-09999999
    CRSANKSHAFT (SERIAL AND UP)
    SERIAL 04625580-09999999
  • 2
    68700 SPROCKET, CRANKSHAFT
    SPROCKET, CRANKSHAFT
  • 3
    28-67382 KEY, SPROCKET AND ALTERNATOR
    KEY, SPROCKET AND ALTERNATOR
  • 4
    398-6231A2 STATOR ASSEMBLY, ALTERNATOR
    SERIAL 00000000-04625579
    STATOR ASSEMBLY, ALTERNATOR
    SERIAL 00000000-04625579
  • 5
    10-52034 SCREW, STATOR TO FRONT COVER (1 1/4")
    SERIAL 00000000-04625579
    SCREW, STATOR TO FRONT COVER (1 1/4")
    SERIAL 00000000-04625579
  • 6
    13-26996 LOCKWASHER, STATOR TO COVER SCREW
    SERIAL 00000000-04625579
    LOCKWASHER, STATOR TO COVER SCREW
    SERIAL 00000000-04625579
  • 4
    398-6231A10 STATOR ASSEMBLY, ALTERNATOR
    SERIAL 04625580-05120244
    STATOR ASSEMBLY, ALTERNATOR
    SERIAL 04625580-05120244
  • 5
    10-77363 SCREW, STATOR TO FRONT COVER (1 1/2")
    SERIAL 04625580-05120244
    SCREW, STATOR TO FRONT COVER (1 1/2")
    SERIAL 04625580-05120244
  • 6
    13-26996 LOCKWASHER, STATOR TO COVER SCREW
    SERIAL 04625580-05120244
    LOCKWASHER, STATOR TO COVER SCREW
    SERIAL 04625580-05120244
  • 4
    398-6231A10 STATOR ASSEMBLY, ALTERNATOR
    SERIAL 05120245-09999999
    STATOR ASSEMBLY, ALTERNATOR
    SERIAL 05120245-09999999
  • 5
    10-77363 SCREW, STATOR TO FRONT COVER (1 1/2")
    SERIAL 05120245-09999999
    SCREW, STATOR TO FRONT COVER (1 1/2")
    SERIAL 05120245-09999999
  • 6
    13-26996 LOCKWASHER, STATOR TO COVER SCREW
    SERIAL 05120245-09999999
    LOCKWASHER, STATOR TO COVER SCREW
    SERIAL 05120245-09999999
  • 7
    54-61001 "J" CLIP, ALTERNATOR LEAD ATTACHING
    "J" CLIP, ALTERNATOR LEAD ATTACHING
  • 8
    70902A1 ALTERNATOR ASS"Y, FLYWHEEL
    SERIAL 00000000-04625579
    ALTERNATOR ASS"Y, FLYWHEEL
    SERIAL 00000000-04625579
  • 8
    93009A06 ALTERNATOR ASS"Y, FLYWHEEL
    SERIAL 04625580-09999999
    ALTERNATOR ASS"Y, FLYWHEEL
    SERIAL 04625580-09999999
  • 9
    10-59644 SCREW, ALTERNATOR ASSEMBLY ATTACHING (1 3/8")
    SCREW, ALTERNATOR ASSEMBLY ATTACHING (1 3/8")
  • 10
    12-36103 WASHER, ALTERNATOR ASSEMBLY ATTACHING SCREW
    WASHER, ALTERNATOR ASSEMBLY ATTACHING SCREW
  • 11
    251-9741A2 FLYWHEEL
    FLYWHEEL
  • 12
    16-98532A1 STUD, FLYWHEEL TO COUPLING
    STUD, FLYWHEEL TO COUPLING
  • 13
    69354A2 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 14
    12-32648 WASHER, FLYWHEEL TO COUPLING STUD
    WASHER, FLYWHEEL TO COUPLING STUD
  • 15
    11-34933 NUT, FLYWHEEL TO COUPLING STUD
    NUT, FLYWHEEL TO COUPLING STUD
  • 16
    10-74335 SCREW, MAIN BEARING CAPS
    SCREW, MAIN BEARING CAPS
  • 17
    26-98421A1 SEAL, REAR BEARING CAP
    SEAL, REAR BEARING CAP
  • 18
    23-853849 MAIN BEARING ASSEMBLY (STD.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
    MAIN BEARING ASSEMBLY (STD.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
  • 18
    74313A2 MAIN BEARING ASSEMBLY (.002 U.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
    MAIN BEARING ASSEMBLY (.002 U.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
  • 18
    74313A3 MAIN BEARING ASSEMBLY (.020 U.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
    MAIN BEARING ASSEMBLY (.020 U.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
  • 19
    23-853849 CENTER MAIN BEARING ASS'Y (STD.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
    CENTER MAIN BEARING ASS'Y (STD.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
  • 19
    23-853852 CENTER MAIN BEARING ASS"Y (.020 U.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
    CENTER MAIN BEARING ASS"Y (.020 U.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
  • 19
    23-853852 CENTER MAIN BEARING ASS'Y (.020 U.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
    CENTER MAIN BEARING ASS'Y (.020 U.S.)
    WHEN ORDERING REPLACEMENT BEARINGS REFER TO M/C SERVICE MANUAL 90-67795 SEC. 5 PART D.
