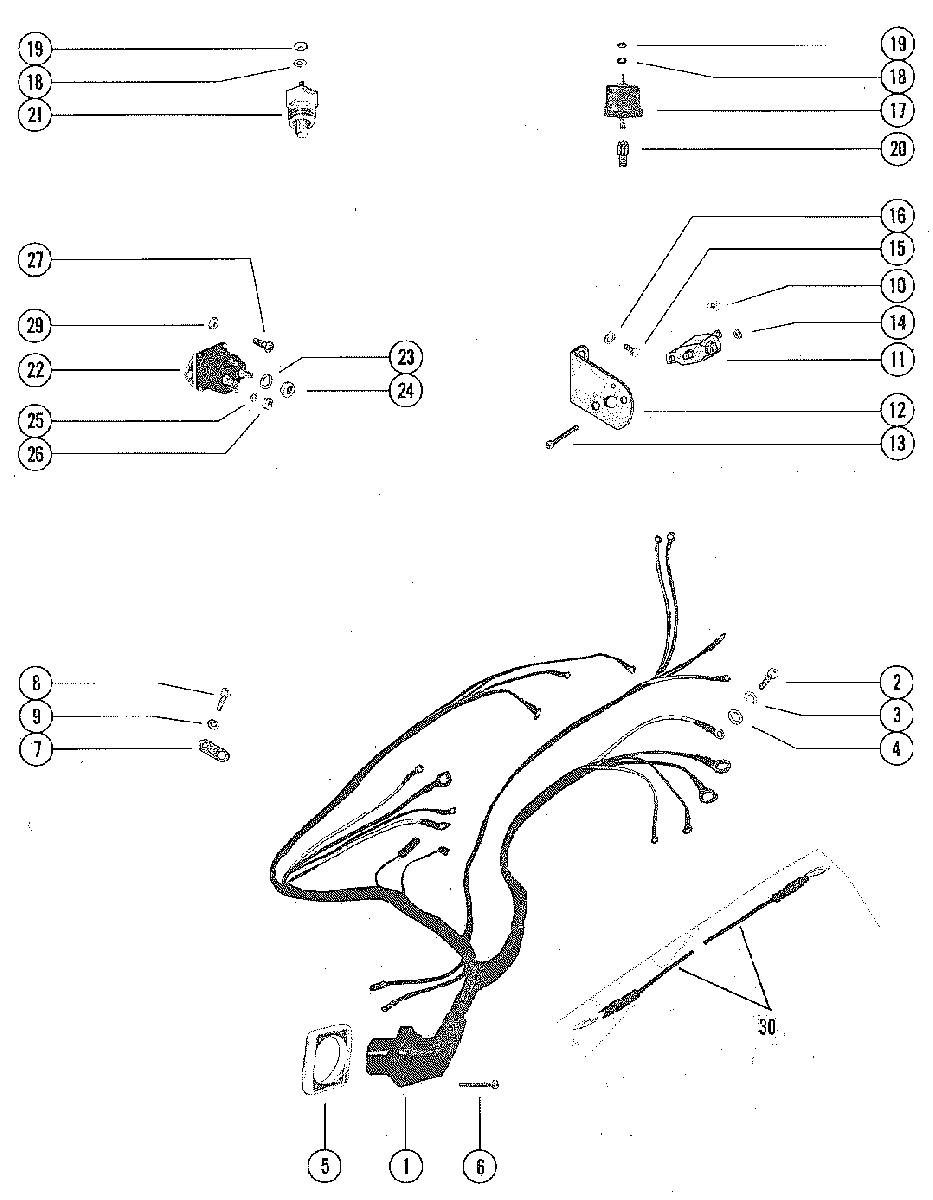

WIRING HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID для Mercruiser - 140 GM 181 I/L4 1979-1982 5157669 THRU 6229717

  • №
    Артикул
    Название
  • 1
    84-86673A2 WIRING HARNESS< EXTERNAL (USE WITH FUSE)
    WIRING HARNESS< EXTERNAL (USE WITH FUSE)
  • 1
    84-86673A2 WIRING HARNESS, EXTERNAL
    SERIAL 00000000-05811568
    WIRING HARNESS, EXTERNAL
    SERIAL 00000000-05811568
  • 1
    84-93179A1 WIRING HARNESS, EXTERNAL
    SERIAL 05811569-09999999
    WIRING HARNESS, EXTERNAL
    SERIAL 05811569-09999999
  • 2
    10-20055 SCREW, HARNESS LEADS TO ALTERNATOR (3/8")
    NOT USED WITH MOTOROLA ALTERNATOR
    SCREW, HARNESS LEADS TO ALTERNATOR (3/8")
    NOT USED WITH MOTOROLA ALTERNATOR
  • 3
    13-26996 LOCKWASHER, HARNESS LEAD SCREW
    NOT USED WITH MOTOROLA ALTERNATOR
    LOCKWASHER, HARNESS LEAD SCREW
    NOT USED WITH MOTOROLA ALTERNATOR
  • 4
    12-30164 WASHER, HARNESS LEAD SCREW
    NOT USED WITH MOTOROLA ALTERNATOR
    WASHER, HARNESS LEAD SCREW
    NOT USED WITH MOTOROLA ALTERNATOR
  • 5
    26079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKET
    PLATE, WIRING HARNESS TO MOUNTING BRACKET
  • 6
    10-46718 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
    SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
  • 7
    63770 TAB, HARNESS ATTACHING
    USED WITH B-84-66962A2
    TAB, HARNESS ATTACHING
    USED WITH B-84-66962A2
  • 8
    10-65746 SCREW, HARNESS TO ROCKER COVER
    USED WITH B-84-66962A2
    SCREW, HARNESS TO ROCKER COVER
    USED WITH B-84-66962A2
  • 9
    12-20583 WASHER, HARNESS TO ROCKER COVER SCREW
    USED WITH B-84-66962A2
    WASHER, HARNESS TO ROCKER COVER SCREW
    USED WITH B-84-66962A2
  • 10
    11-68219 NUT, CIRCUIT BREAKER STUD
    NUT, CIRCUIT BREAKER STUD
  • 11
    88-11178A01 CIRCUIT BREAKER
    CIRCUIT BREAKER
  • 12
    90923 BRACKET, CIRCUIT BREAKER
    SERIAL 00000000-05529884
    BRACKET, CIRCUIT BREAKER
    SERIAL 00000000-05529884
  • 12
    90923 BRACKET, SIRCUIT BREAKER
    SERIAL 05529885-09999999
    BRACKET, SIRCUIT BREAKER
    SERIAL 05529885-09999999
  • 13
    10-24637 SCREW, CIRCUIT BREAKER TO BRACKET (1")
    SCREW, CIRCUIT BREAKER TO BRACKET (1")
  • 14
    11-46438 NUT, CIRCUIT BREAKER ATTACHING SCREW
    NUT, CIRCUIT BREAKER ATTACHING SCREW
  • 15
    10-21077 SCREW, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD (7/8")
    SCREW, CIRCUIT BREAKER BRACKET TO CYLINDER HEAD (7/8")
  • 16
    13-35048 LOCKWASHER, CIRCUIT BREAKER BRACKET SCREW
    LOCKWASHER, CIRCUIT BREAKER BRACKET SCREW
  • 17
    8M0068784 OIL PRESSURE SENDER ASSEMBLY
    OIL PRESSURE SENDER ASSEMBLY
  • 18
    13-26996 WASHER, WATER SENDER/OIL PRESSURE SENDER TERM. (#10)
    WASHER, WATER SENDER/OIL PRESSURE SENDER TERM. (#10)
  • 19
    11-68219 NUT, WATER SENDER/OIL PRESSURE SENDER TERM. (10-32)
    NUT, WATER SENDER/OIL PRESSURE SENDER TERM. (10-32)
  • 20
    22-32974 ADAPTOR, OIL PRESSURE SENDER TO CYLINDER BLOCK
    ADAPTOR, OIL PRESSURE SENDER TO CYLINDER BLOCK
  • 21
    806490T WATER TEMPERATURE SENDER ASSEMBLY
    WATER TEMPERATURE SENDER ASSEMBLY
  • 22
    89-853654A1 STARTER SOLENOID
    STARTER SOLENOID
  • 23
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 24
    11-68292 NUT, STARTER SOLENOID TERMINAL (5/16")
    NUT, STARTER SOLENOID TERMINAL (5/16")
  • 25
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 26
    11-68219 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 27
    10-69028 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (3/4")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (3/4")
  • 29
    11-826709109 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
  • 30
    84-94227A2 RESISTANCE WIRE KIT
    RESISTANCE WIRE KIT
